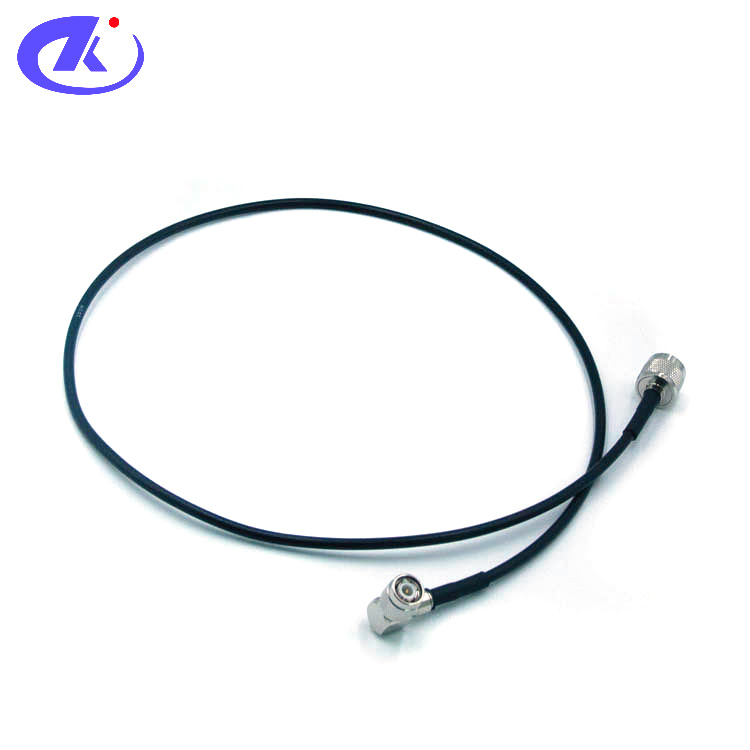

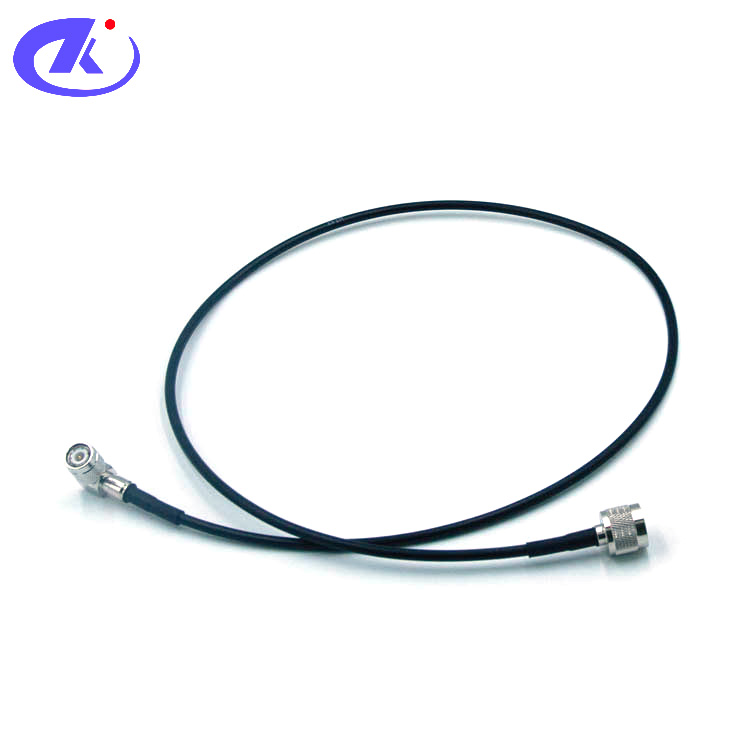

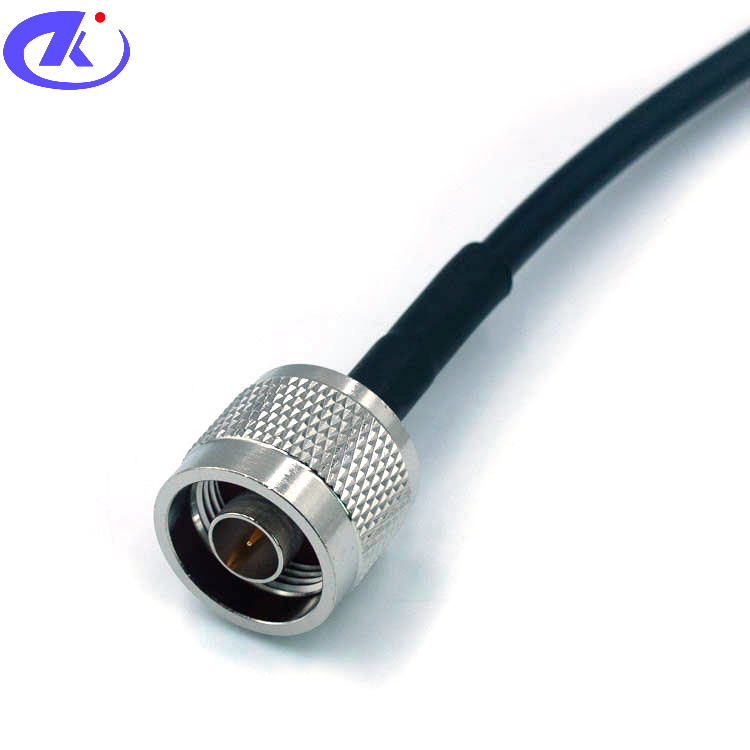

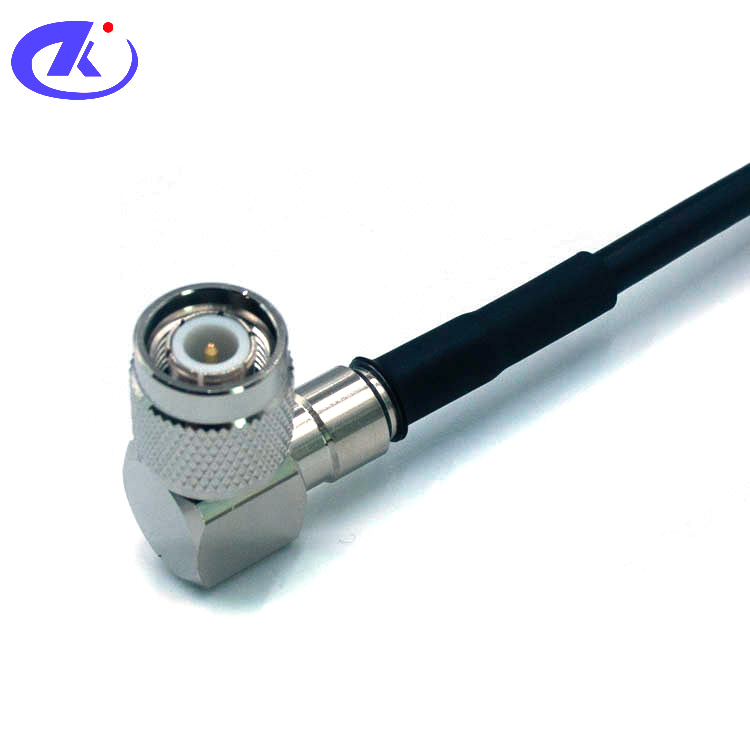

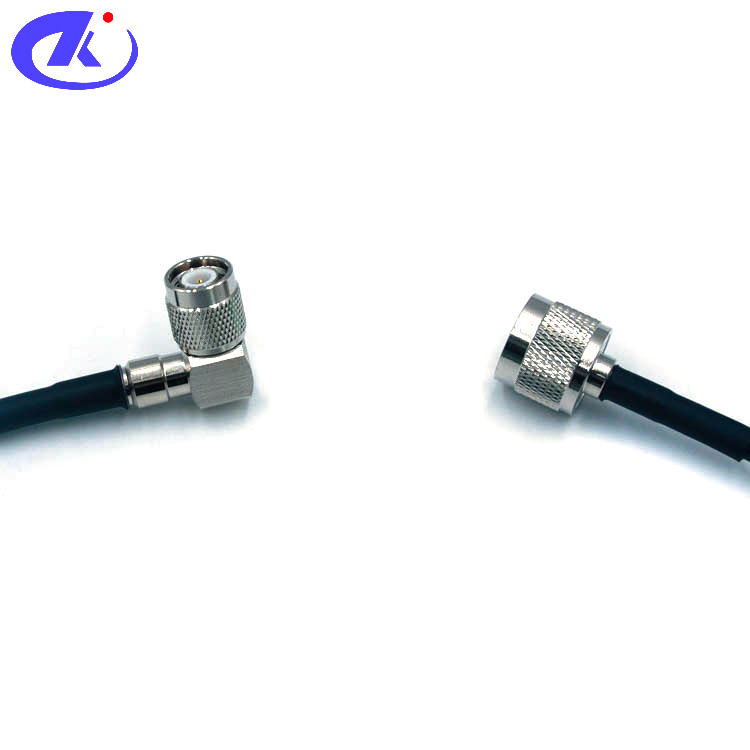

RG58 Jumper Cable, N Male straight to TNC Male R/A,1m (N-C-J58-1-TNC-C-JW58-2-1m)

SPECIFICATION

RG58 Jumper Cable, N Male straight to TNC Male R/A,1m

(N-C-J58-1-TNC-C-JW58-2-1m)

Interface

According to：IEC 60169-16/ IEC 60169-17

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.3

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance ：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof ：IP67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
