4.3/10

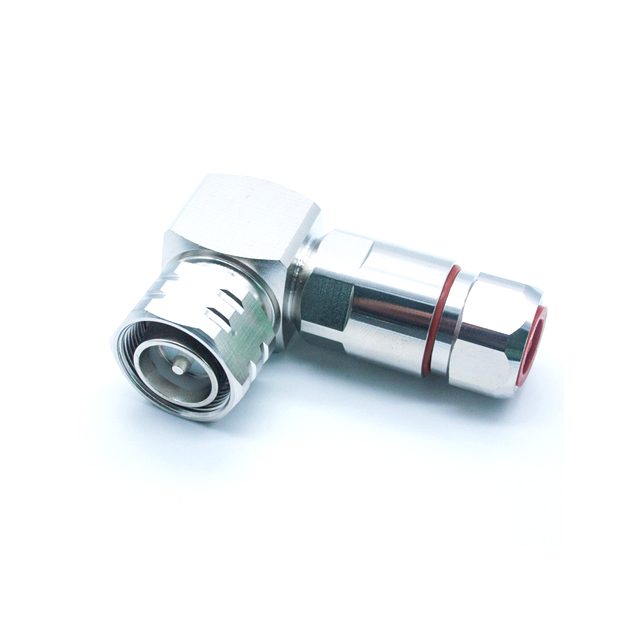

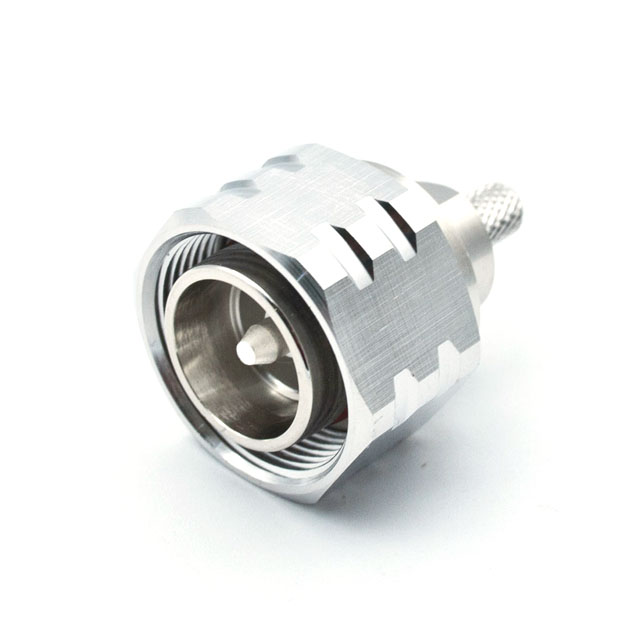

4.3-10 connector system is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna. The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components. Despite their size, the connectors guarantee excellent return loss and passive inter-modulation performance (PIM) levels.

Three different coupling mechanisms of the plug connectors screw, quick-lock/push-pull and hand-screw types are mateable with all jack connectors. All of the 4.3-10 connectors meet the requirements of IP68 and, because of the excellent properties of materials used, are suitable for temperatures ranging from -40°C up to +85°C. Customized connector designs for use at higher temperatures are also possible on demand .





Standards:IEC61169-54

Electrical Characteristics


Contact resistance inner conductor:1.0 mΩ

Contact resistance outer conductor:1.0 mΩ

Insulation resistance: 5.0 GΩ

Voltage proof:2.5KV/50Hz

Impedance:50Ω

Passive inter-modulation:-166dBc@2 x 43 dBm

Return loss:26.4 dB@3 GHz; 20.8dB@/6 GHz

Working voltage:1.8KV/50Hz

Frequency range up to:12GHz

Mechanical Characteristics


Recommended coupling torque:5-10Nm

Durability (mating cycles):500

Material: spring contacts:Brass

Material: outer conductor:Brass

Material: other metal parts:Brass

Material: insulators:PTFE

Material: gaskets:Silicone

Plating: Inner conductor:Silver

Plating: Outer conductor:Ni/Tri-alloy

Plating: Other metal parts:Ni/Tri-alloy
