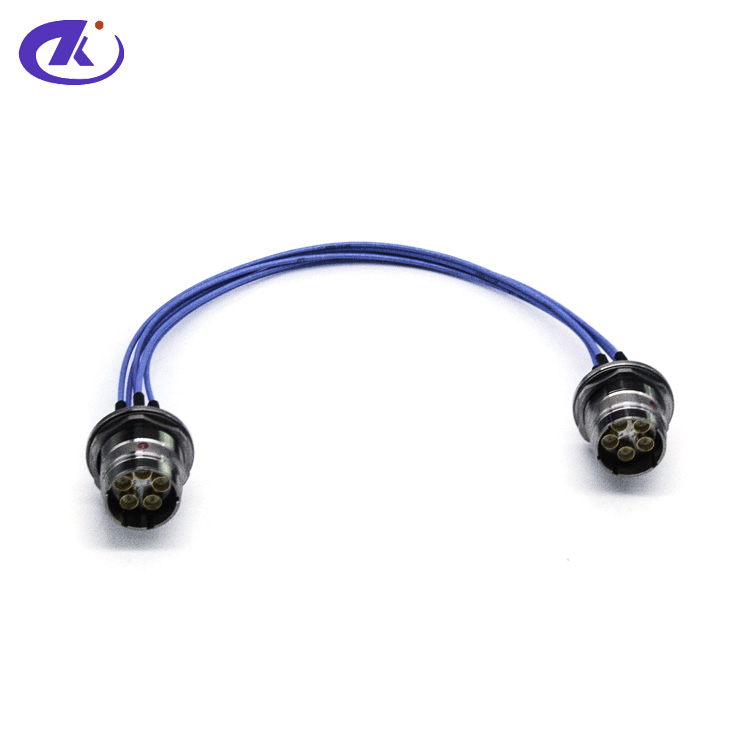

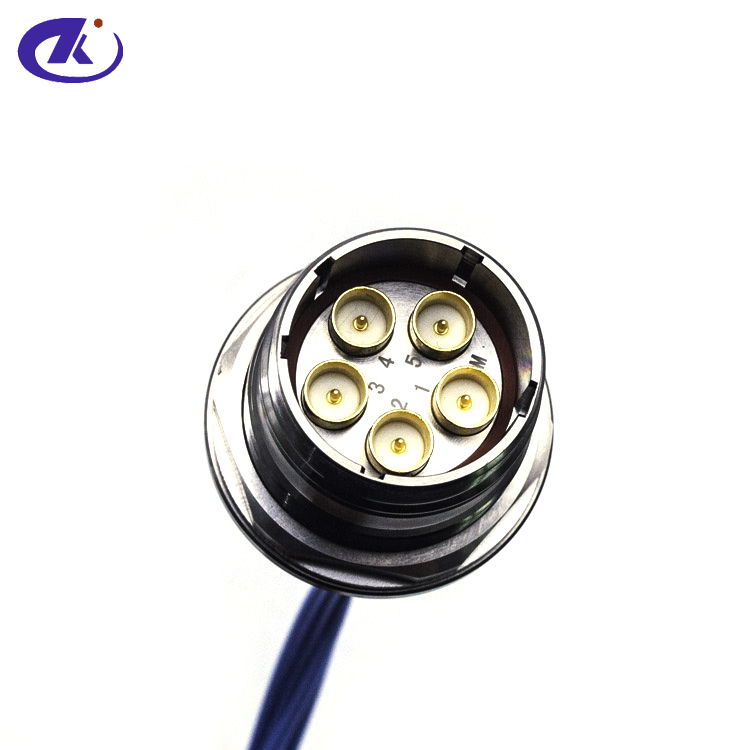

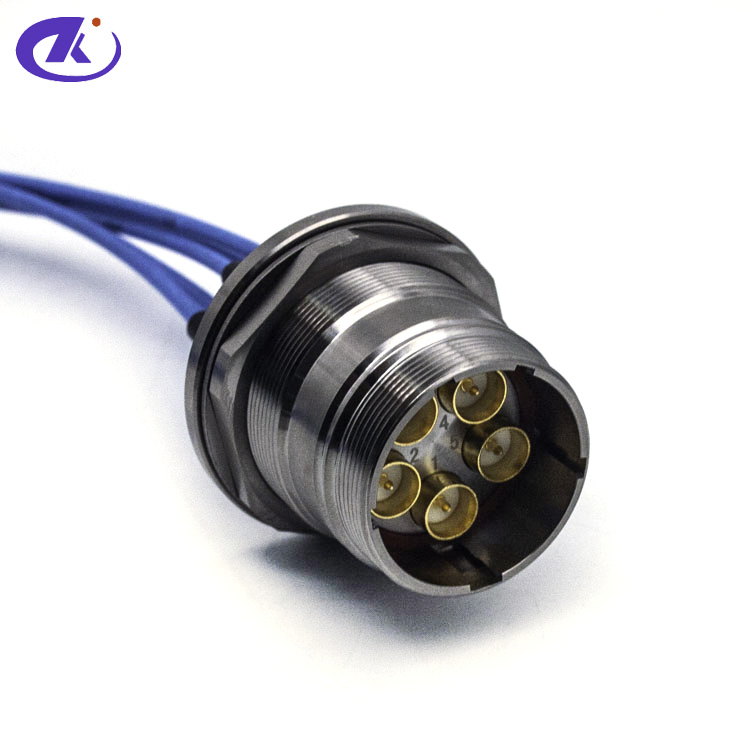

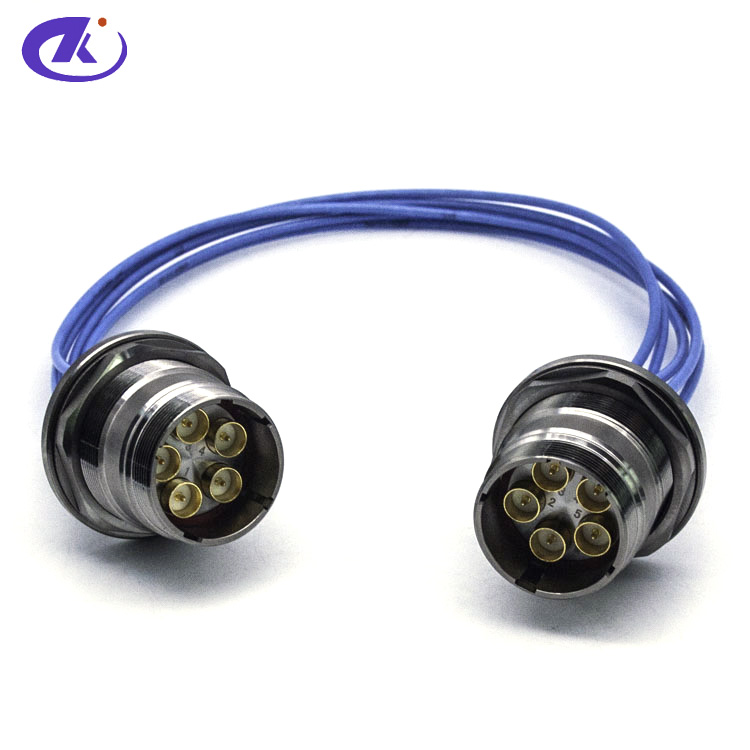

086 Jumper cable with MQ5 Jack to MQ5 Jack cluster connector in Customized Length (MQ5-J086-3-MQ5-J086-3-Lm)

086 Jumper cable with MQ5 Jack to MQ5 Jack cluster connector in Customized Length

(MQ5-J086-3-MQ5-J086-3-Lm)

Interface

According to:IEC63138-3

Electrical

1. Characteristic Impedance:50ohm

2. Frequency Range:DC-6GHz

3. VSWR:≤ 1.35(DC-6GHz)

4. Isolation:≥90dB

5. Dielectric Resistance:≥5000MΩ

6. Dielectric Withstanding Voltage:≥1000V AC

Mechanical

1.Durability :Mating cycles ≥500

2.Material and plating:

   Body Material: Brass  Plating: Ni-Sn Alloy

   Insulator Material: PTFE

   Center Conductor Material:Brass /BeCu   Plating: Silver

Environmental

1.Temperature Range:-55℃ to +125℃

2.RoHS Compliant: Pass

3.Water tightness:IP68(1m water depth/24hours)

4.Salt-fog test:≥720h(Neutral salt spray)

Note:

All products appearance,technical performance and electroplating can be customized according to your requirements.
