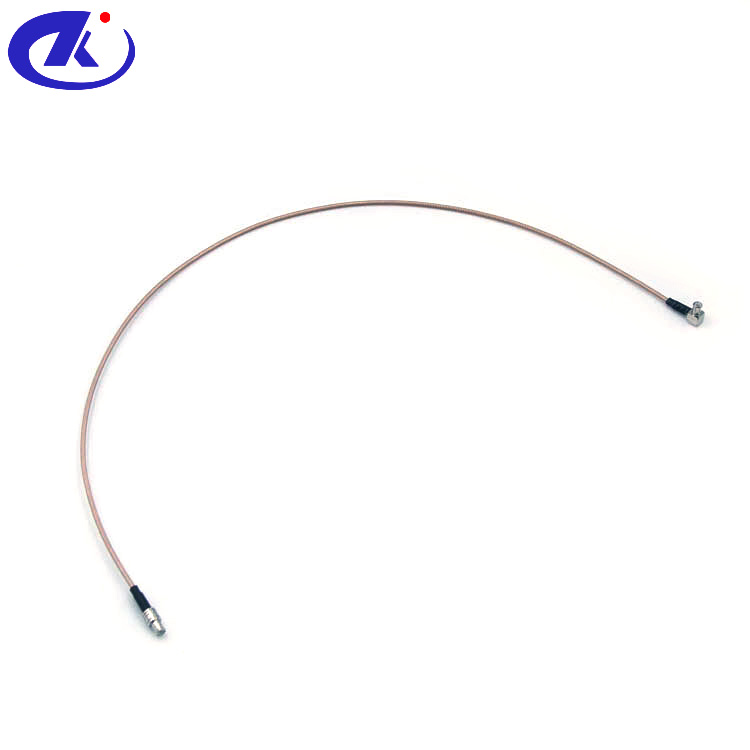

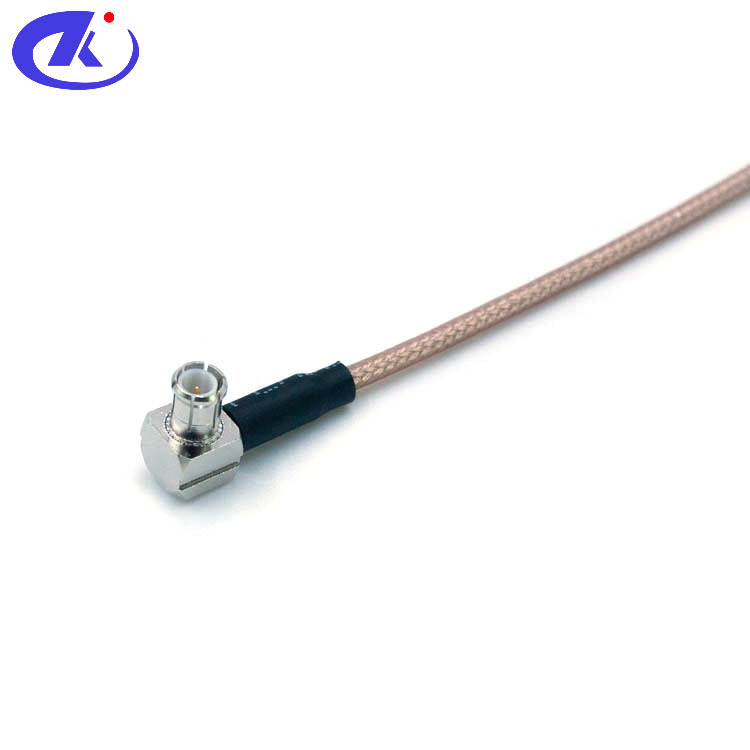

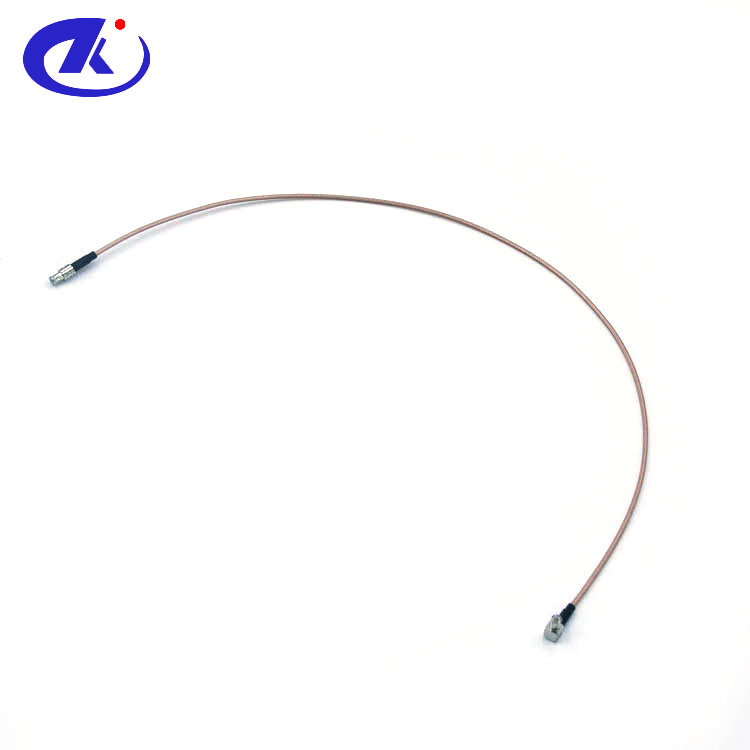

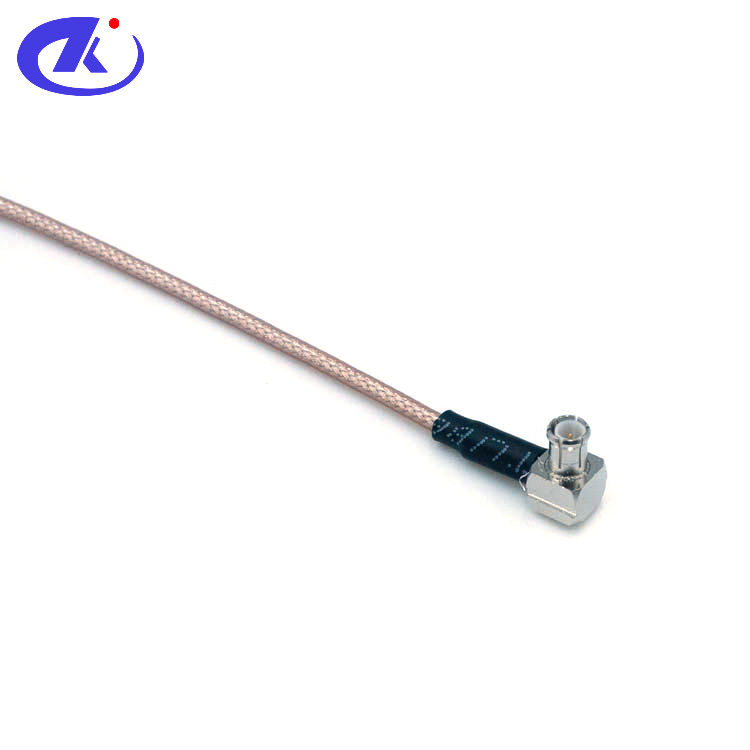

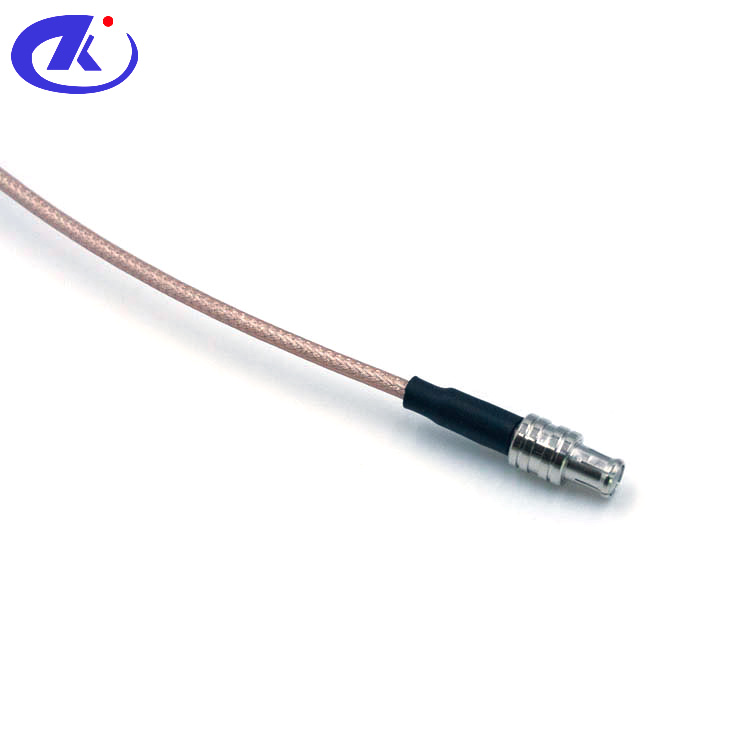

RG178 jumper cable,MCX male straight to MCX male right angle connector,40mm (MCX-C-J178/MCX-C-JW178-400mm)

SPECIFICATION

RG178 jumper cable,MCX male straight to MCX male right angle connector,40mm

(MCX-C-J178/MCX-C-JW178-400mm)

Interface

According to：IEC 60169-36

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-6GHz

VSWR： ≤1.3(DC-3GHz)

Dielectric Withstanding Voltage：≥1000V RMS,50Hz,at sea level

Dielectric Resistance： ≥5000MΩ

Contact Resistance：

Center Contact ≤5.0mΩ Outer Contact ≤2.5mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Au plating

Environmental

Temperature Range：-40℃～+85℃

RoHS ：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
