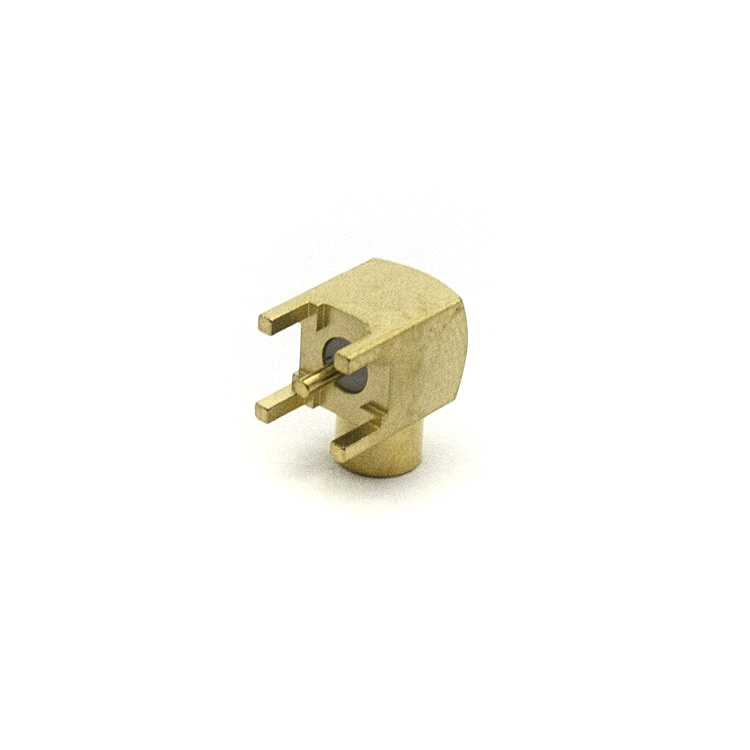

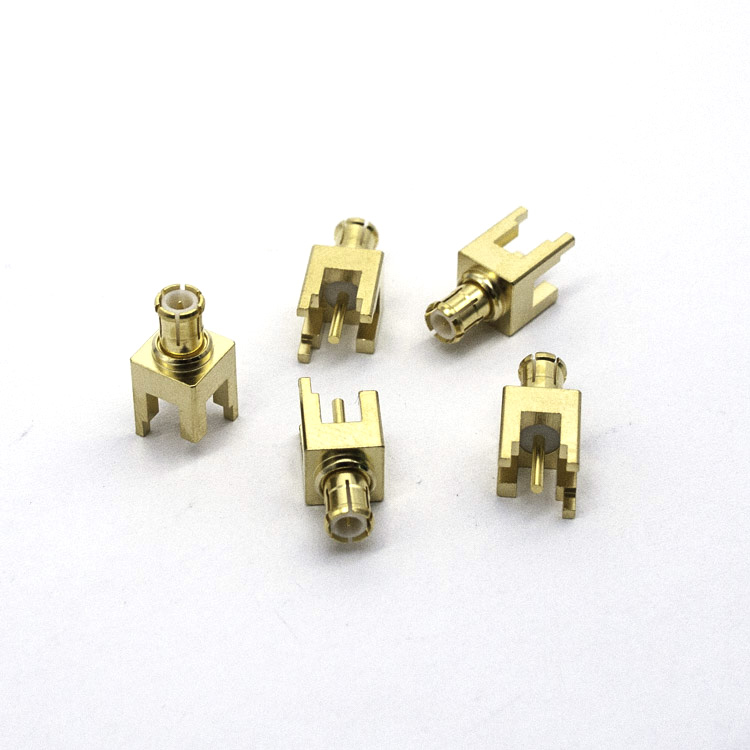

MCX micro miniature snap-on connectors offer you an excellent blend of size, weight, durability and performance for applications such as mobile and fixed telecommunications, in GPS applications and in test & measurement systems for testing instruments and apparatus. The impedance is controlled at 50 Ω. Connector designs are available for flexible, conformable and semi-rigid cables. Styles are available for mounting to printed circuit boards using thru-hole soldering, press-fit and surface mount technology (SMT).
| Standards：IEC60169-36 | |
Electrical Characteristics Contact resistance inner conductor：≤5.0 mΩ Contact resistance outer conductor：≤2.5 mΩ Insulation resistance：≥ 1.0 GΩ Voltage proof：750V/50Hz Impedance：50Ω Return loss: Straight style：≥20.83dB@DC-3GHz Return loss: Angle style：≥19.1 dB@DC-3GHz Frequency range up to：6 GHz | Mechanical Characteristics Engagement/Disengagement：14N typ. Durability (mating cycles)：≥500 Material: outer conductor：Brass Material: other metal parts：Brass Material: insulators：PTFE Plating: Inner conductor：Au Plating: Outer conductor：Au Plating: Other metal parts：Au |
