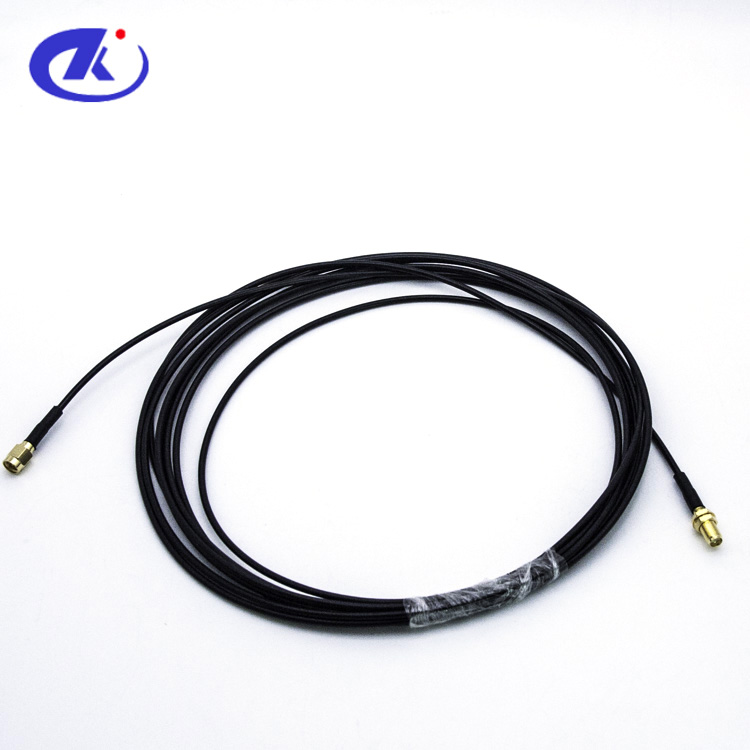

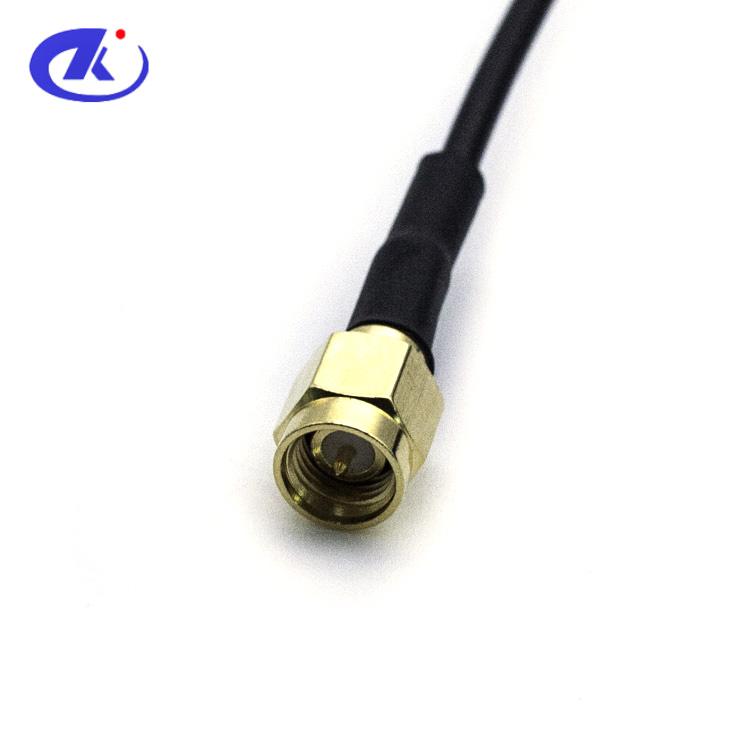

RG174 jumper cable,SMA male straight to SMA female bulkhead connector,5m (SMA-C-J1.5-1-SMA-C-KY174-1-5m )

SPECIFICATION

RG174 jumper cable,SMA male straight to SMA female bulkhead connector,5m

(SMA-C-J1.5-1-SMA-C-KY174-1-5m)

Interface

According to：IEC 60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR： ≤1.2(DC-3GHz)

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance： ≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy/Au plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：IP67

RoHS ：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
