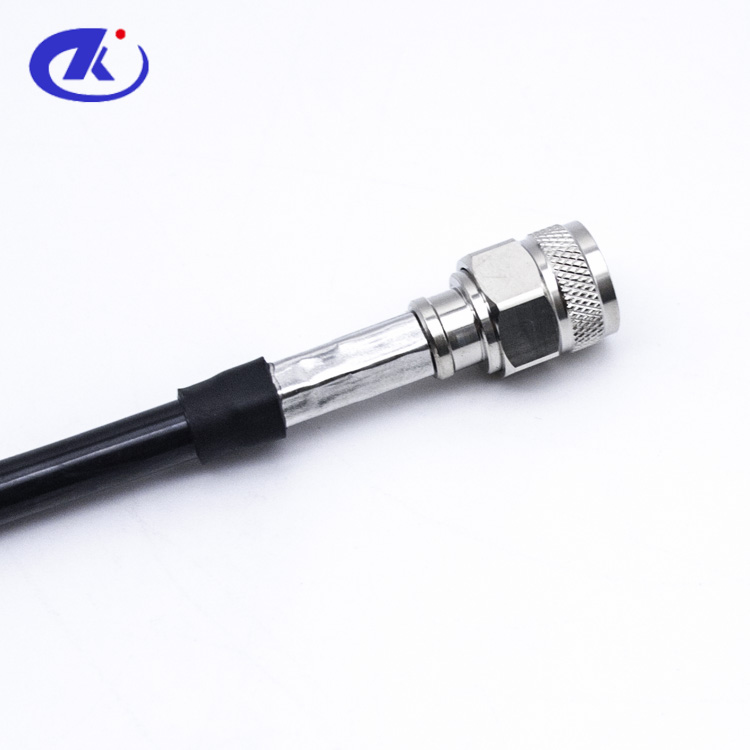

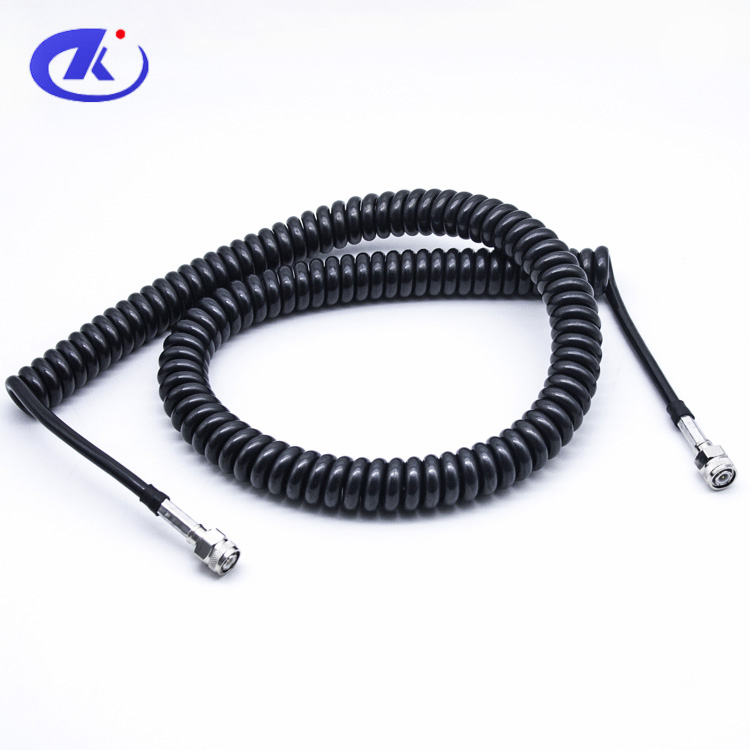

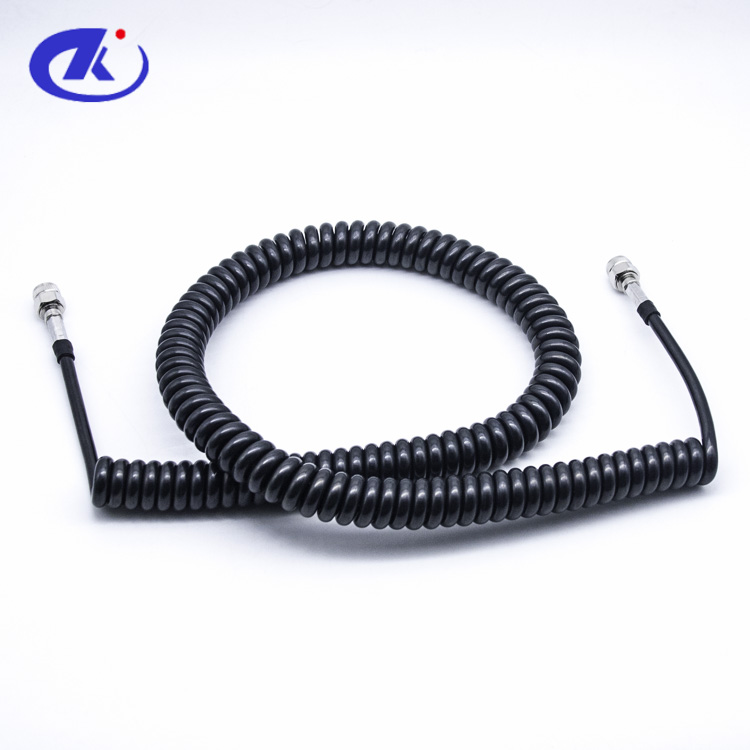

RG58, TNC Male straight to TNC Male Straight,840mm (TNC-C-J58-1-TNC-C-J58-1-840mm)

SPECIFICATION

RG58, TNC Male straight to TNC Male Straight,840mm

(TNC-C-J58-1/TNC-C-J58-1-840mm)

Interface

According to：IEC 60169-17

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-6GHz

VSWR：≤1.4

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance ：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy/Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Ag/Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof ：IP67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
