1/4” SCF

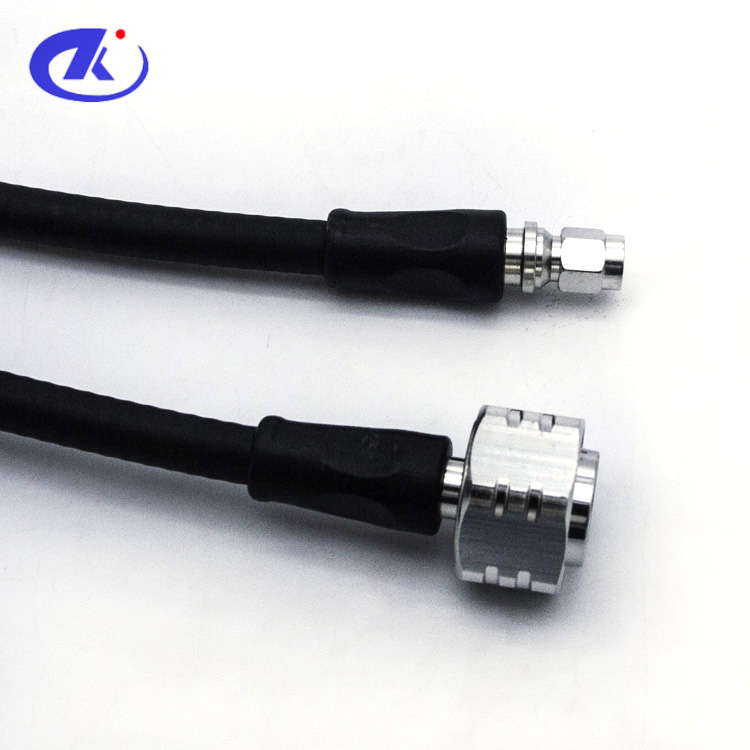

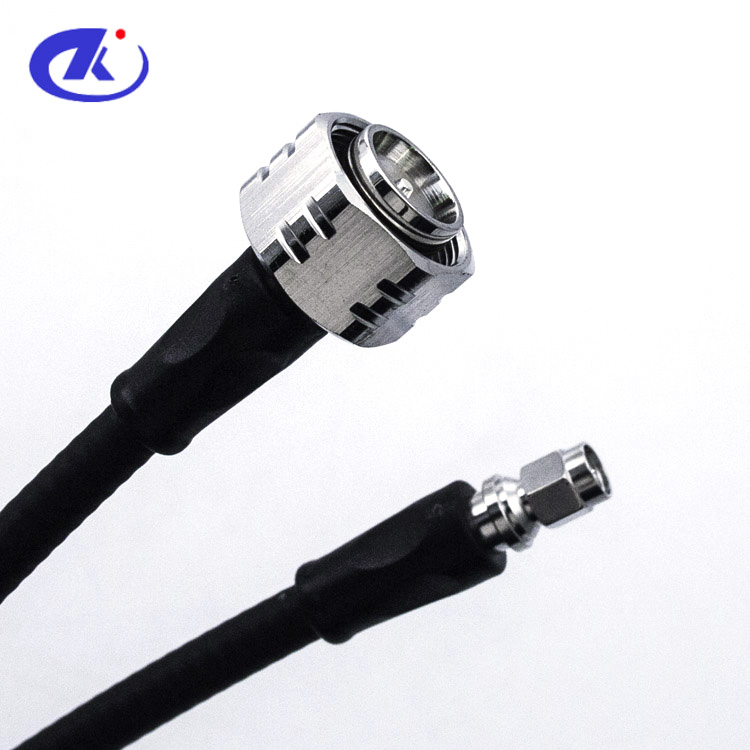

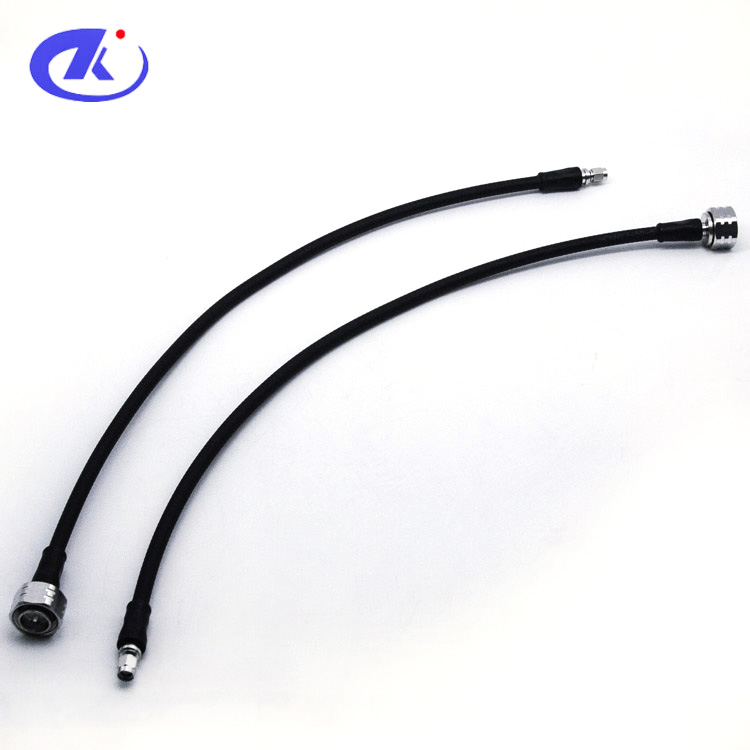

1/4" Superflex Jumper, 4.3/10 Male straight to SMA Male straight,500mm

1/4" Superflex Jumper, 4.3/10 Male straight to SMA Male straight,500mm

SPECIFICATION



1/4" Superflex Jumper, 4.3/10 Male straight to SMA Male straight,500mm

( 4.3/10-H-J1/4S-6-SMA-H-J1/4S-1-500mm )





Interface

According to:IEC 61169-54/IEC 61169-15

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-3.8GHz

VSWR:1.12

Dielectric Withstanding Voltage:2500V RMS,50Hz,at sea level

Dielectric Resistance:5000MΩ

Contact Resistance:Center Contact 1.0mΩ Outer Contact 1.0mΩ

Durability:Mating cycles 500

Material and plating

Body:Brass, Tri-Alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor Bronze,Ag plating





Environmental

Temperature Range:-40℃+85℃

Waterproof(1m water depth, 24hours):IP68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
