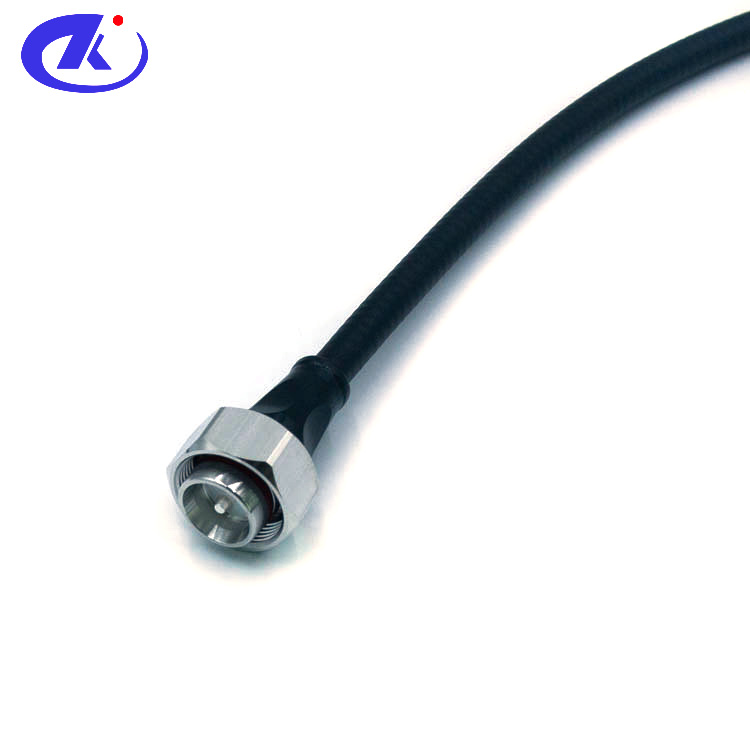

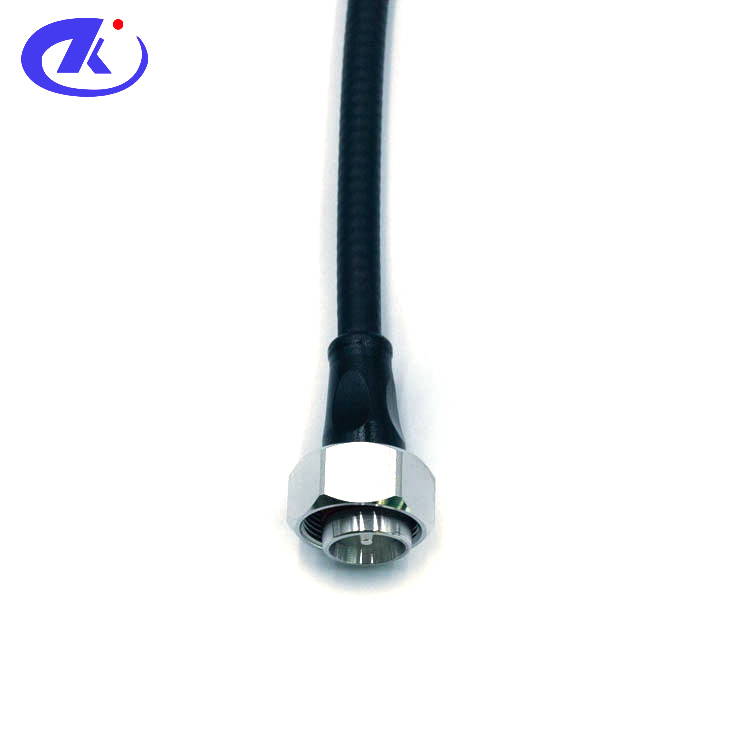

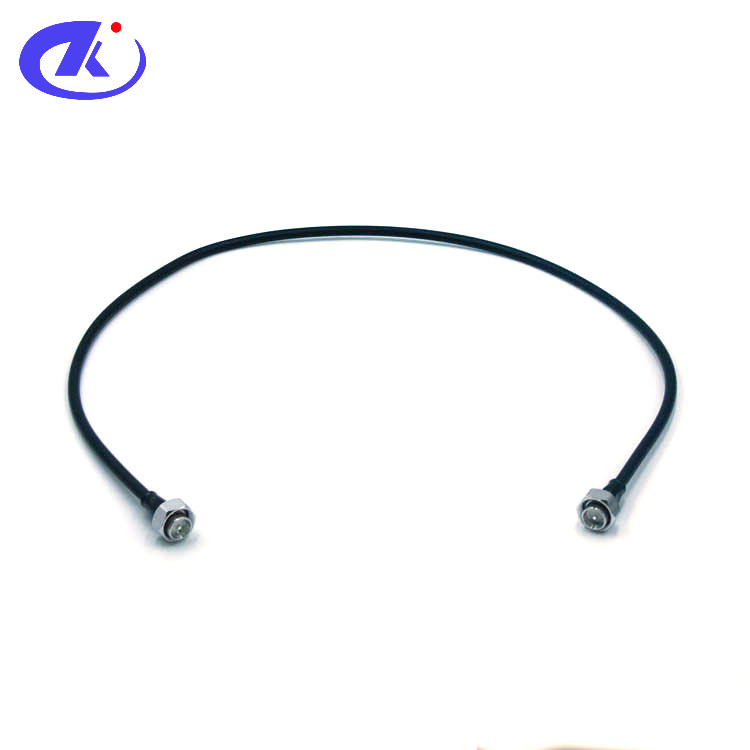

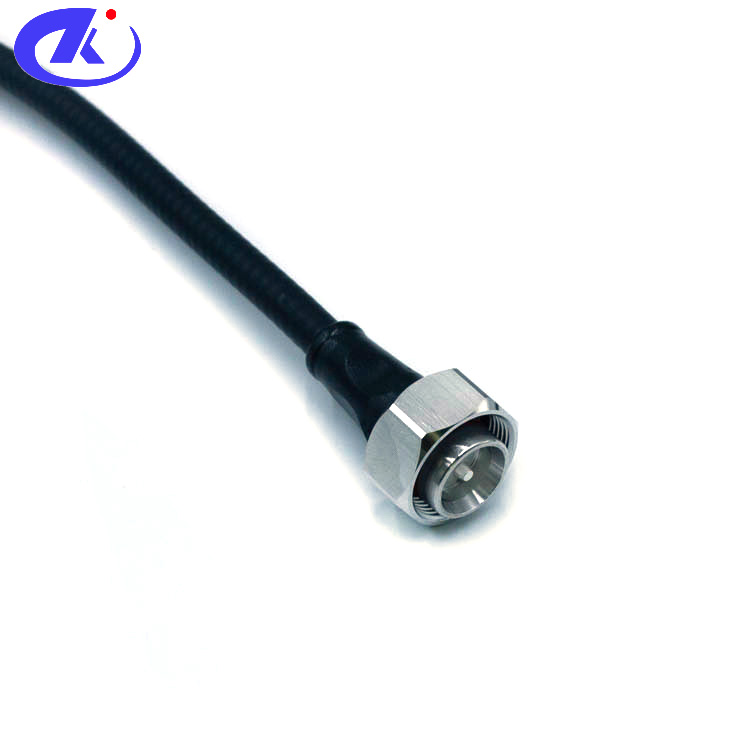

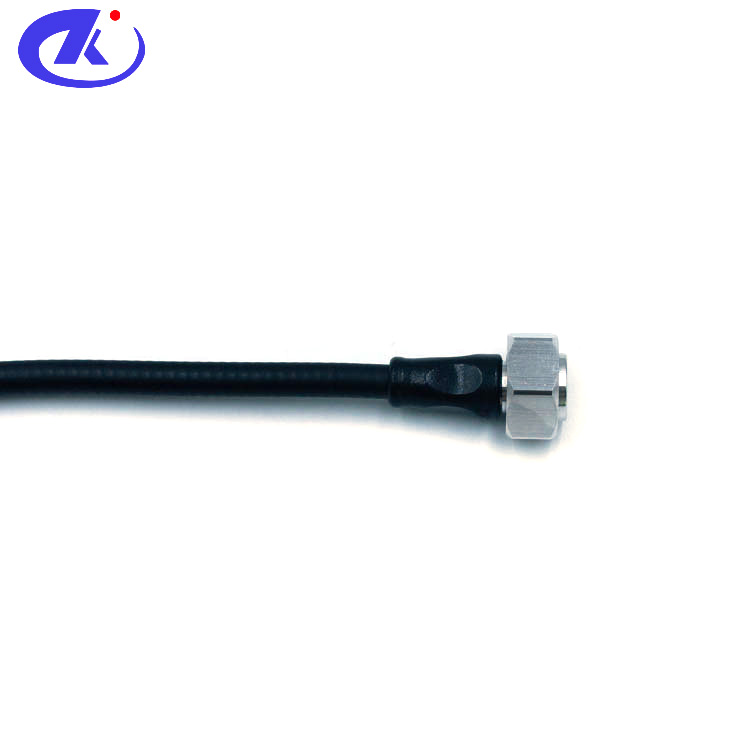

1/4" superflex jumper cable, 4.3/10 male to 4.3/10 male connector ,1m (4.3-10-H-J1-4S-8-4.3-10-H-J1-4S-8-1m)

1/4" superflex jumper cable, 4.3/10 male to 4.3/10 male connector ,1m

(4.3-10-H-J1-4S-8-4.3-10-H-J1-4S-8-1m)

Interface

According to:IEC61169-54

Electrical

1. Characteristic Impedance:50ohm

2. Frequency Range:DC-3.8GHz

3. VSWR:≤ 1.15

4. PIM:≤-160dBc

5. Isolation:≥90dB

6. Dielectric Resistance:≥5000MΩ

7. Dielectric Withstanding Voltage:≥1000V AC

Mechanical

1.Durability :Mating cycles ≥500

2.Material and plating:

   Body Material: Brass  Plating: Ni

   Insulator Material: PTFE

   Center Conductor Material:Brass  Plating: Silver

Environmental

1.Temperature Range:-55℃ to +125℃

2.RoHS Compliant: Pass

3.Water tightness:IP68(1m water depth/24hours)

4.Salt-fog test:≥720h(Neutral salt spray)

Note:

All products appearance,technical performance and electroplating can be customized according to your requirements.
