SPECIFICATION

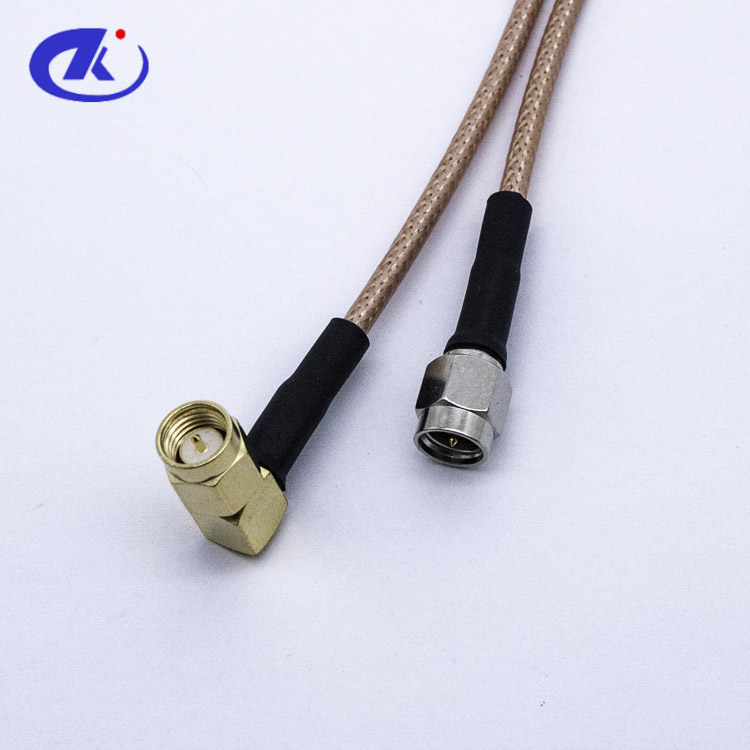

RG316 jumper cable,SMA male straight to SMA male right angle connector,170mm
(SMA-C-J1.5D-SMA-JWC316D-170mm)
| Interface According to：IEC 60169-15 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR： ≤1.2(DC-3GHz) Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance： ≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy/Au plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof：IP67 RoHS ：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
