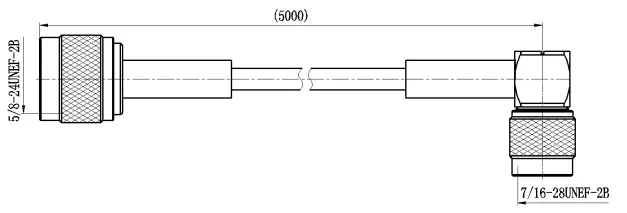

RG223, N Male straight to TNC Male R/A,5m(N-C-J5-2/TNC-C-JW223A-5m)

SPECIFICATION

RG223, N Male straight to TNC Male R/A,5m

(N-C-J5-2/TNC-C-JW223A-5m)

Interface

According to：IEC 60169-16/ IEC 60169-17

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-4GHz

VSWR：≤1.15

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance ：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy/Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Ag/Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof ：IP67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
