SPECIFICATION

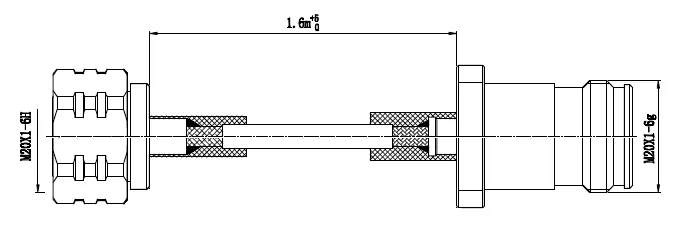

RG141, 4.3/10 Male straight to 4.3/10 Female bulkhead
(4.3/10-J141/4.3/10-KF141-6-1.6m)
| Interface According to：IEC 61169-54 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-6GHz VSWR：≤1.2(DC-3GHz), Dielectric Withstanding Voltage： ≥1000V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy/Au plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
