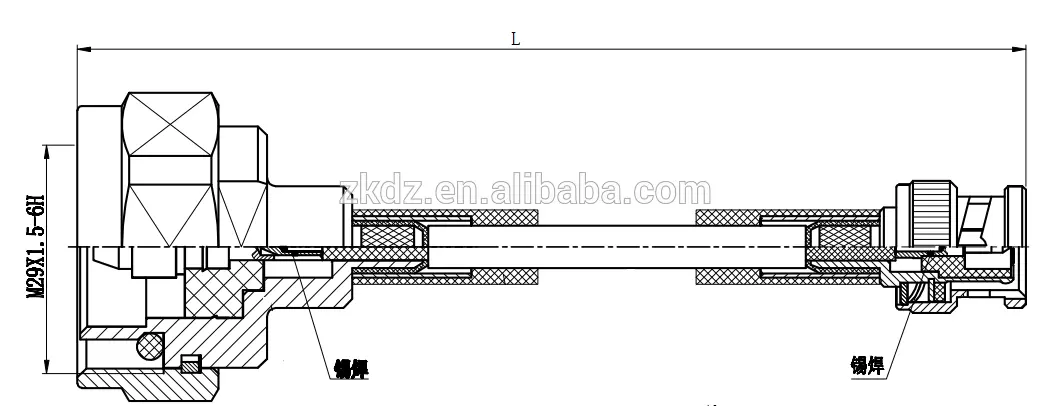

RG142, 7/16 Male straight to BNC Male straight(7/16-C-J142/BNC-C-J5-1-1m)

SPECIFICATION

RG142, 7/16 Male straight to BNC Male straight

(7/16-C-J142/BNC-C-J5-1-1m)

Interface

According to：IEC 60169-4/ 60169-8

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.25(DC-3GHz),

Dielectric Withstanding Voltage：≥1000V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤3.0mΩ Outer Contact ≤2.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy/Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：IP67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
