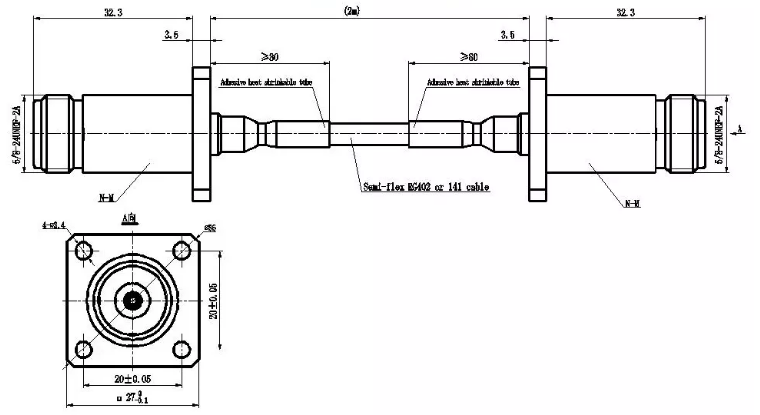

RG402 RG141 jumper cable assembled with N male connector both side in customized length(N-KF402-3-N-KF402-3-2m)

SPECIFICATION

RG402 RG141 jumper cable assembled with N male connector both side in customized length

(N-KF402-3-N-KF402-3-2m)

Interface

According to：IEC 60169-16

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR： ≤1.1(DC-3GHz)

PIM3： ≤-158dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance： ≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：IP68

RoHS ：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
