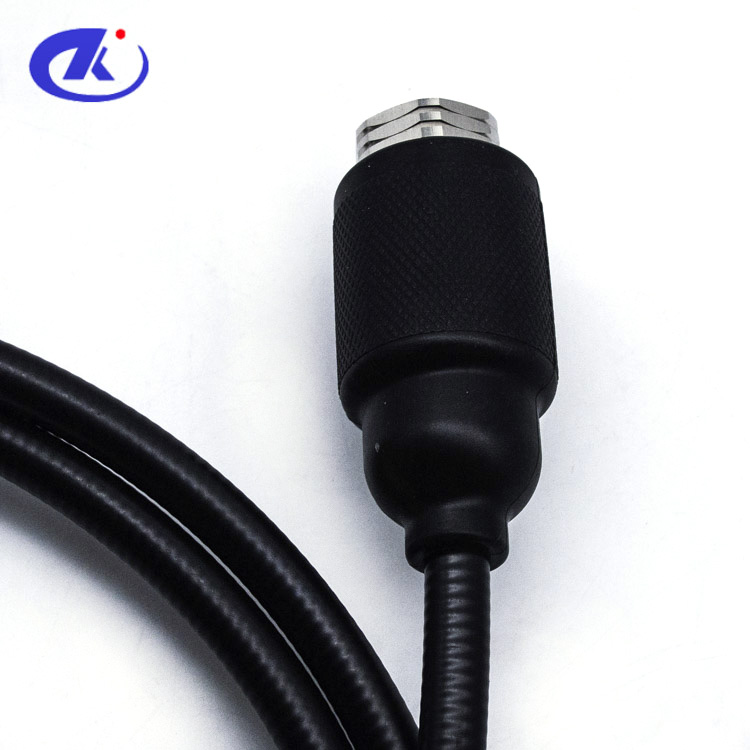

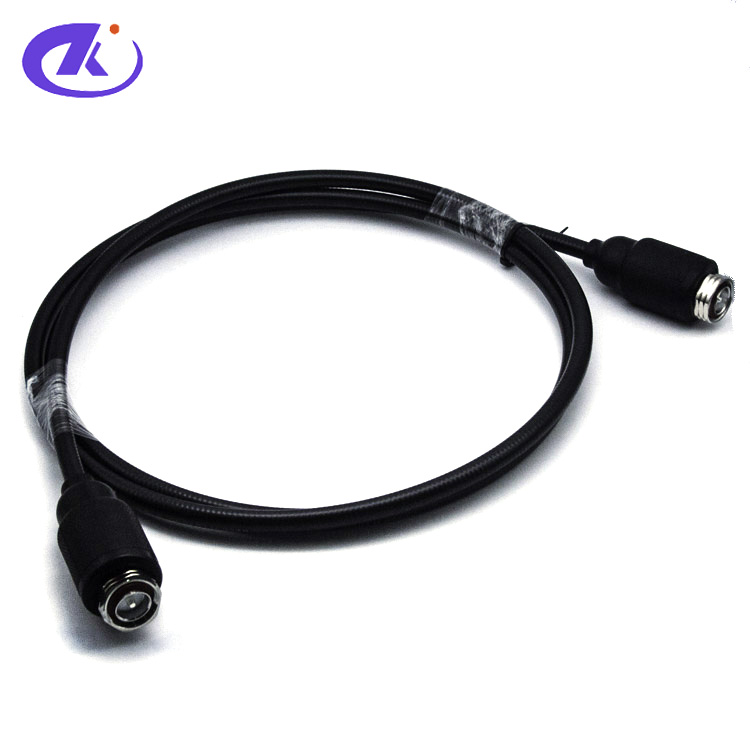

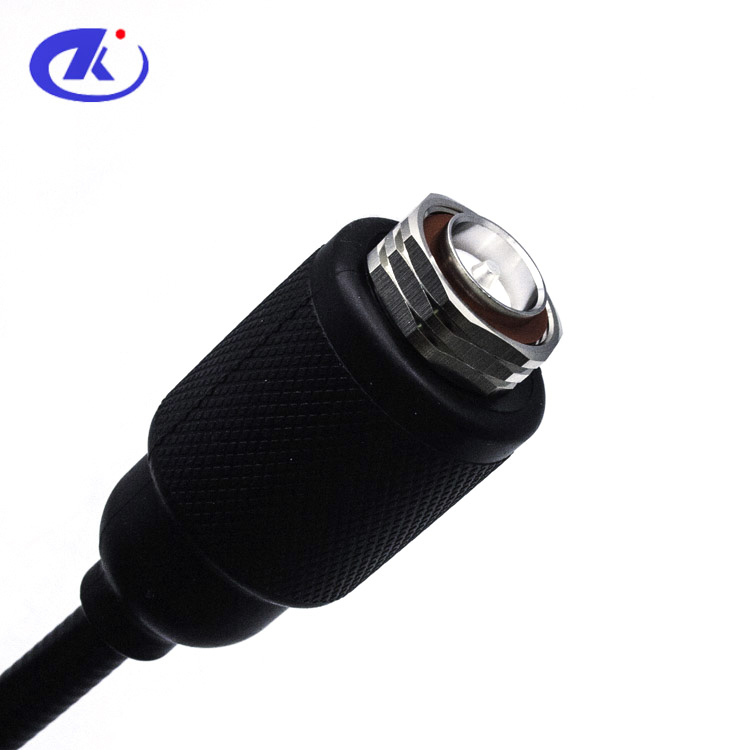

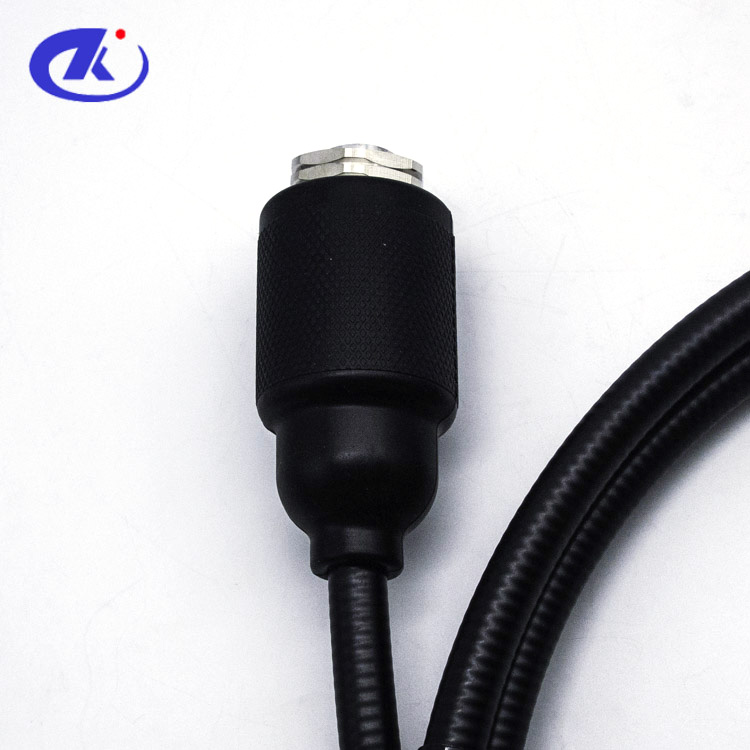

1/2" Superflex Jumper with waterproof rubber boots, 7/16 DIN Male to 7/16 DIN Male, 3m (7/16-H-J1/2S-10-7/16-H-J1/2S-10-3m-21 )

SPECIFICATION

1/2" Superflex Jumper with waterproof rubber boots, 7/16 DIN Male to 7/16 DIN Male

(7/16-H-J1/2S-10-7/16-H-J1/2S-10-3m-21 )

Interface

According to：IEC 60169-4

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.12(DC-3GHz),

PIM3：≤-160dBc

Dielectric Withstanding Voltage：≥4000V RMS,50Hz,at sea level

Dielectric Resistance：≥10000MΩ

Contact Resistance：Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
