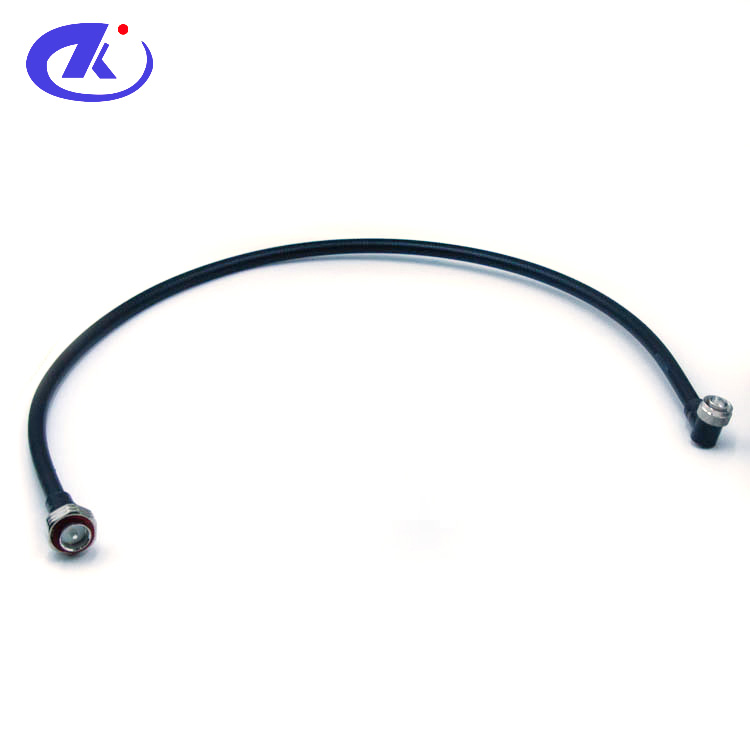

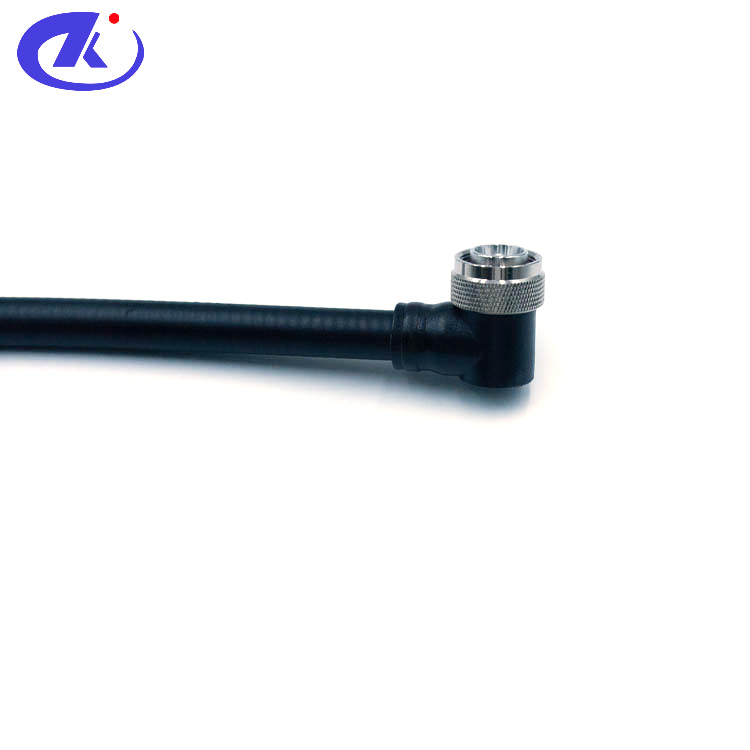

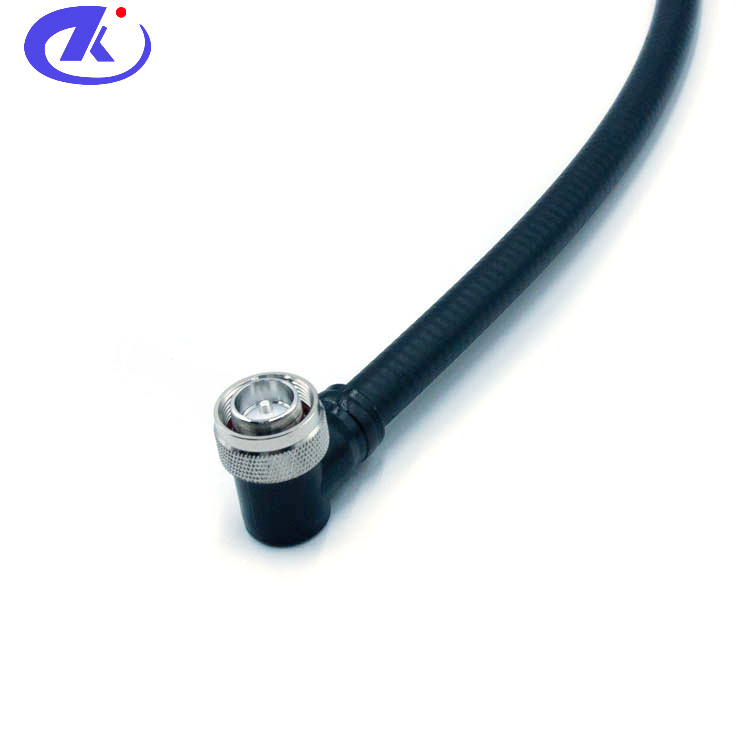

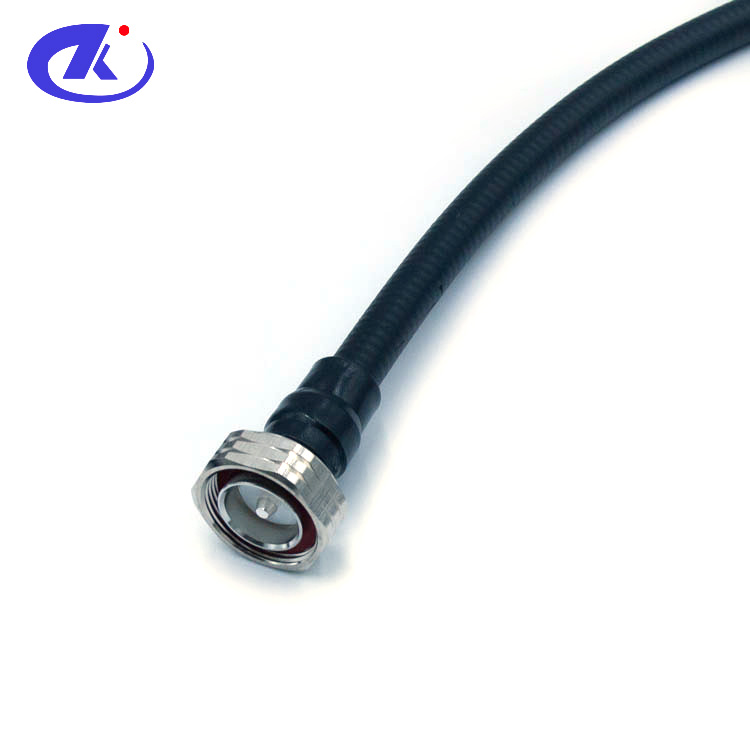

1/2" Superflex Jumper, Handsrew 4.3/10 Male Right to 7/16 Male Straight,1m (7-16-H-J1-2S-10-H4.3-10-H-JW1-2S-1-1m)

SPECIFICATION

1/2" Superflex Jumper, Handsrew 4.3/10 Male Right to 7/16 Male Straight,1m

(7-16-H-J1-2S-10-H4.3-10-H-JW1-2S-1-1m)

Interface

According to：IEC 61169-54,IEC 60169-4

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.1(DC-3GHz),

PIM3：≤-160dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥10000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥100

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
