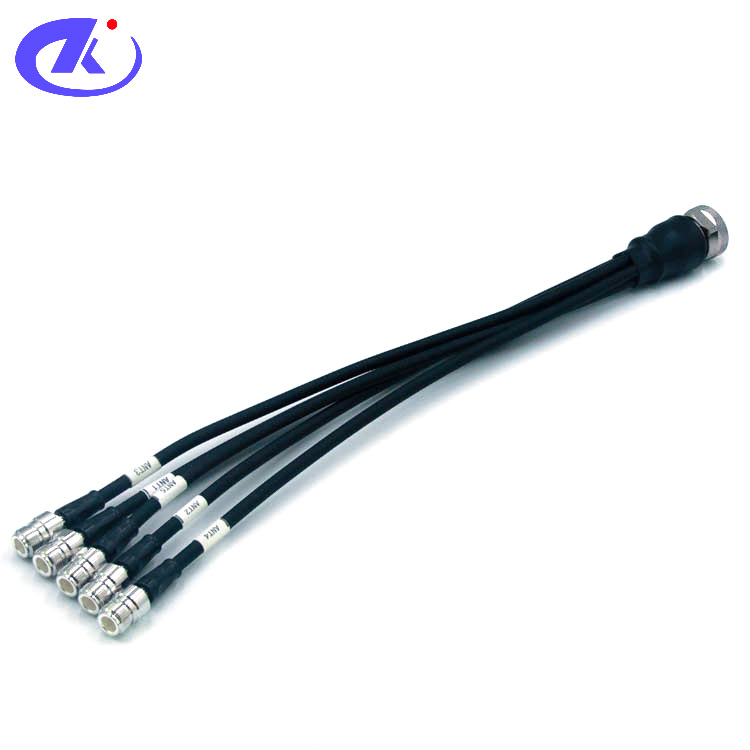

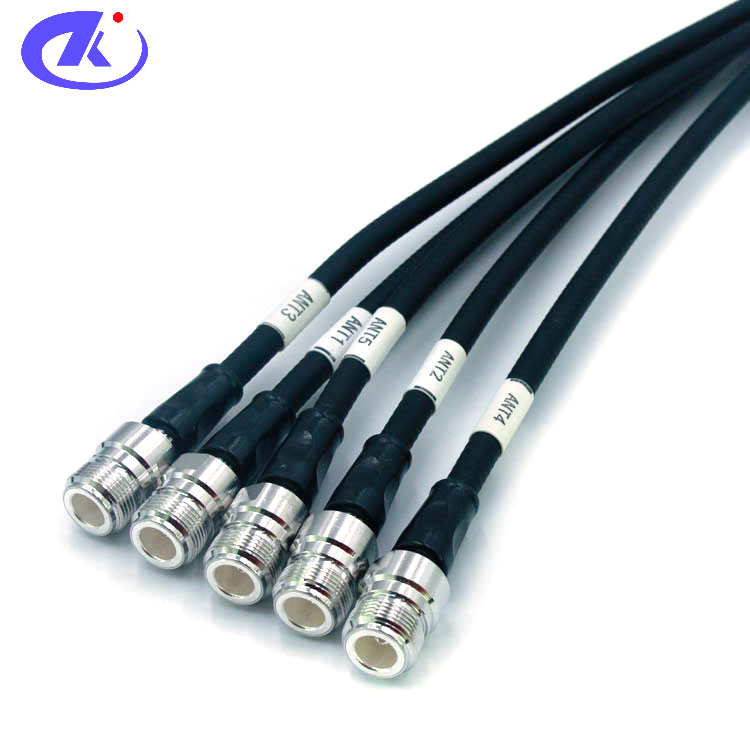

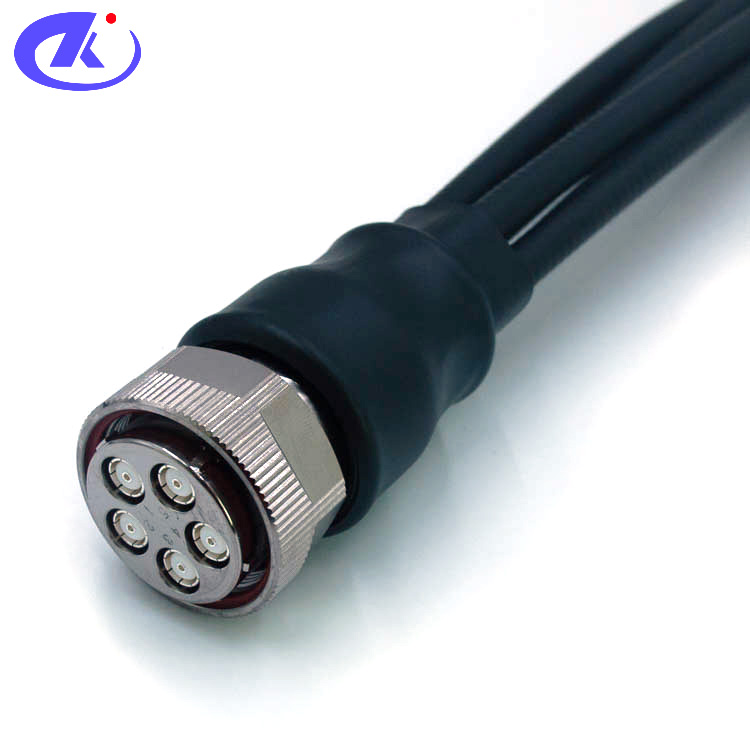

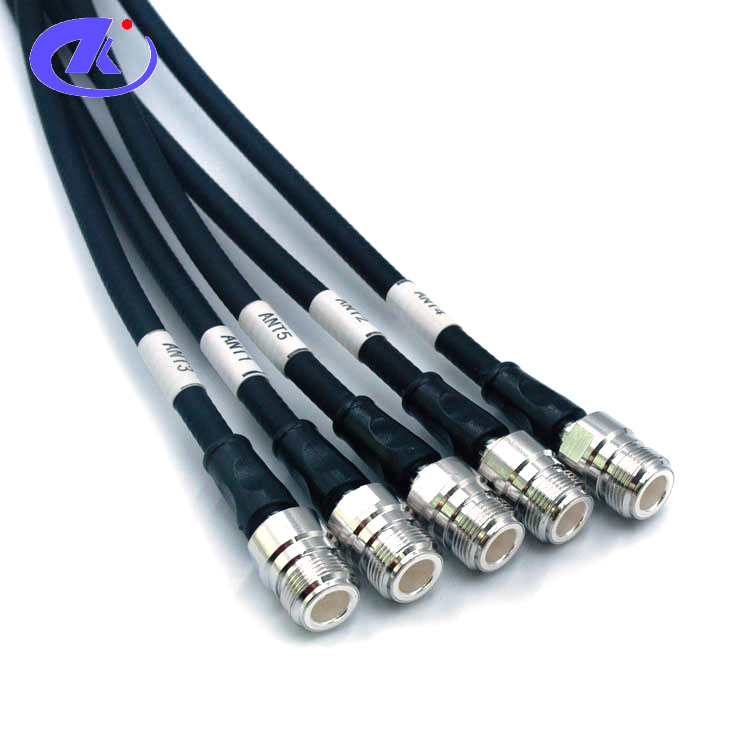

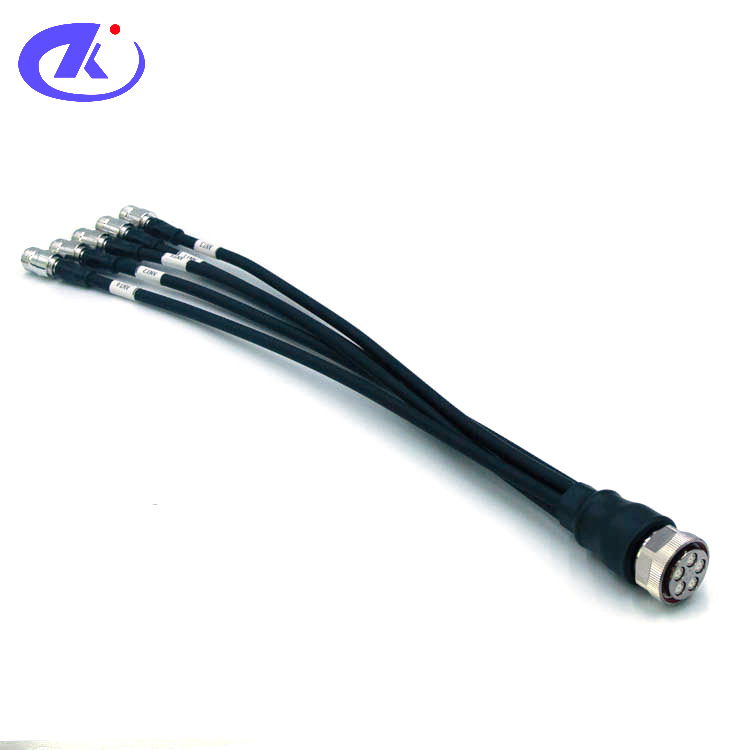

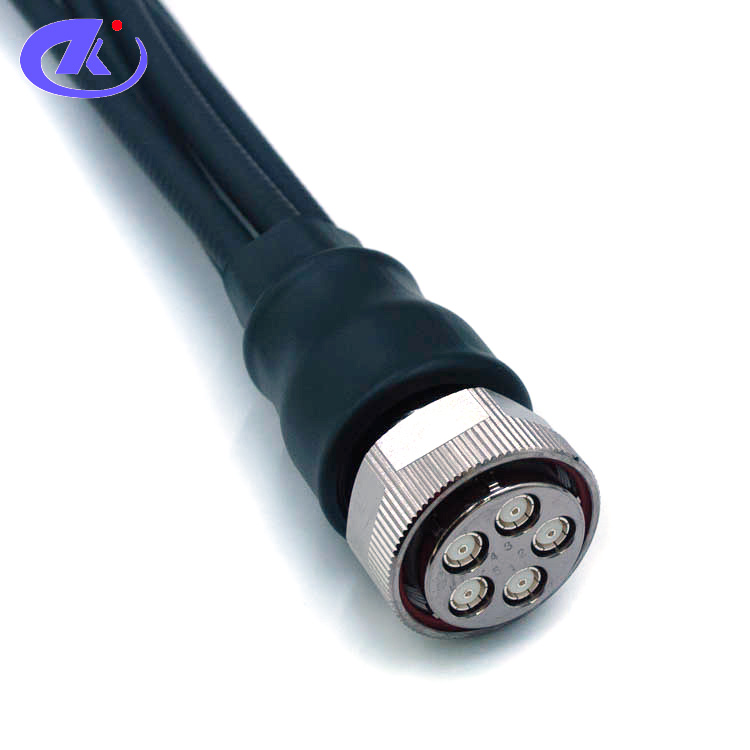

Cluster Jumper MQ5 jack cluster connector to N female connector 1/4" superflex cable,0.5m
(MQ5-K1-4S-3-N-H-K1-4S-6-500mm)
Interface
According to:IEC60169-4 / IEC63138-3
Electrical
1. Characteristic Impedance:50ohm
2. Frequency Range:DC-6GHz
3. VSWR:≤ 1.10(0-2.2)GHz ≤ 1.15(2.2-2.7)GHz ≤ 1.20(2.7-4.2)GHz ≤ 1.30(4.2-6)GHz
4. PIM:≤-160dBc
5. Isolation:≥90dB
6. Dielectric Resistance:≥5000MΩ
7. Dielectric Withstanding Voltage:≥1000V AC
Mechanical
1.Durability :Mating cycles ≥500
2.Material and plating:
Body Material: Brass Plating: Ni-Sn Alloy
Insulator Material: PTFE
Center Conductor Material:Brass /BeCu Plating: Silver
Environmental
1.Temperature Range:-55℃ to +125℃
2.RoHS Compliant: Pass
3.Water tightness:IP68(1m water depth/24hours)
4.Salt-fog test:≥720h(Neutral salt spray)
Note:
All products appearance,technical performance and electroplating can be customized according to your requirements.
