SPECIFICATION

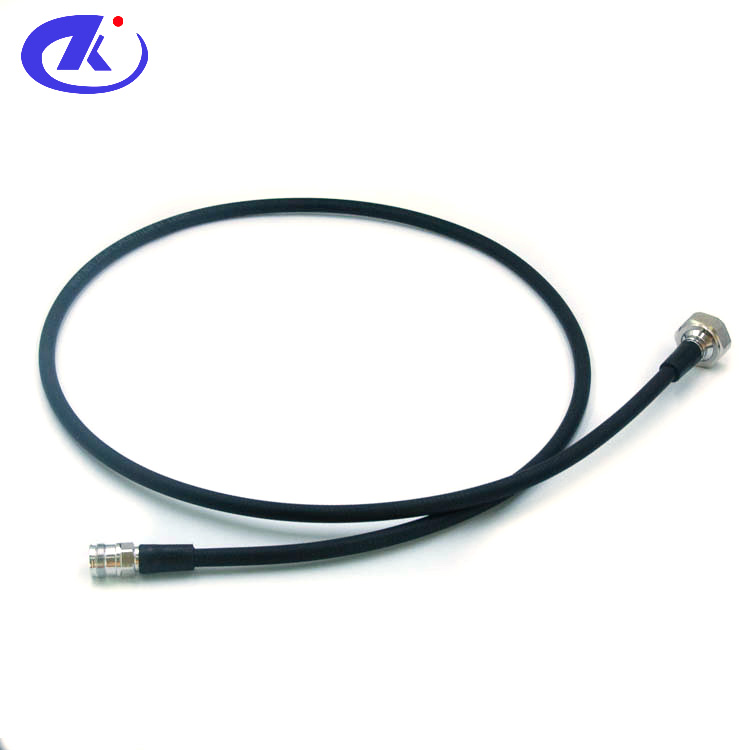

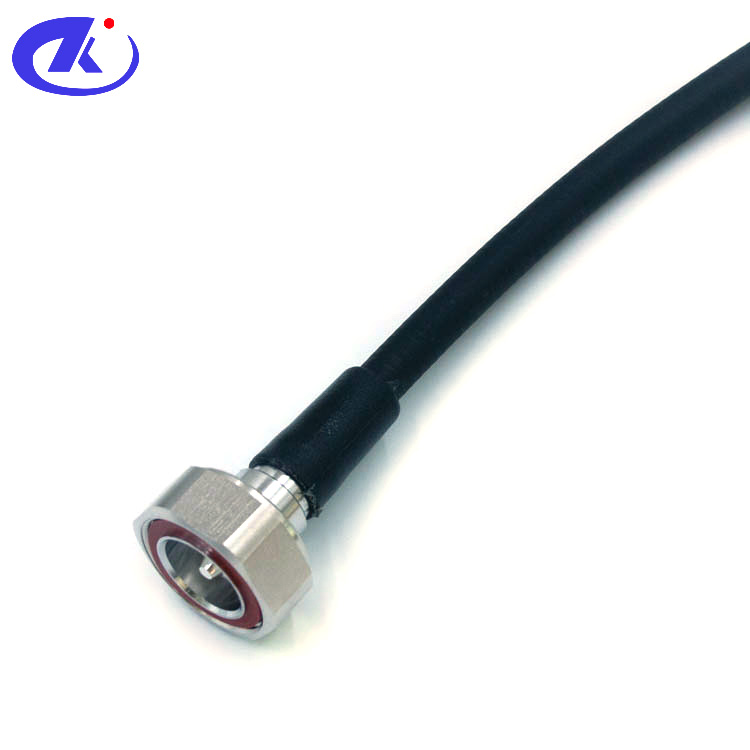

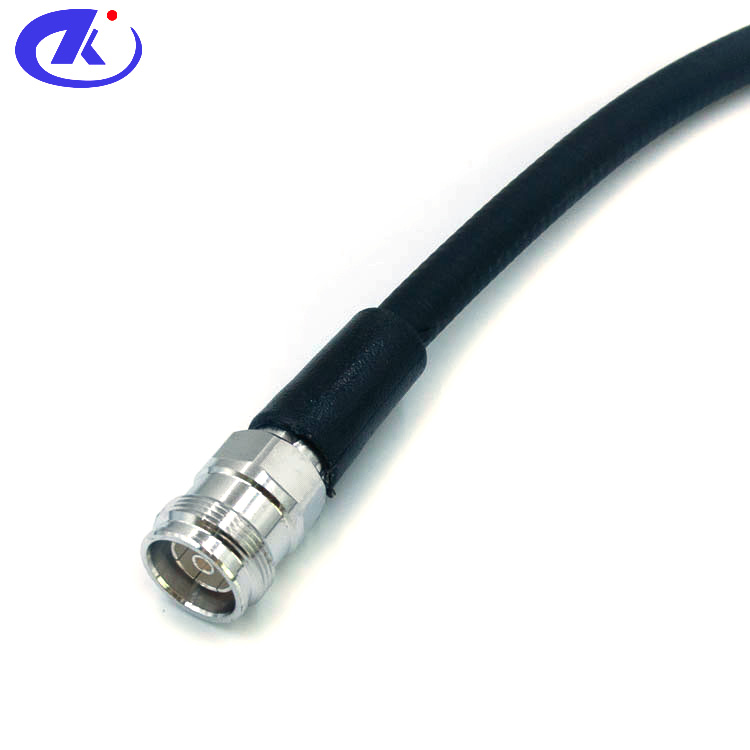

3/8" Superflex Jumper fire retardant, DIN 7/16 Male to 4.3/10 female,1.5m
(7-16-H-J3-8SR-4.3-10-H-K3-8S-1.5m Z )
Interface According to:IEC 61169-54/IEC 60169-4 | |
Electrical Performance Characteristic Impedance:50 ohm Frequency Range:DC-3GHz VSWR:≤1.15(DC-3GHz), PIM3:≤-160dBc Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level Dielectric Resistance:≥5000MΩ Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability:Mating cycles ≥500 | Material and plating Body:Brass, Tri-Alloy plating Insulator:PTFE, NATURAL Contact PIN:Phosphor Bronze,Ag plating
Environmental Temperature Range:-40℃~+85℃ Waterproof(1m water depth, 24hours):IP68 RoHS:Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements
