SPECIFICATION

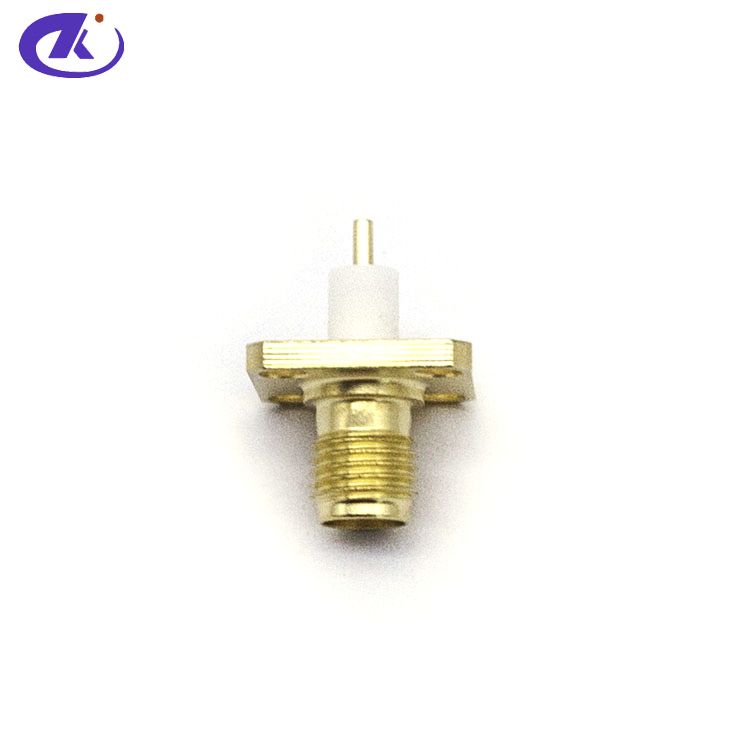

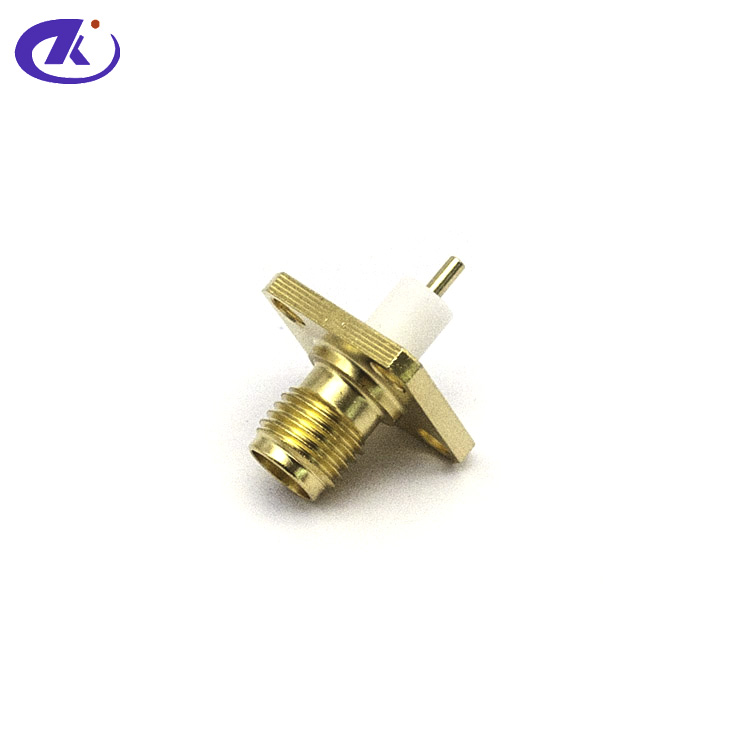

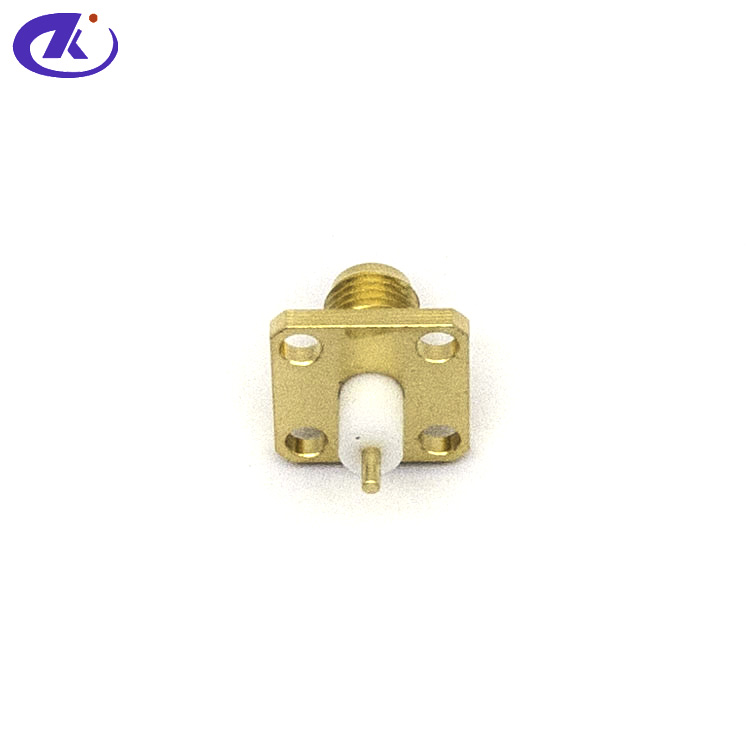

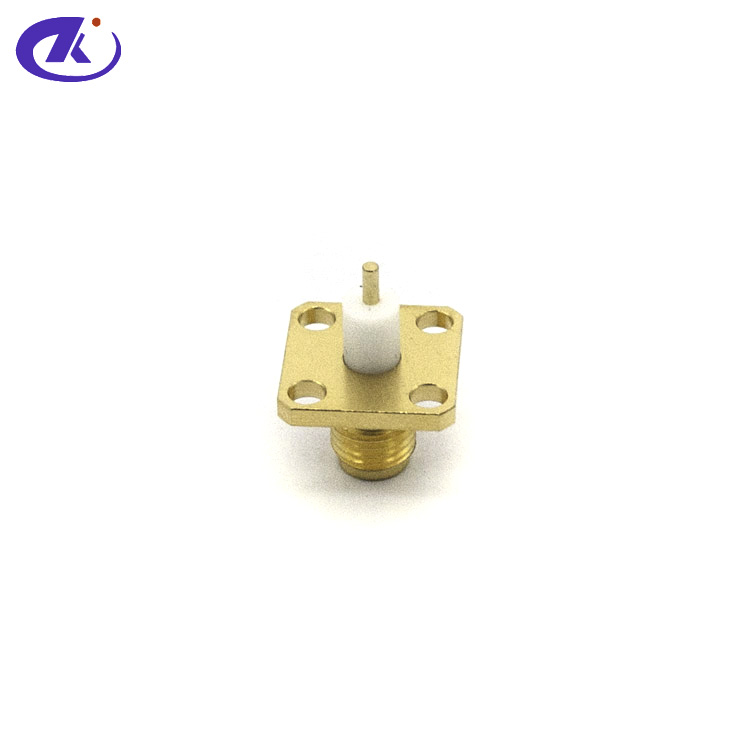

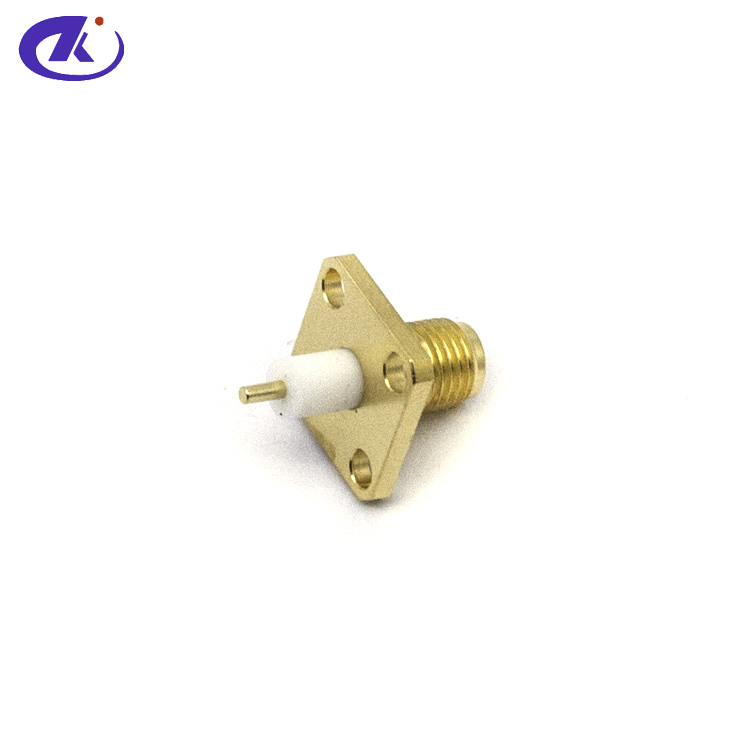

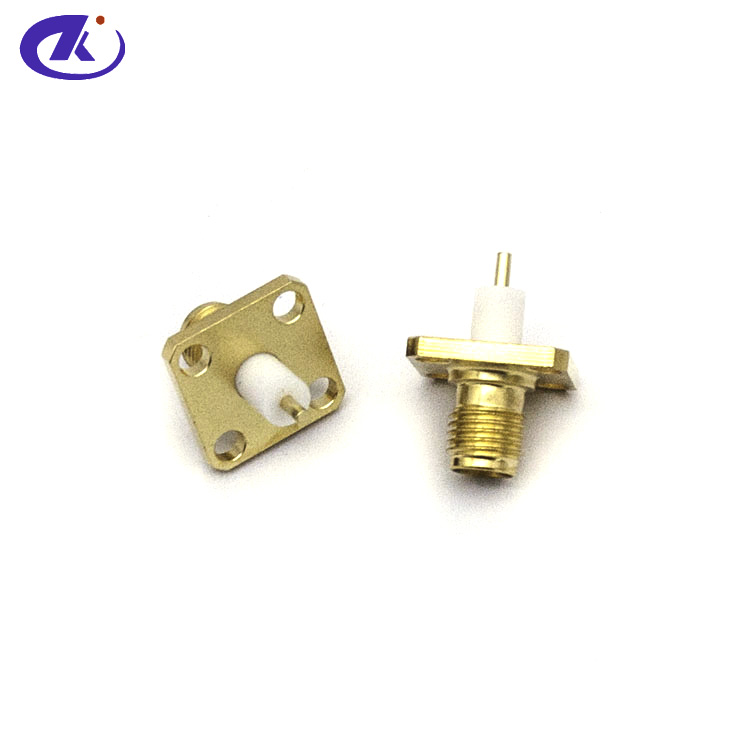

18Ghz SMA Female Straight Connector Flange
(SMA-KFD-126)
| Interface According to：IEC 60169-15 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-18GHz VSWR：≤1.25 Dielectric Withstanding Voltage：≥1000V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤3.0mΩ Outer Contact ≤2.5mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Au plating Insulator：PTFE, NATURAL Contact PIN：Phosphor Bronze,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
