SPECIFICATION

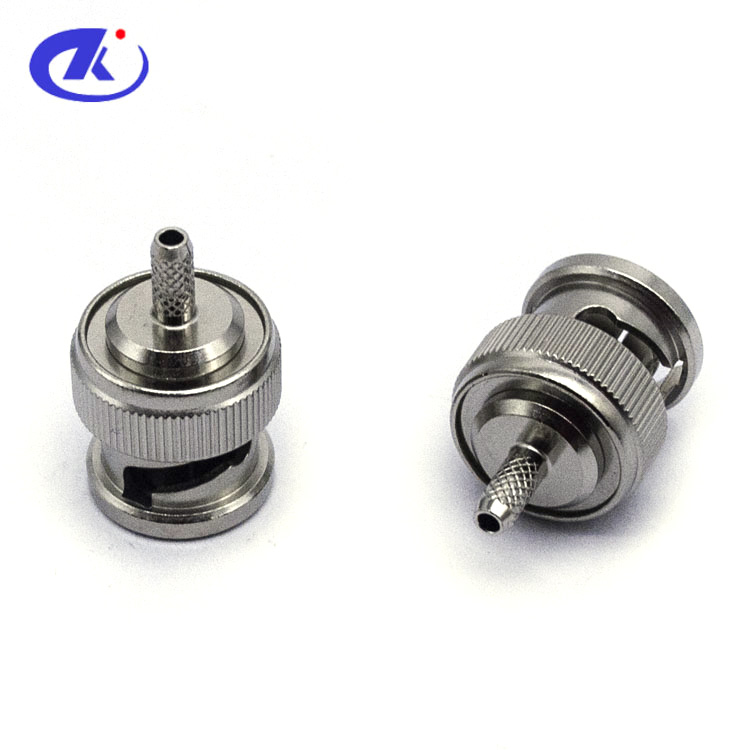

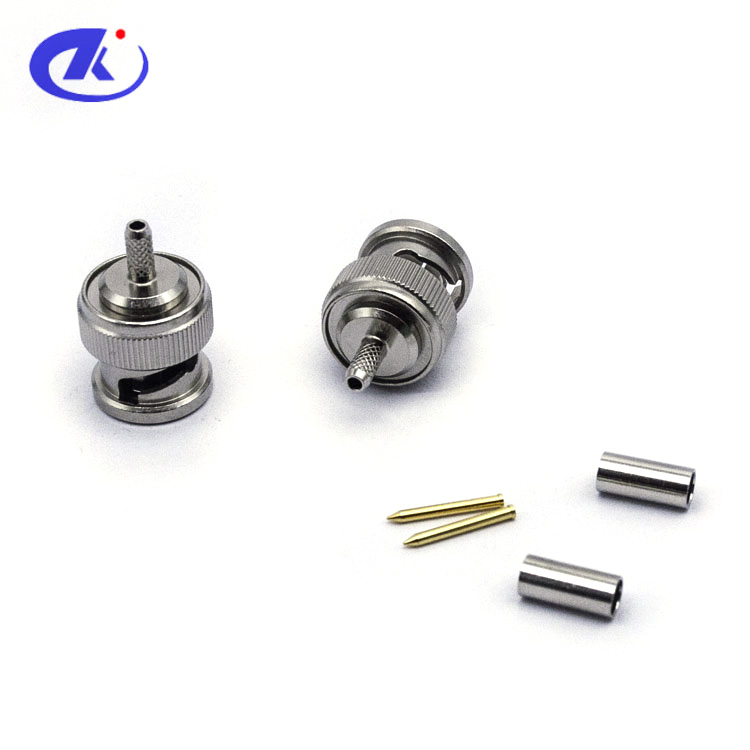

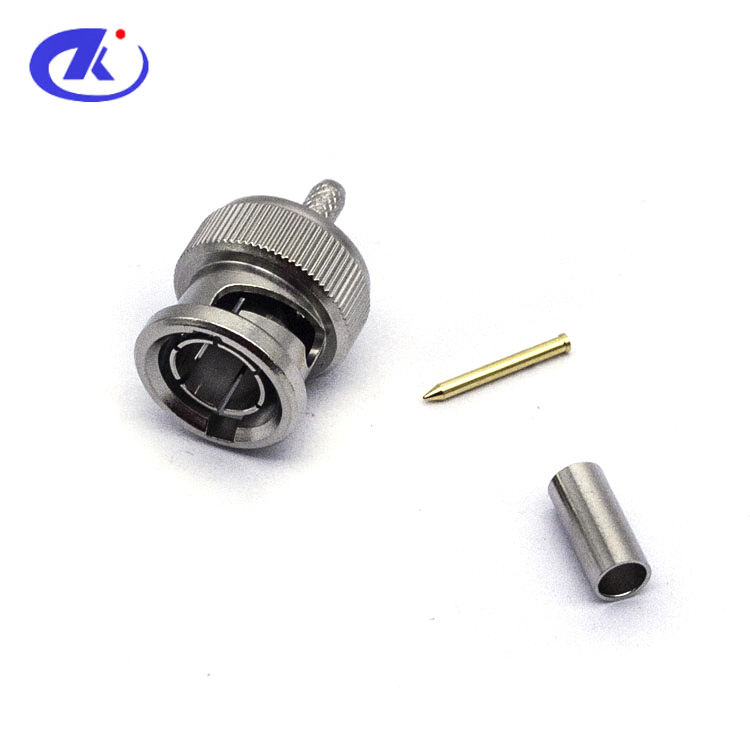

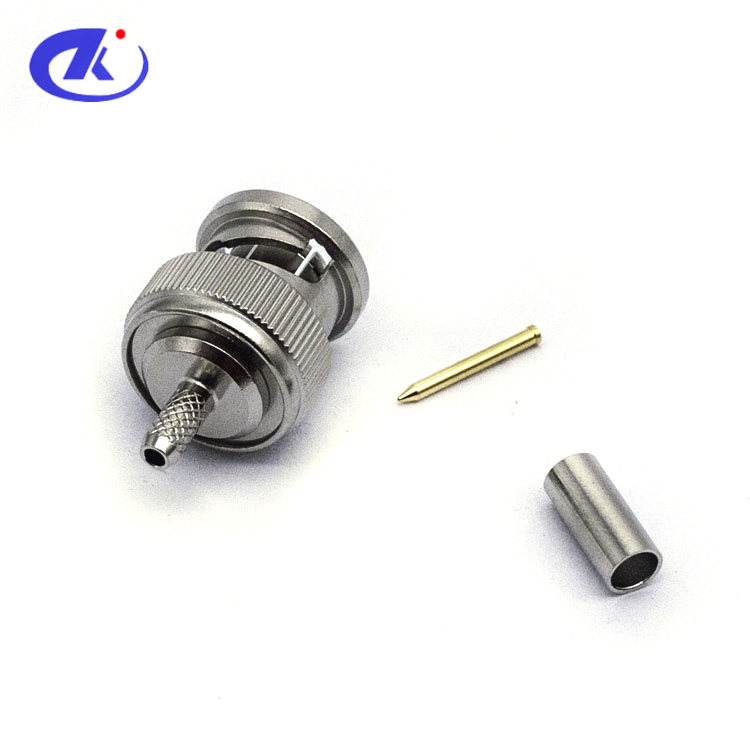

75Ohm BNC Male Straight Connector Crimp for RG179 Cable
(BNC-C-75J3R)
| Interface According to：IEC 60169-8 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR：≤1.3 Dielectric Withstanding Voltage：≥1500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1mΩ Outer Contact ≤1.5mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+80℃ Waterproof ：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
