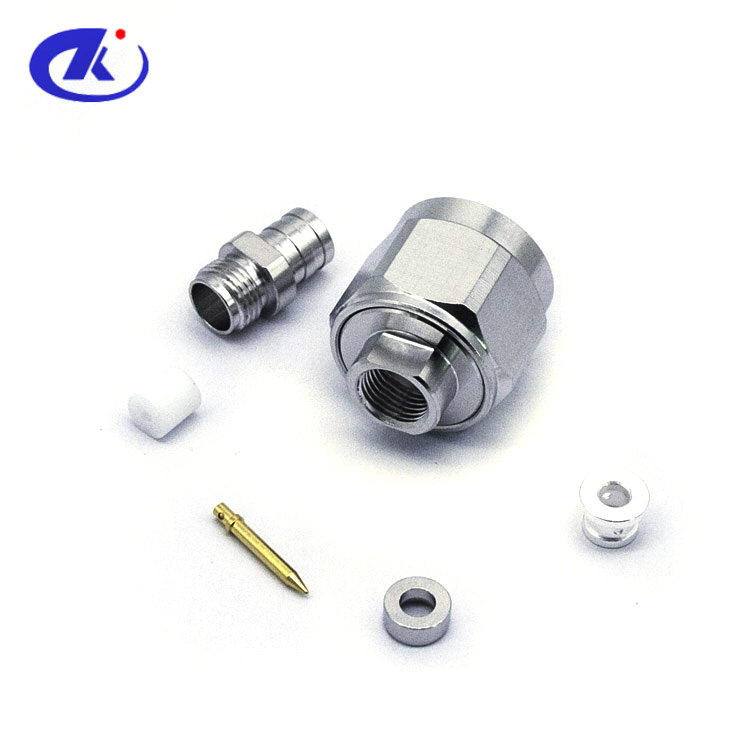

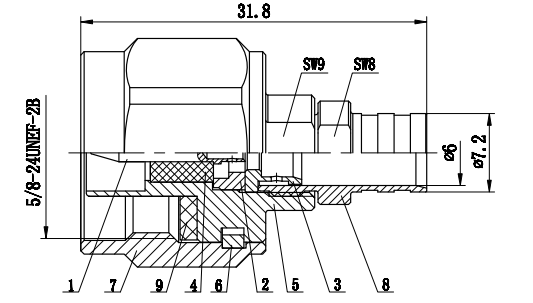

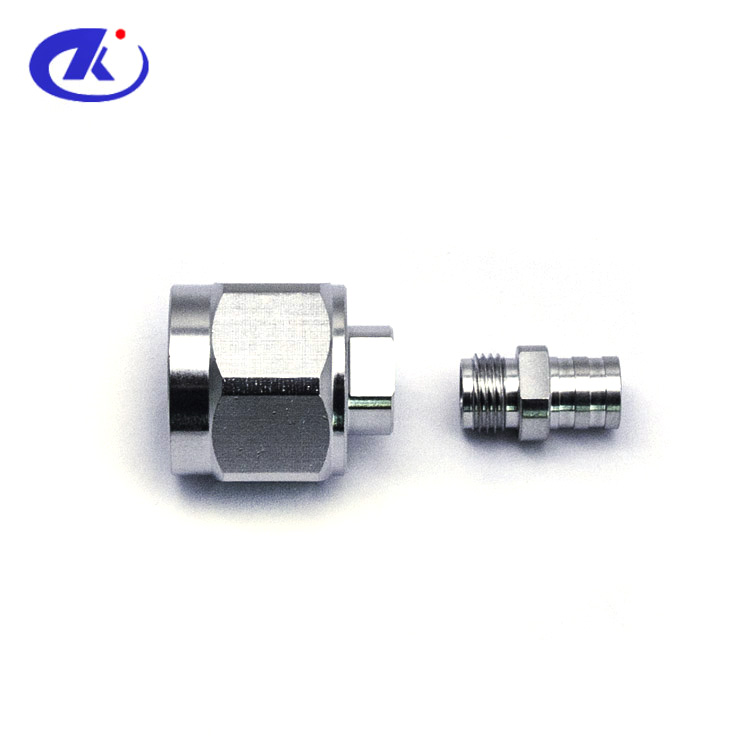

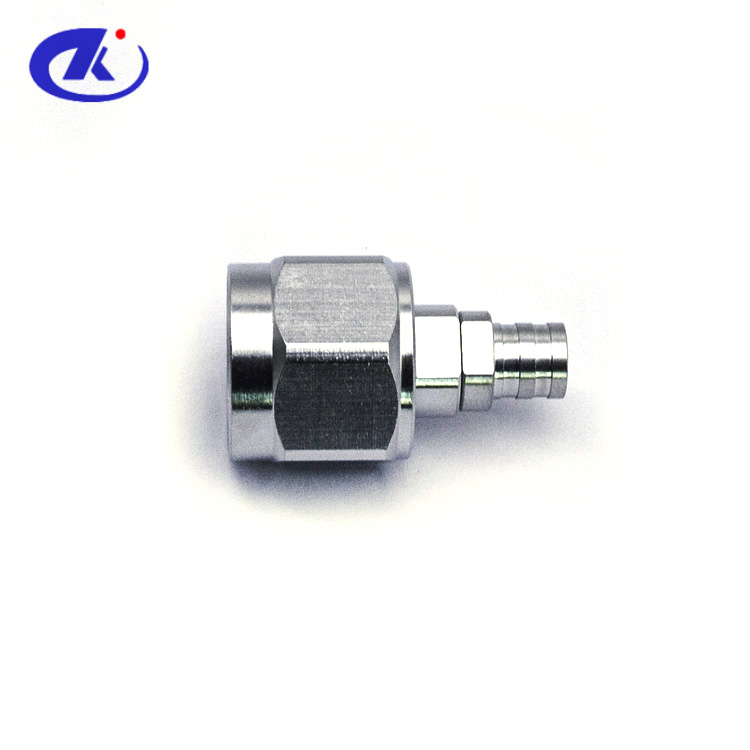

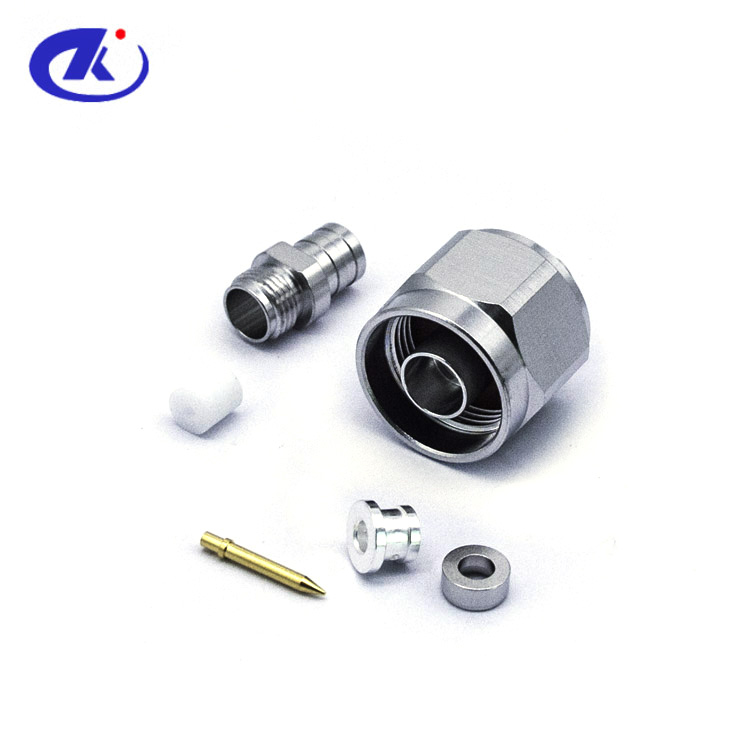

RF Coaxial N male crimp type connector for RG142 double shielding cable with screwing ferrule(N-J142-3)

SPECIFICATION

RF Coaxial N male crimp type connector for RG142 double shielding cable with

screwing ferrule(N-J142-3)


Interface

According to：IEC 60169-16

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR： ≤1.3

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：IP67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
