SPECIFICATION

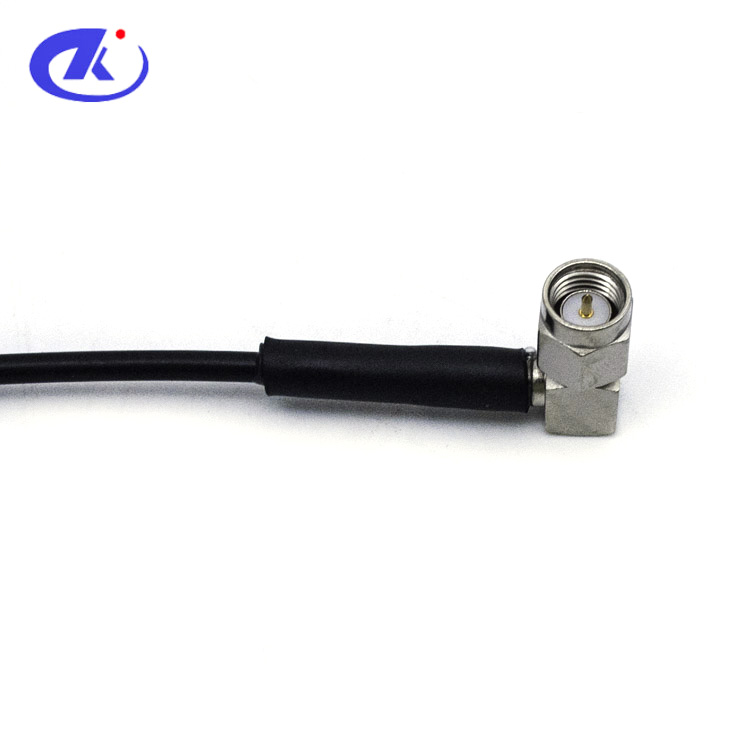

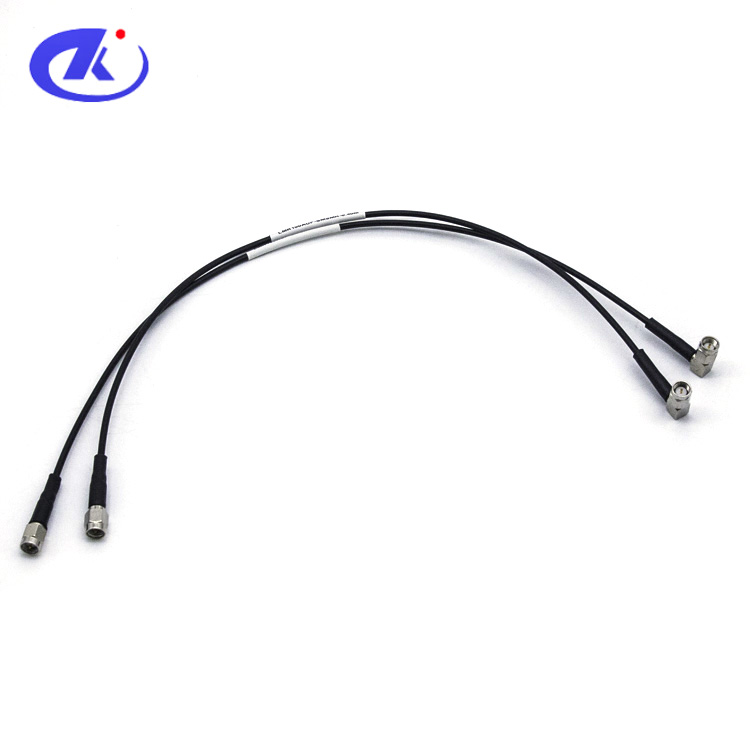

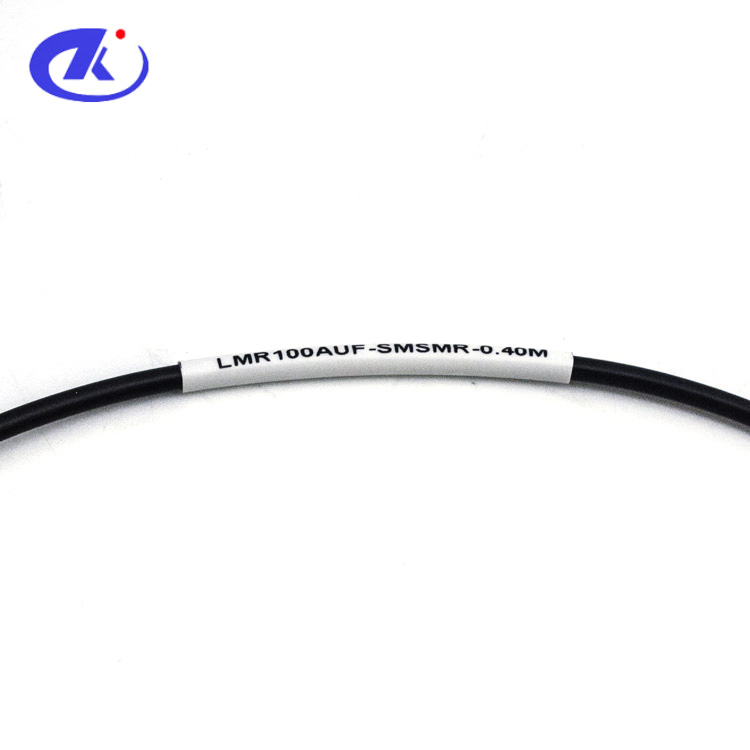

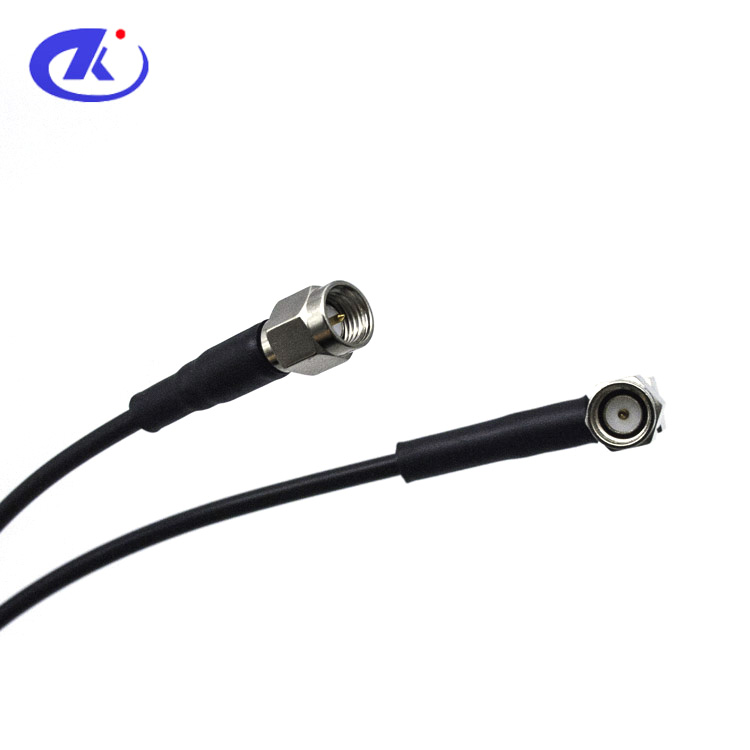

LMR100 jumper cable SMA male straight to SMA male right angle connector 400mm
( SMA-C-J100/SMA-C-JW100-400mm )
| Interface According to：IEC 60169-15 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-6GHz VSWR:≤1.3(0-6G) Dielectric Withstanding Voltage：≥2500RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
