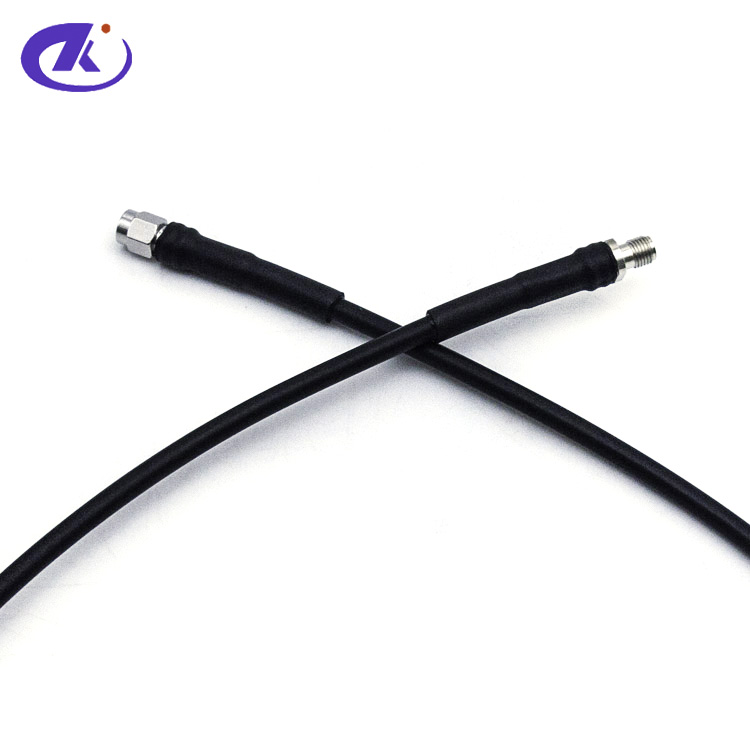

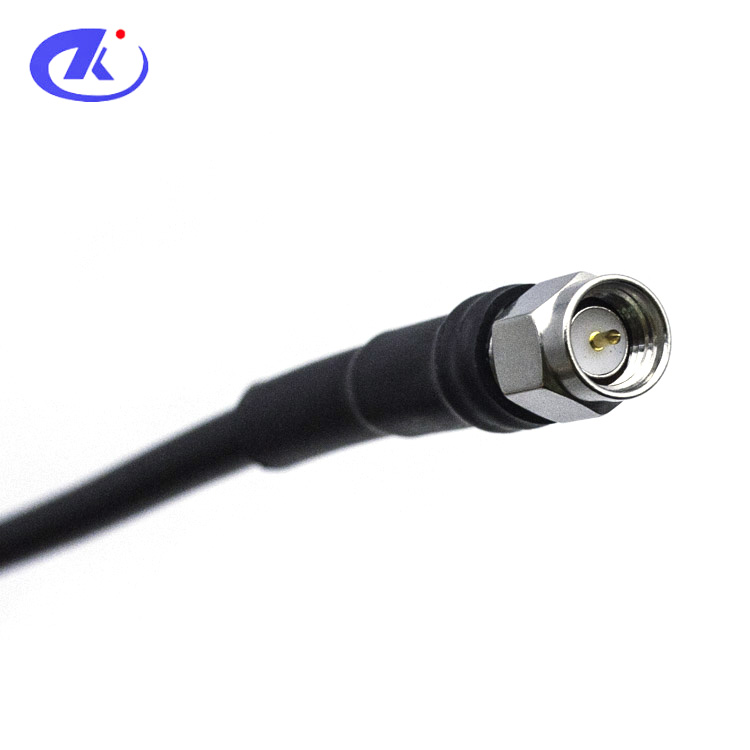

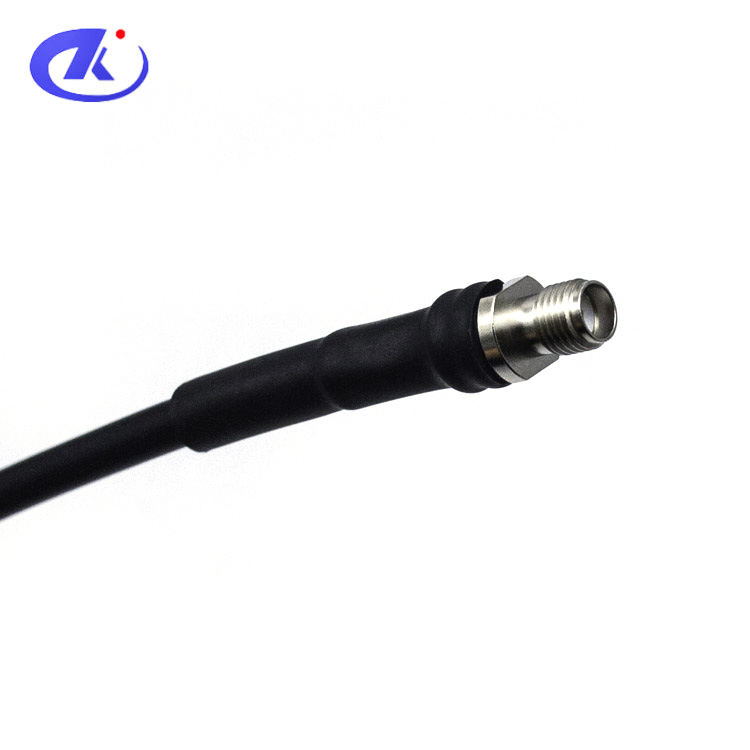

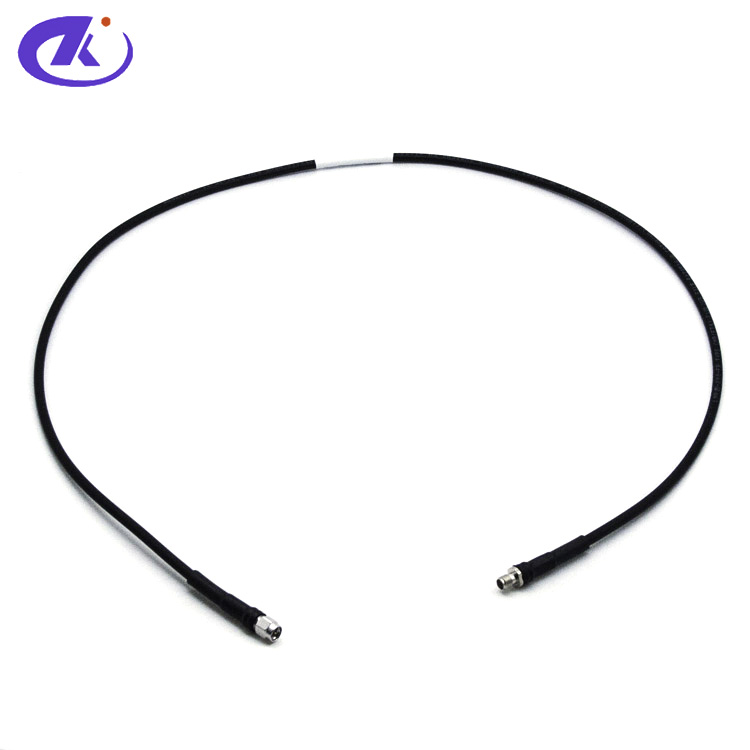

LMR200 Jumper Cable, SMA male to SMA female connector silver plated,1m ( SMA-C-J200-2/SMA-C-K200-1-1M )

SPECIFICATION

LMR200 Jumper Cable, SMA male to SMA female connector silver plated,1m

( SMA-C-J200-2/SMA-C-K200-1-1M )

Interface

According to：IEC 60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR:≤1.3(0-3G)

Dielectric Withstanding Voltage：≥2500RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ag plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
