SPECIFICATION

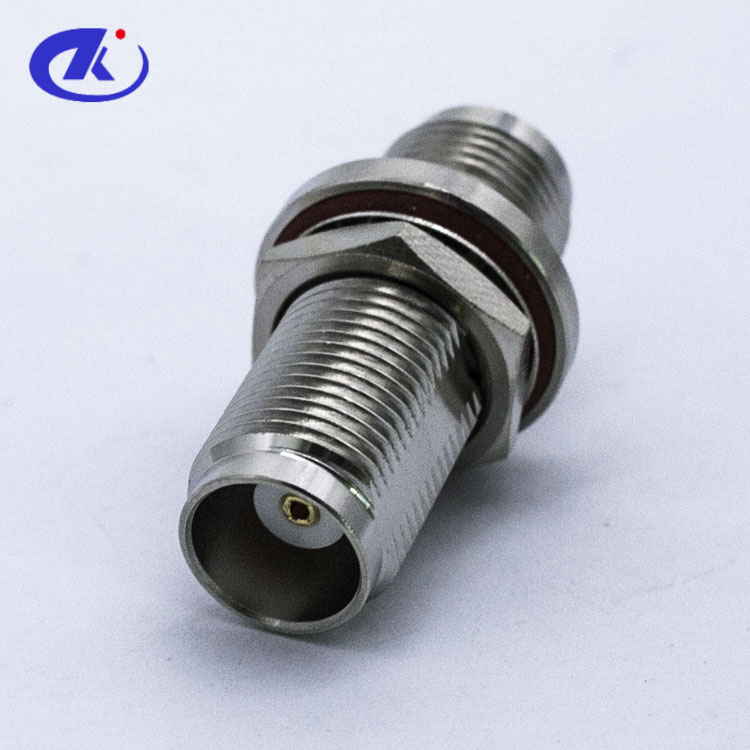

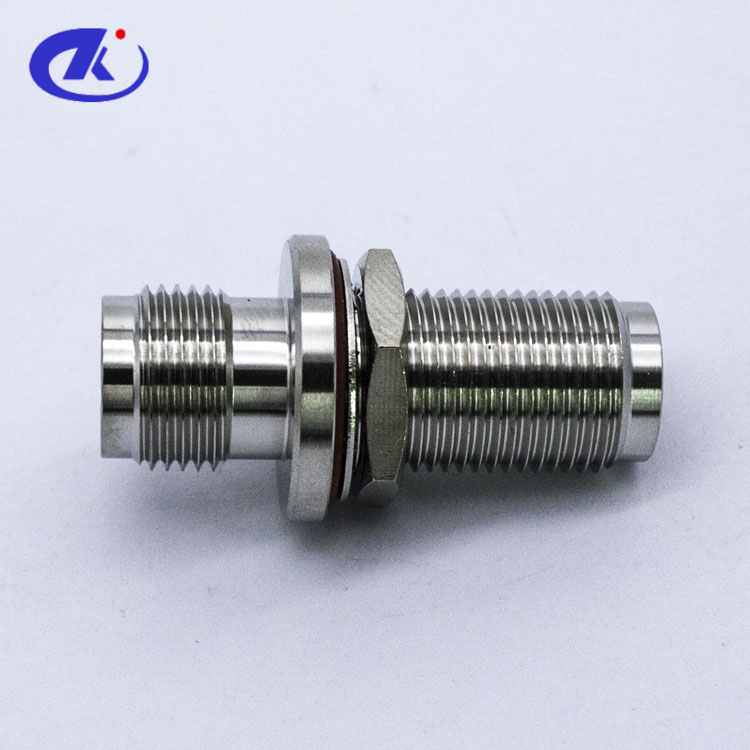

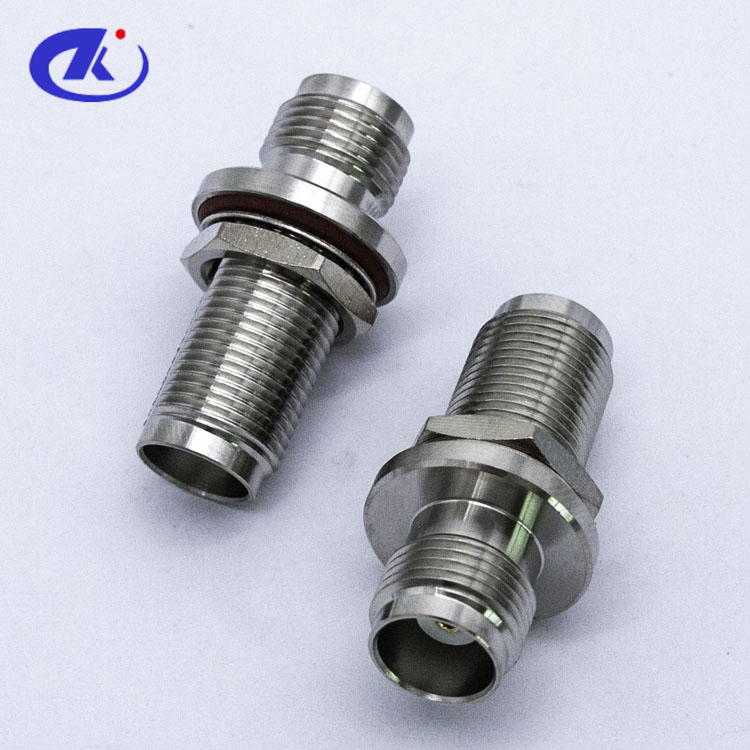

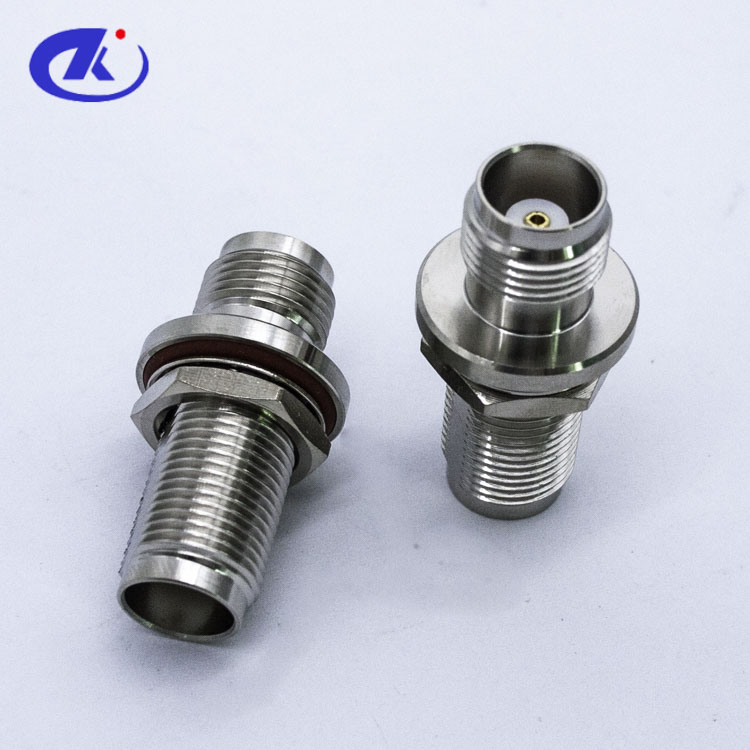

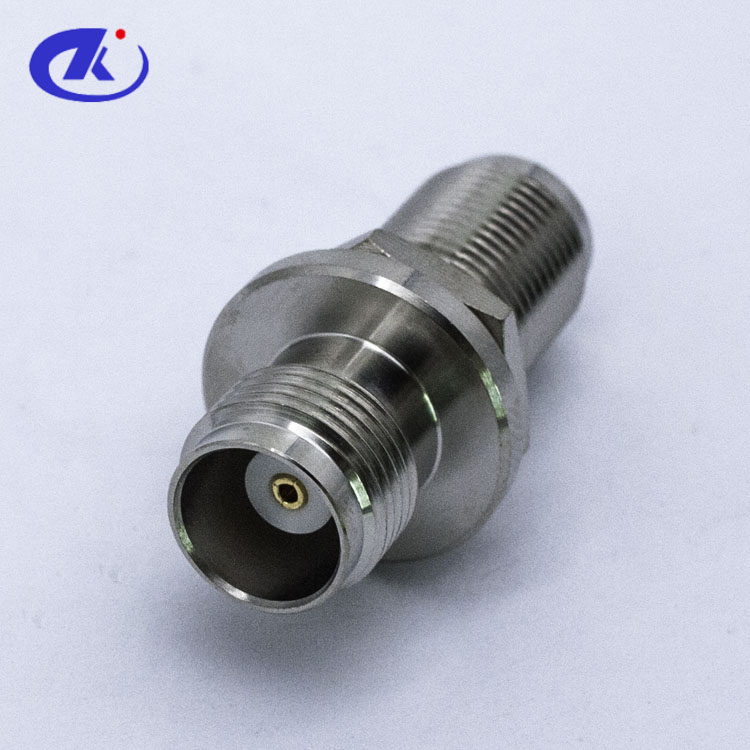

Adaptor TNC female to TNC female bulkhead
(TNC-KKY)
Interface According to:IEC 60169-17 | |
Electrical Performance Characteristic Impedance:50 ohm Frequency Range:DC-3GHz VSWR:≤1.1 Dielectric Withstanding Voltage:≥1500V RMS,50Hz,at sea level Dielectric Resistance:≥5000MΩ Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤0.5mΩ Durability:Mating cycles ≥500 | Material and plating Body:Brass, Ni plating Insulator:PTFE, NATURAL Contact PIN:Brass,Au plating
Environmental Temperature Range:-40℃~+85℃ Waterproof:(1m water depth, 24hours) IP68 RoHS:Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
