SPECIFICATION

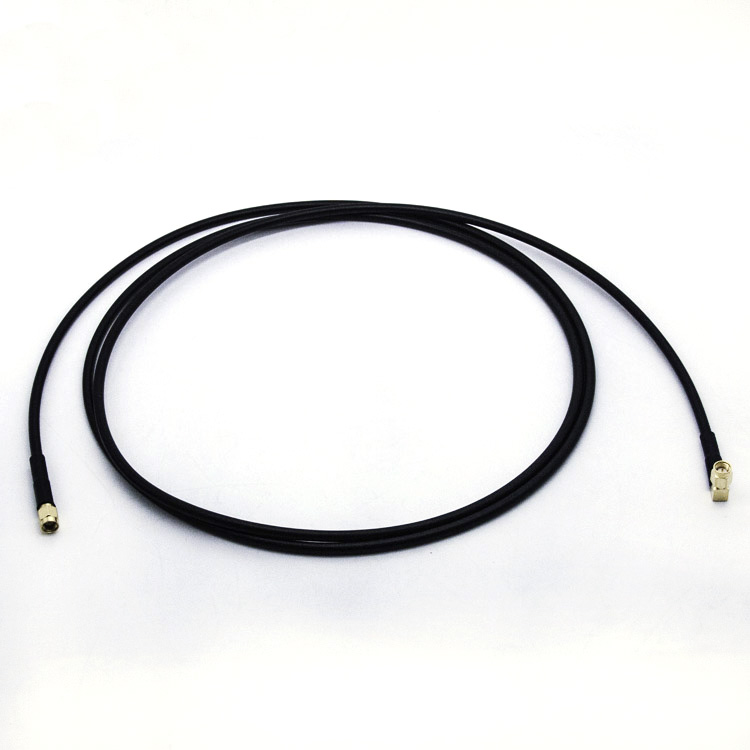

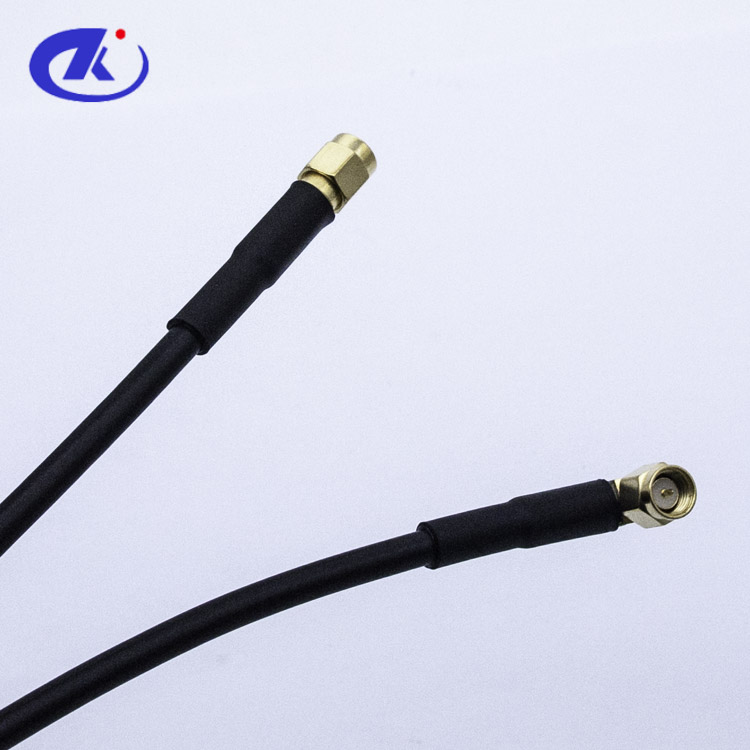

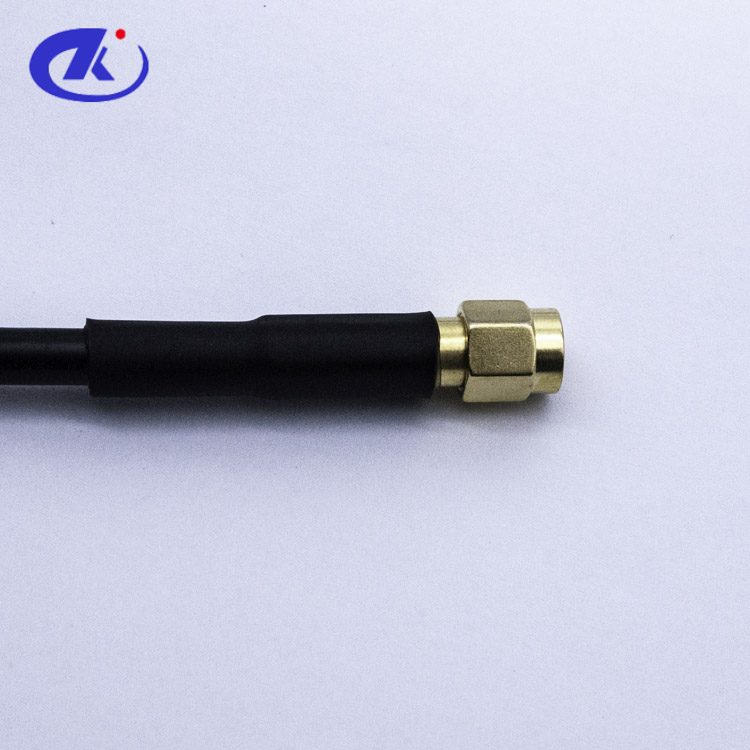

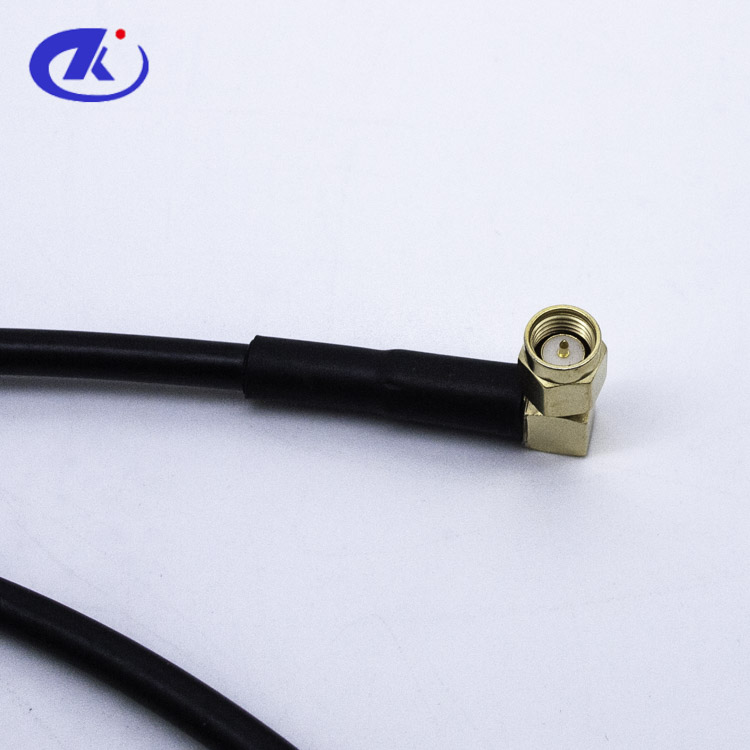

LMR200 Jumper Cable, SMA male to SMA male right angle connector,2m
( SMA-C-J200-SMA-C-JW200-2M )
| Interface According to：IEC 60169-15 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR:≤1.2(0-3G) Dielectric Withstanding Voltage：≥2500RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Au plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
