SPECIFICATION

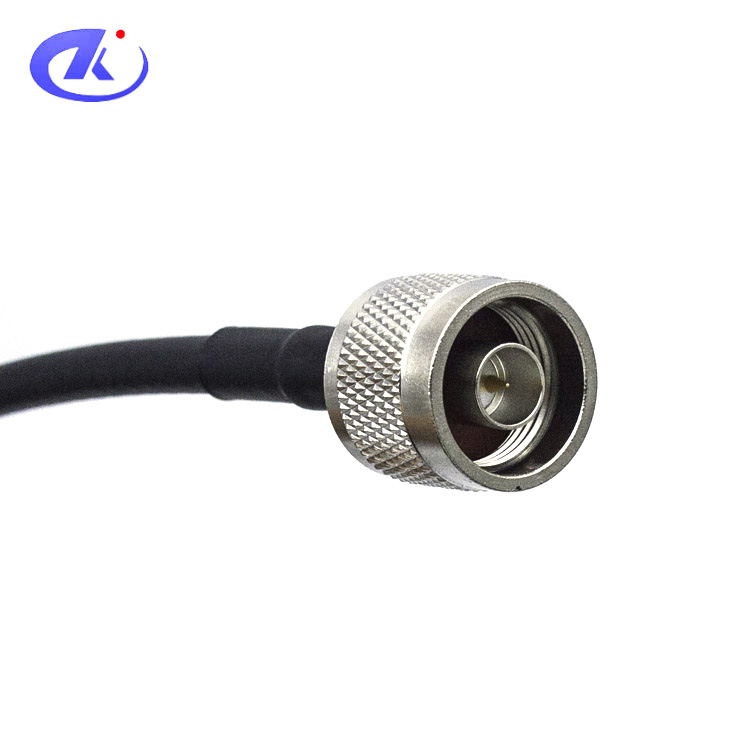

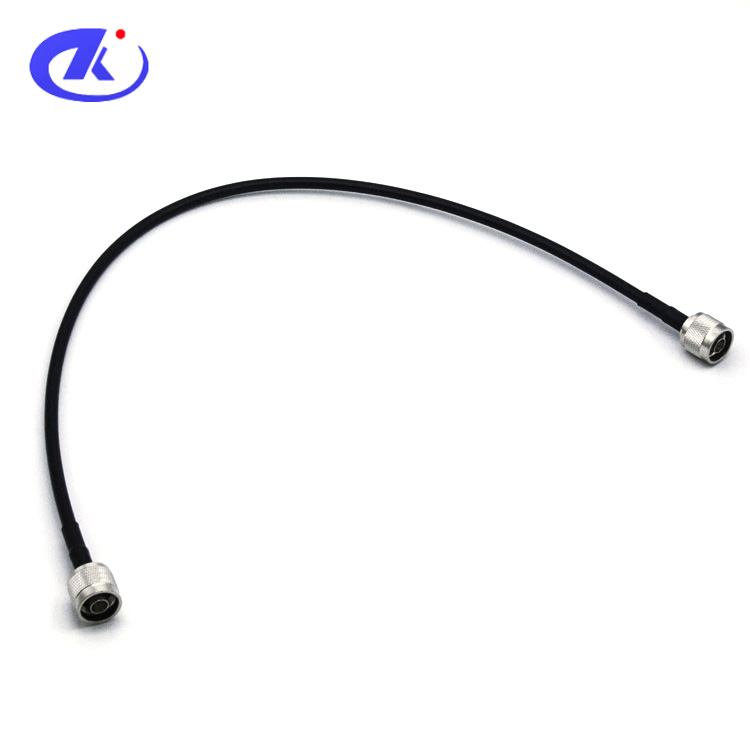

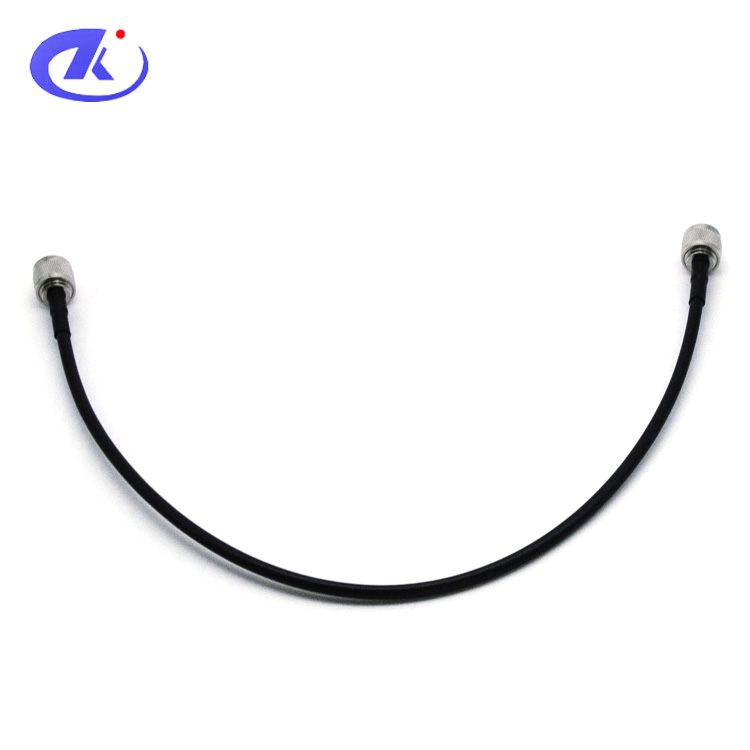

LMR240 rf jumper with N male crimp connector on both sides 600mm
(N-C-J240-3/N-C-J240-3--300m)
| Interface According to：IEC 60169-16 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR:≤1.2(0-3G) Dielectric Withstanding Voltage：≥2500RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy/Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
