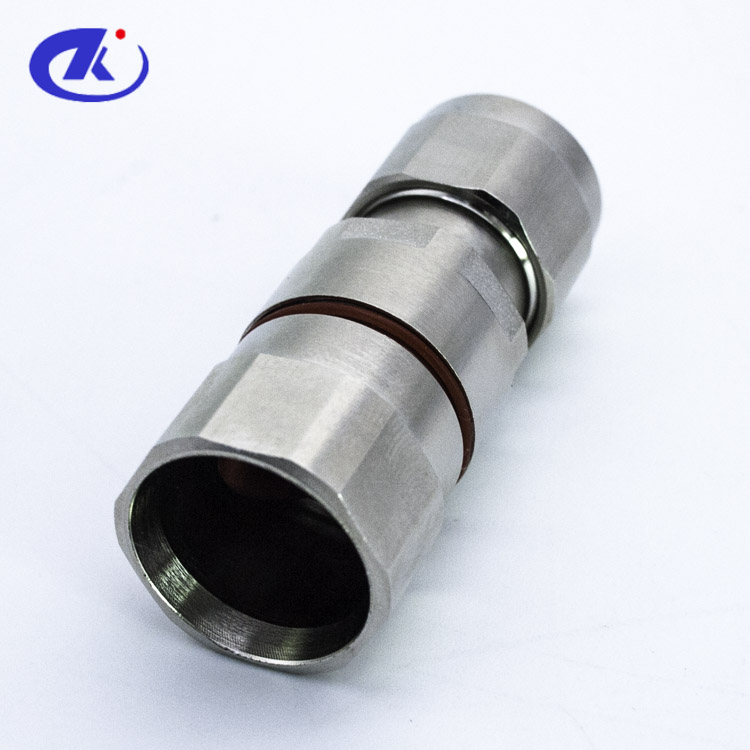

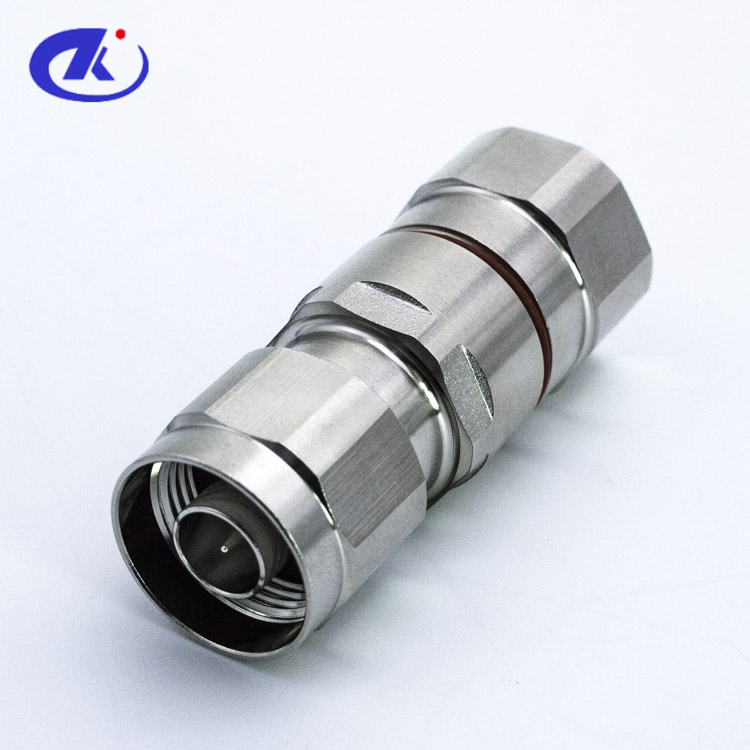

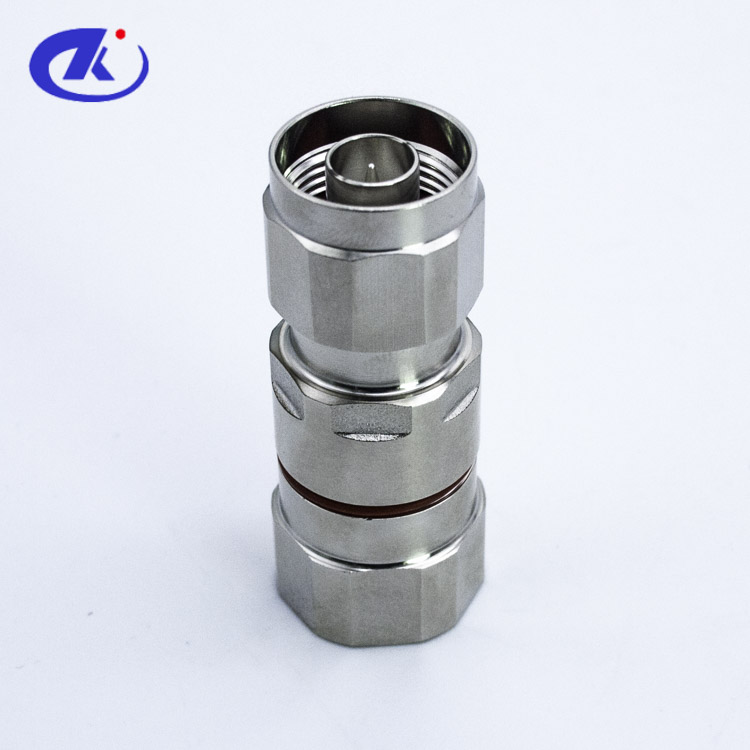

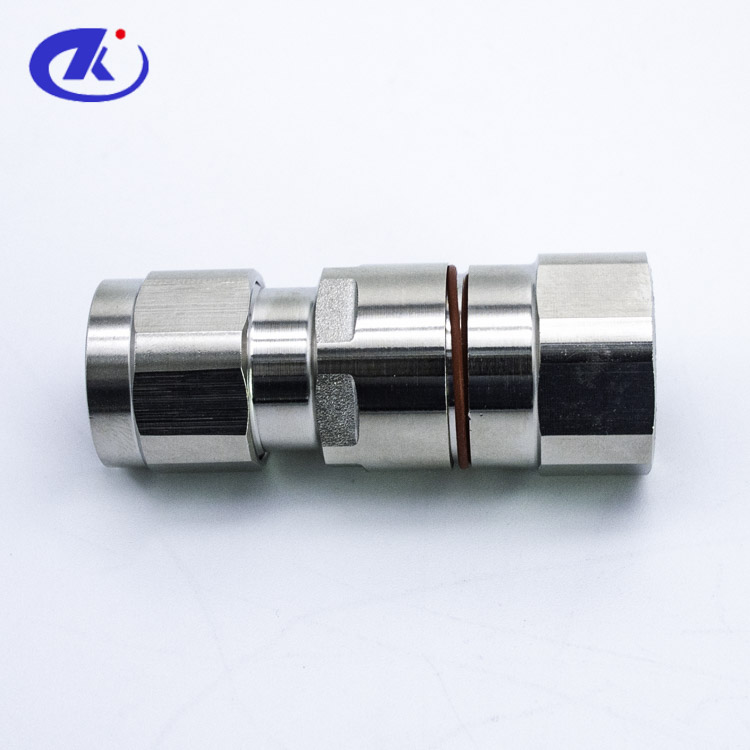

NEW HOT SALE N STRAIGHT MALE PLUG RF CONNECTOR FOR 1/2" FEEDER CABLE(N-J1/2-53E)

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-6GHz

VSWR：≤1.12(0-3G);≤1.25((0-3G))

PIM3：≤-155dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance
