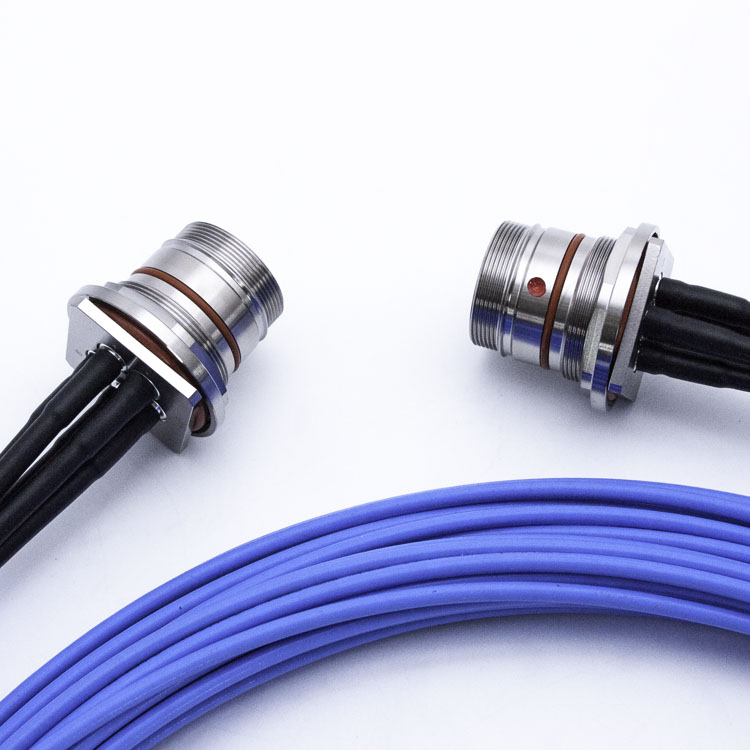

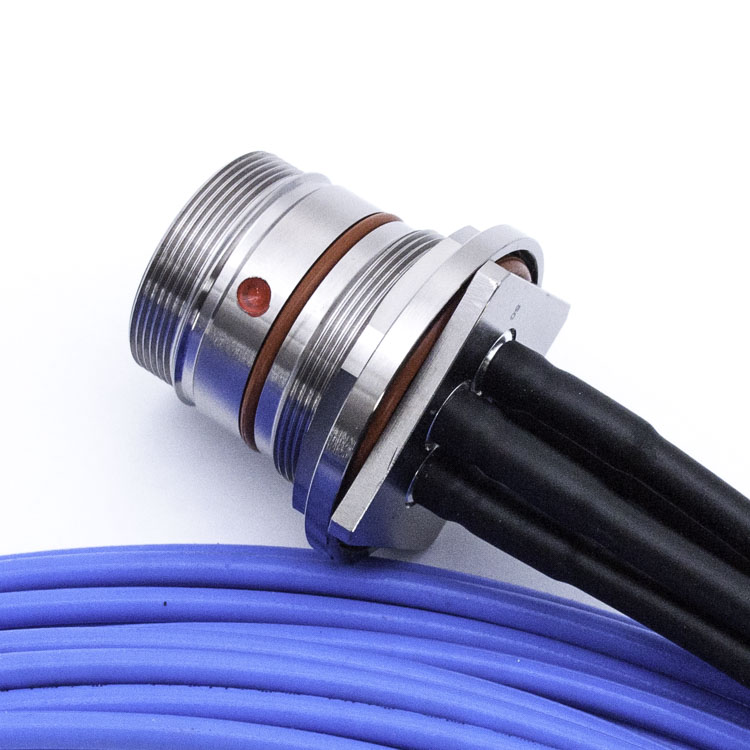

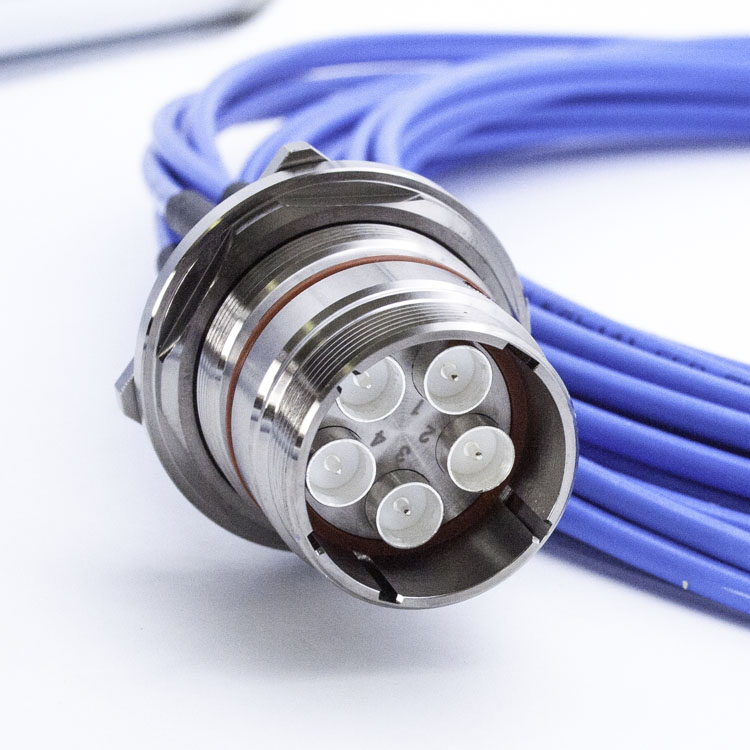

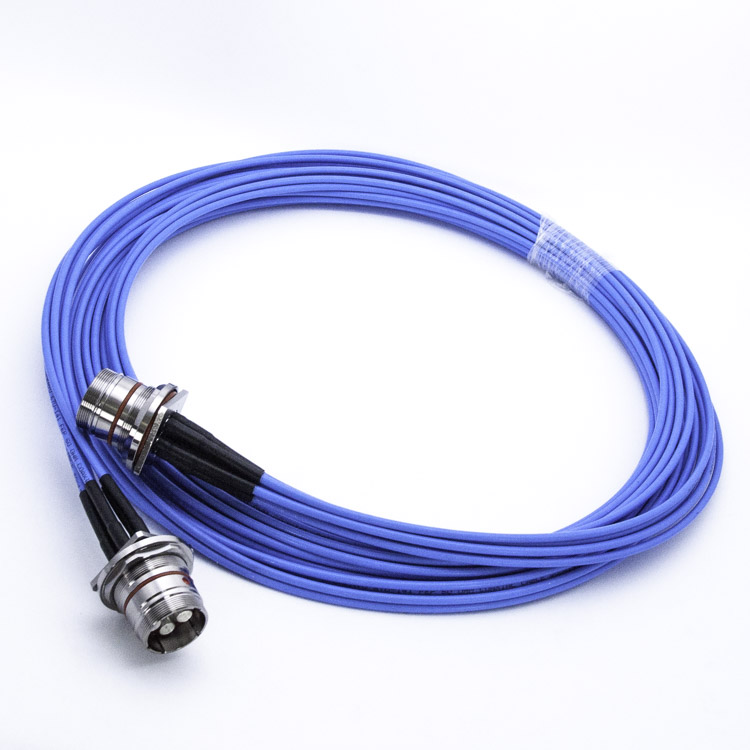

Cluster connector MQ5 plug to MQ5 plug connector, semi flexible 141 cable manufactory low PIM jumper

Cluster connector MQ5 plug to MQ5 plug connector, semi flexible 141 cable

(MQ5-J141-6-MQ5-J141-6-5m)

Interface

According to:IEC61169-54 / IEC63138-2

Electrical

1. Characteristic Impedance:50ohm

2. Frequency Range:DC-6GHz

3. VSWR:≤ 1.12(0-2.7)GHz      ≤ 1.18(2.7-4.2)GHz       ≤ 1.30(4.2-6)GHz

4. PIM:≤-158dBc

5. Insertion Loss:≤5.4dB

6. Dielectric Resistance:≥5000MΩ

7. Dielectric Withstanding Voltage:≥1000V AC

Mechanical

1.Durability :Mating cycles ≥500

2.Material and plating:

   Body Material: Brass  Plating: Ni-Sn Alloy

   Insulator Material: PTFE

   Center Conductor Material:Brass /BeCu   Plating: Silver

Environmental

1.Temperature Range:-55℃ to +125℃

2.RoHS Compliant: Pass

3.Water tightness:IP68(1m water depth/24hours)

4.Salt-fog test:≥720h(Neutral salt spray)

Note:

All products appearance,technical performance and electroplating can be customized according to your requirements.
