SPECIFICATION

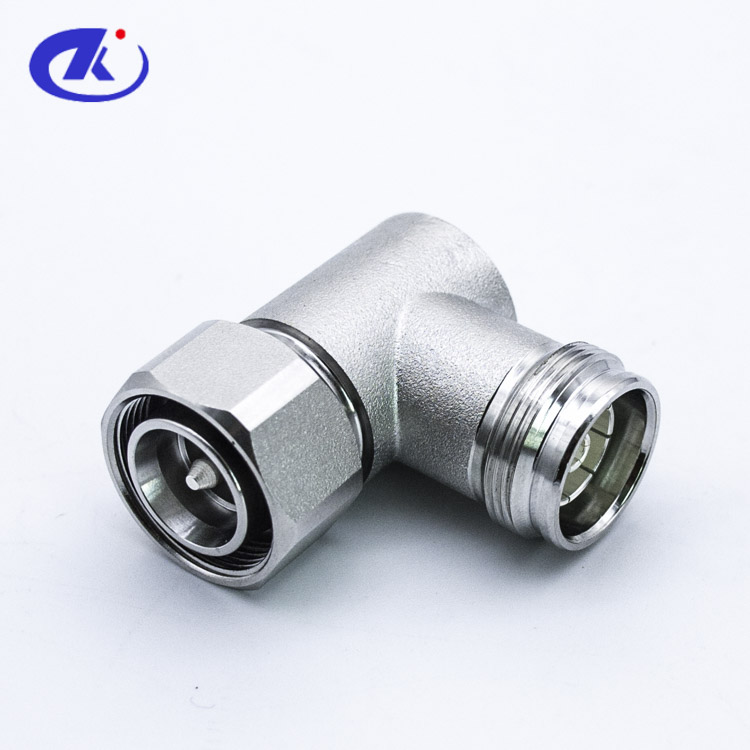

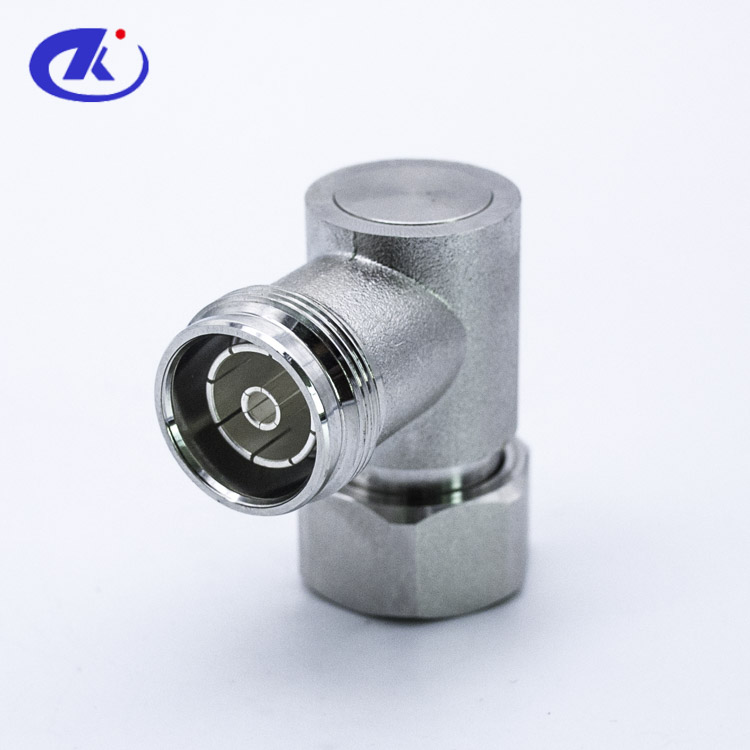

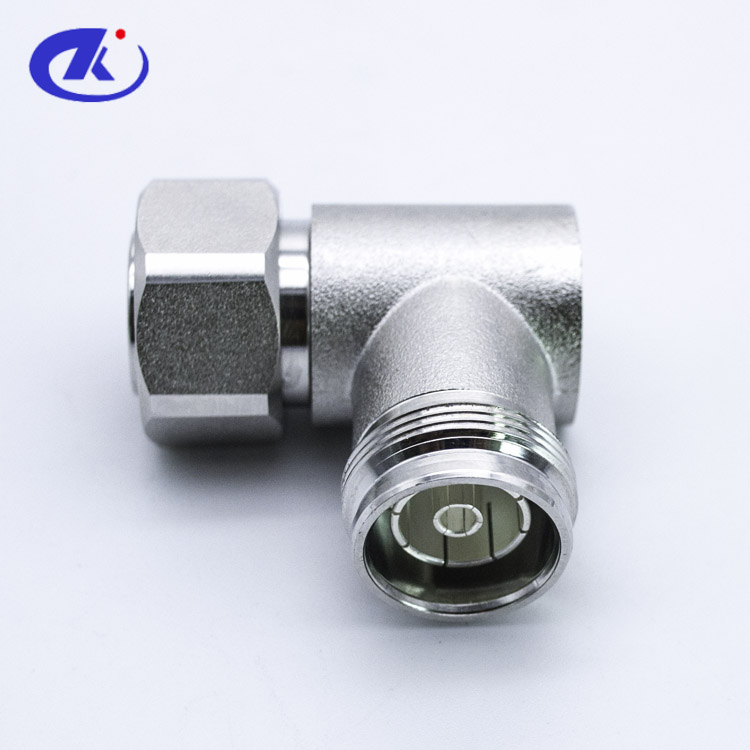

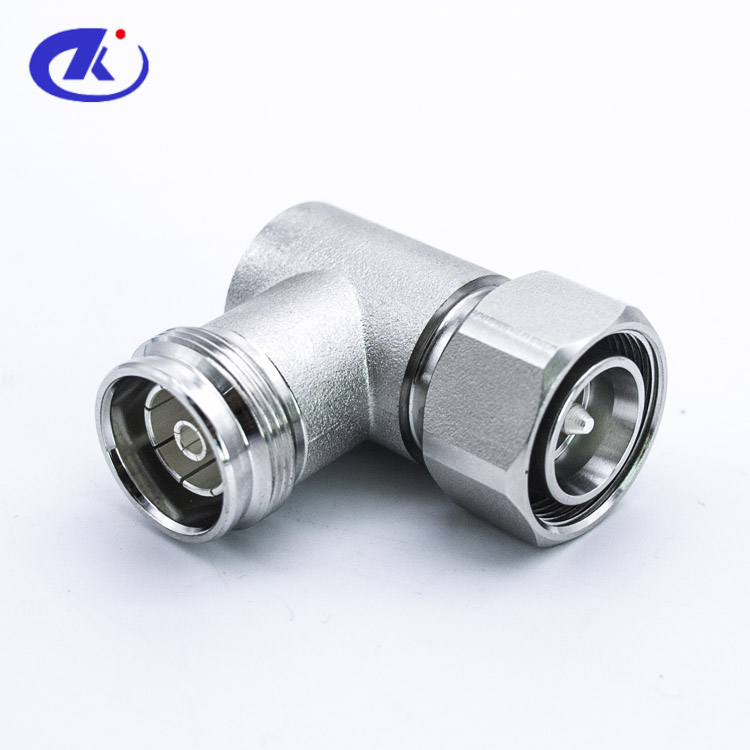

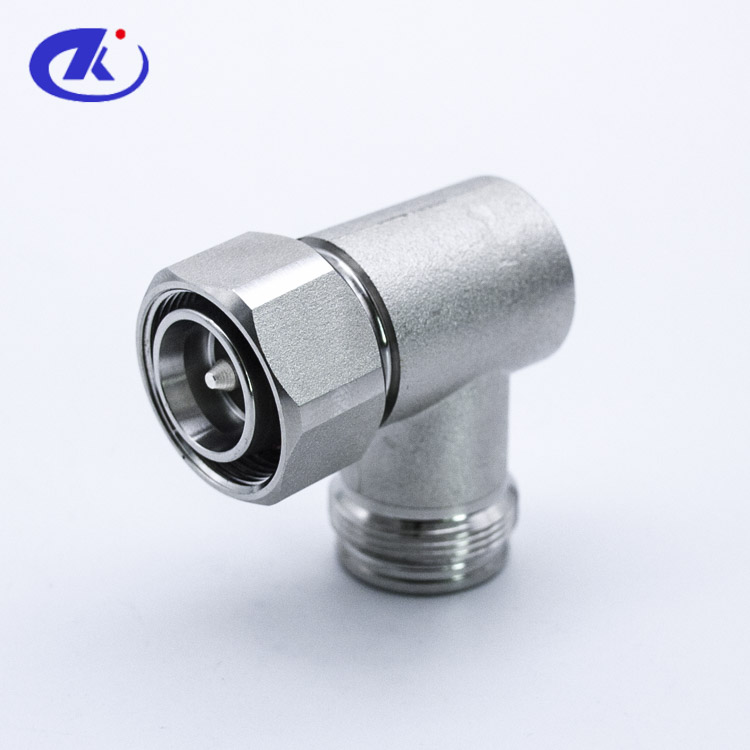

Adaptor 4.3/10 male to 4.3/10 female right angle
(4.3/10-JKW-S)
| Interface According to：IEC 61169-54 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-6GHz VSWR：≤1.10(0-3GHz)≤1.25(4-6GHz) PIM3：≤-163dBc Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥4000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-Alloy plating Insulator：PTFE, NATURAL Contact PIN：Brass,Ag plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：P68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
