SPECIFICATION

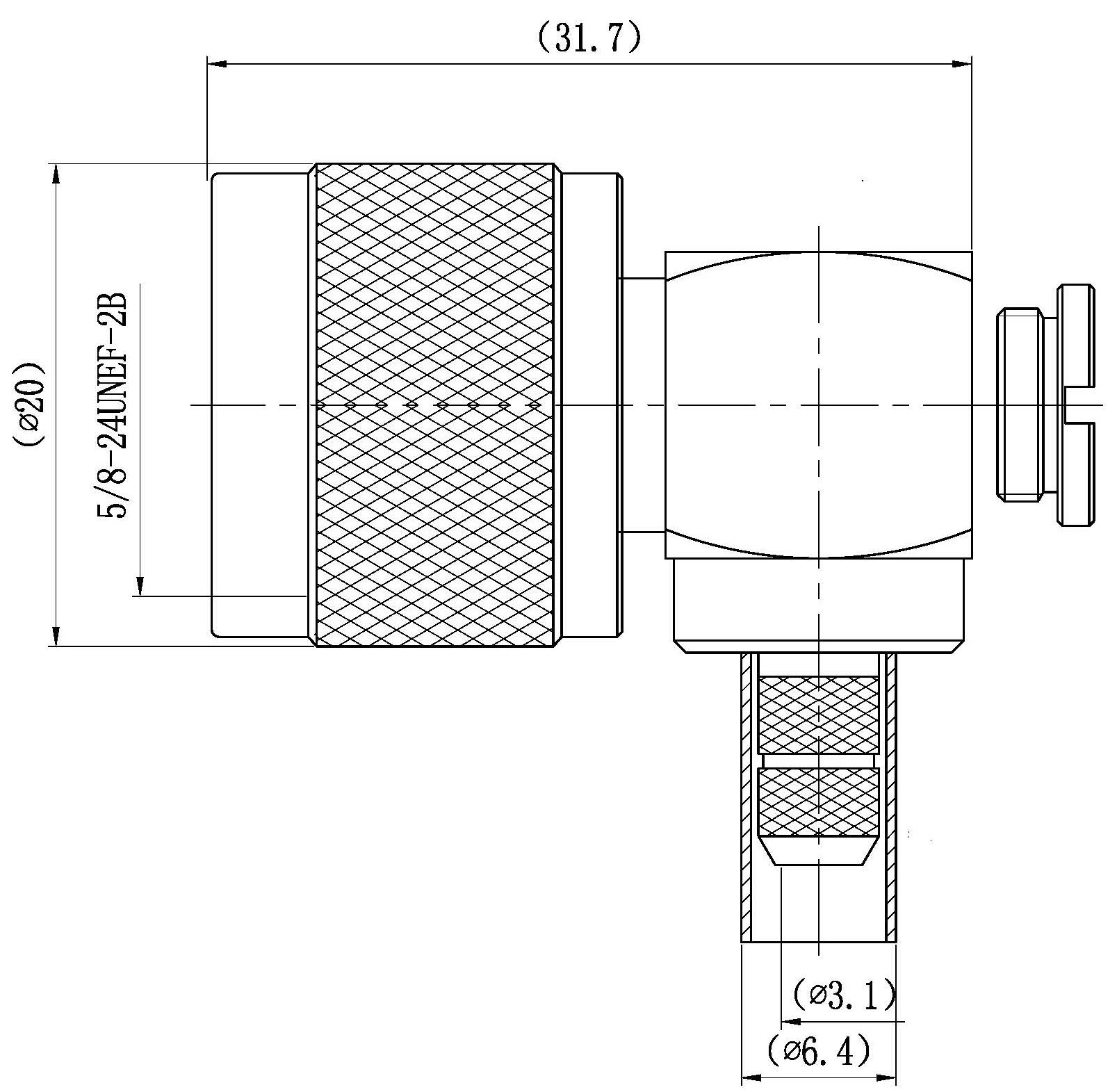

N MALE R/A CRIMP CONNECTOR FOR RG316 CABLE
(N-C-JW3)
| Interface According to：IEC 60169-16 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR： ≤1.2 Dielectric Withstanding Voltage：≥2500V RMS, 50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Brass,Au plating
Environmental Temperature Range： -40℃～+85℃ Waterproof：IP67 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
