High frequency DC-65GHz 1.85 male plug to 1.85 female jack adaptor
(1.85-JK)
 | |

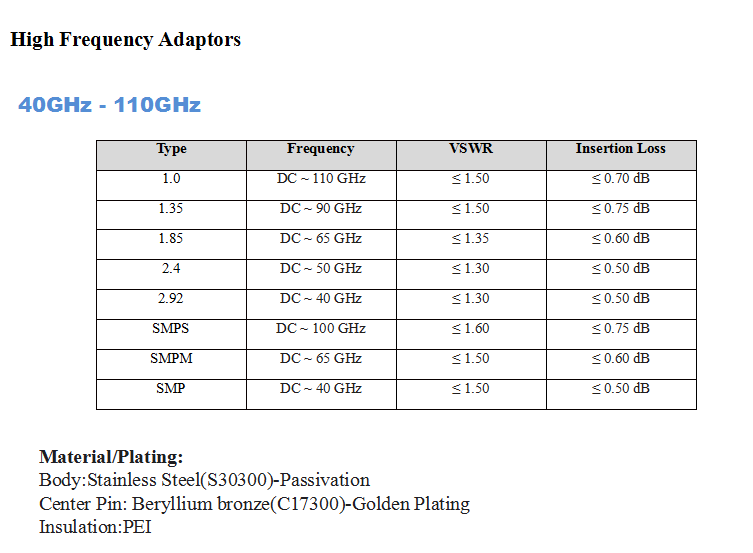

| 1.85 adaptor | |
| Frequency | DC-65GHz |
| Impedance | 50ohm |
| VSWR | ≤ 1.35 |
| Insertion loss | ≤ 0.60dB |
| Body plating | Stainless steel S30300 Passivation |
| Pin Material | Beryllium bronze(C17300) |
| Pin plating | Golden Plating |
| Insulation | PEI |

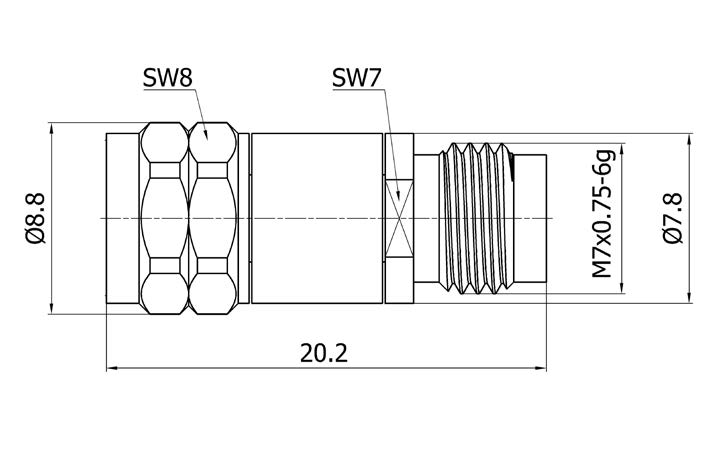

| Length | 20.2mm |
| Temperature range | -40~+85 |
