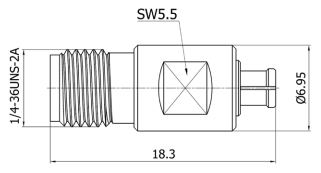

High frequency 0-40GHz adaptor,2.92 male to SMP female connector
(2.92/SMP-KK)

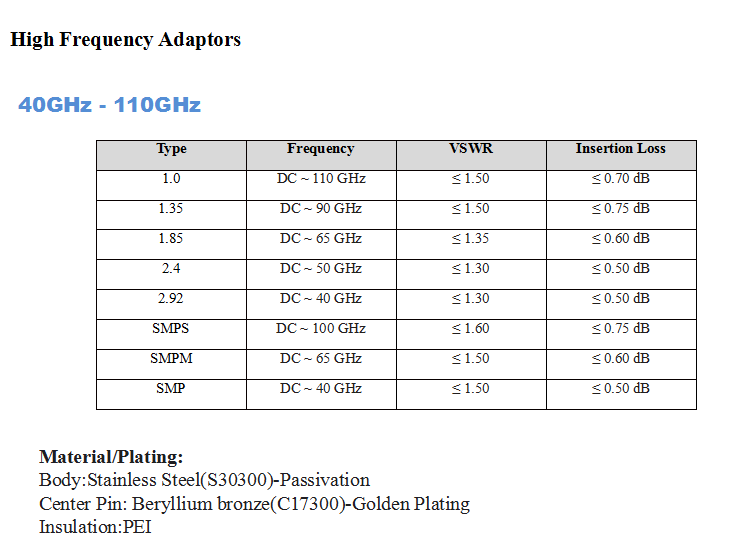

| 2.4/2.92 adaptor | |
| Frequency | DC-40GHz |
| Impedance | 50ohm |
| VSWR | ≤ 1.35 |
| Insertion loss | ≤ 0.50dB |
| Body plating | Stainless steel S30300 Passivation |
| Pin Material | Beryllium bronze(C17300) |
| Pin plating | Golden Plating |
| Insulation | PEI |
| Temperature range | -40℃~+85℃ |
