SPECIFICATION

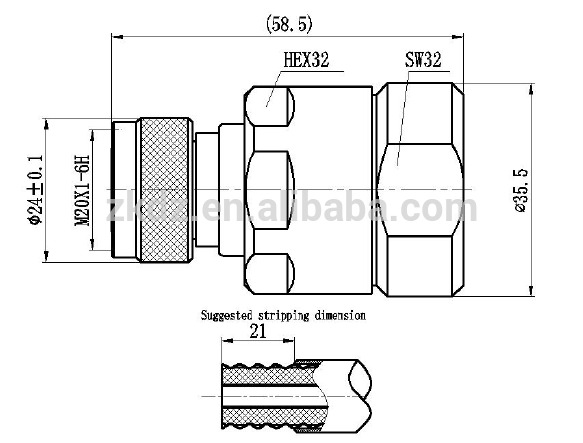

Handscrew 4.3/10 Male Straight Connector Clamp For 7/8” Low Loss Cable
(H4.3/10-J7/8)
| Interface According to：IEC 61169-54 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-4GHz VSWR：≤1.15 PIM3：≤-160dBc Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-Alloy plating Insulator：PTFE, NATURAL Contact PIN：Phosphor bronze,Ag plating
Environmental Temperature Range：-40℃～+85℃ Watertightness(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
