ADAPTOR

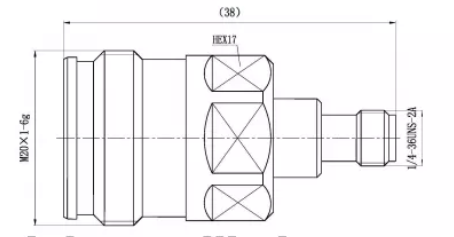

Adaptor 4.3/10 female to SMA female(4.3/10/SMA-KK)

SPECIFICATION

Adaptor 4.3/10 female to SMA female

(4.3/10/SMA-KK)

Interface

According to：IEC 61169-54/60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-6GHz

VSWR：≤1.15

PIM3：≤-160dBc

Dielectric Withstanding Voltage：≥750V RMS,50Hz,at sea level

Dielectric Resistance：≥4000MΩ

Contact Resistance：Center Contact ≤3.0mΩ Outer Contact ≤2.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN:Phosphor Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：P68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
