SPECIFICATION

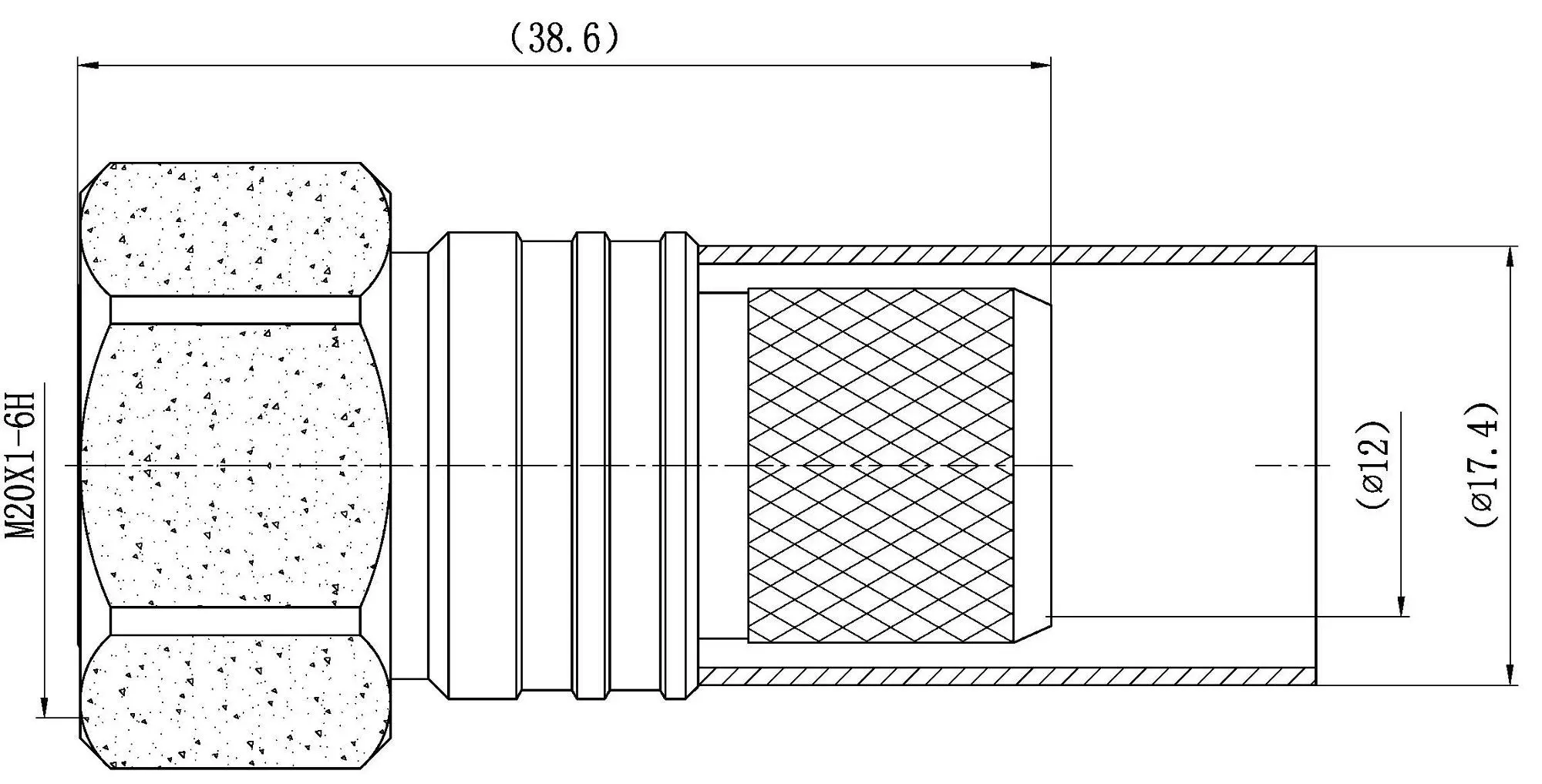

4.3/10 Male Straight Connector For LMR600 Cable Crimp
(4.3/10-C-JLMR600)
Interface According to:IEC 61169-54 | |
Electrical Performance Characteristic Impedance:50 ohm Frequency Range:DC-3GHz VSWR:≤1.15 Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level Dielectric Resistance:≥5000MΩ Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability:Mating cycles ≥500 | Material and plating Body:Brass, Tri-alloyNi plating Insulator:PTFE, NATURAL Contact PIN:Phosphor bronze,Au plating
Environmental Temperature Range: -40℃~+85℃ Watertightness:IP67 RoHS:Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
