4.3/10 Female Straight Connector for 3/8 Superflex Cable(4.3/10-K3/8S)

SPECIFICATION

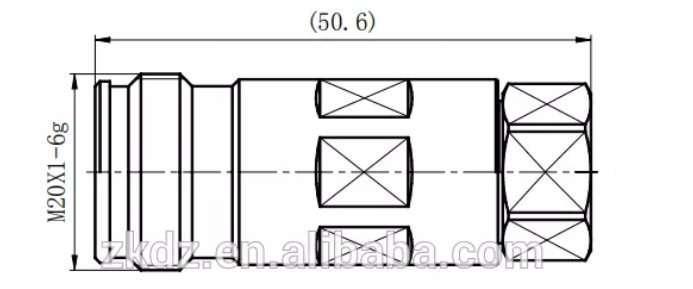

4.3/10 Female Straight Connector for 3/8 Superflex Cable

(4.3/10-K3/8S)

Interface

According to：IEC 61169-54

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.15(DC-3GHz)

PIM3： ≤-165dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance ：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Watertightness(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
