4.3/10 Male Connector For 1/4" Superflex Cable Soldering(4.3/10-H-J1/4S-1)

SPECIFICATION

4.3/10 Male Connector For 1/4" Superflex Cable Soldering

(4.3/10-H-J1/4S-1)

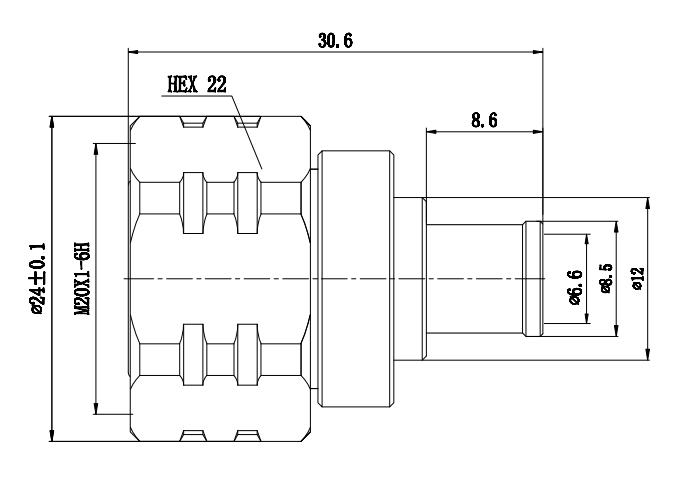

4.3-10 MALE STRAIGHT CONNECTOR FOR 1-4 SF CABLE SOLDERING(4.jpg

Interface

According to：IEC 61169-54

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.15

PIM3：≤-160dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Watertightness(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
