N Male Connector for 1-1/4” Cable(N-J1-1/4-3)

SPECIFICATION

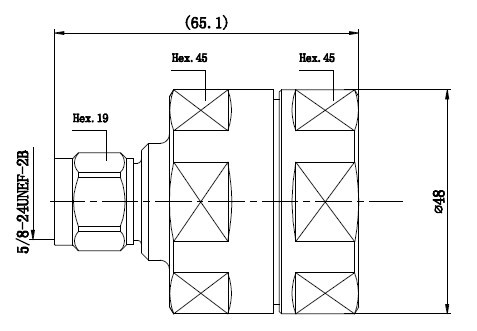

N Male Connector for 1-1/4” Cable

(N-J1-1/4-3)

Interface

According to：IEC 60169-16

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-11GHz

VSWR：≤1.10(0-3G)

PIM3：≤-150dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Brass/Beryllium Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
