4.3/10

4.3/10-K7/8-1A

SPECIFICATION

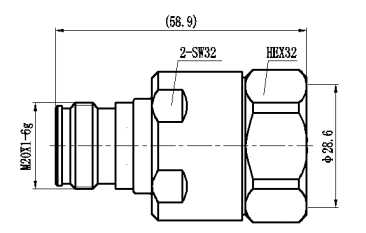

4.3/10 Female Connector for 7/8" Cable

(4.3/10-K7/8-1A)


Interface

According to：IEC 61169-54

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-6GHz

VSWR： ≤1.10(DC-3GHz);≤1.2(4-6GHz)

PIM3：≤-163dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Watertightness(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
