SPECIFICATION

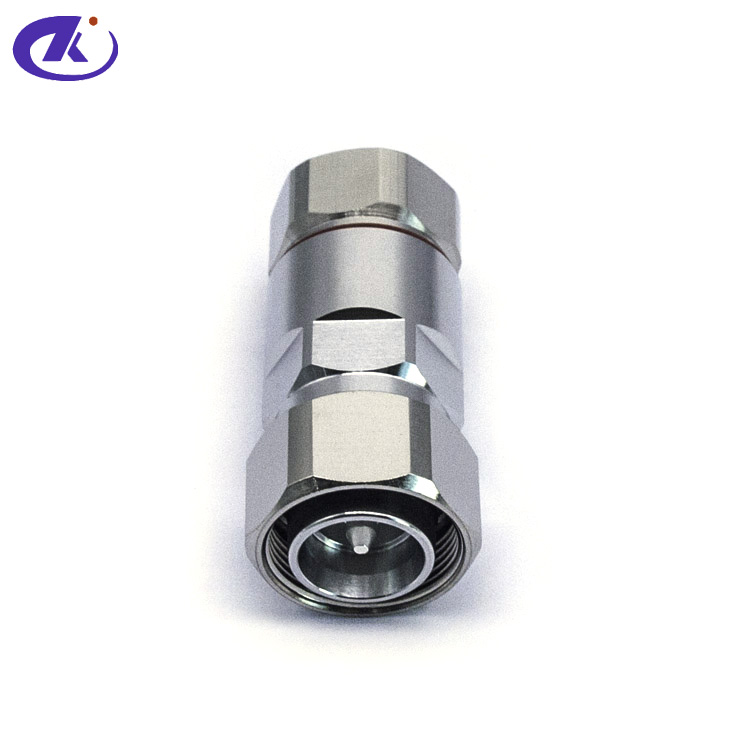

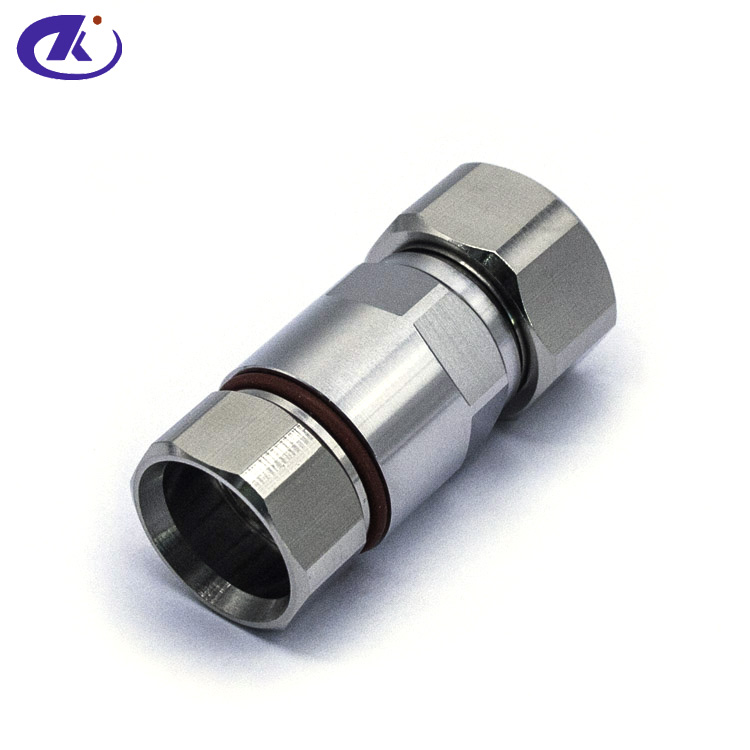

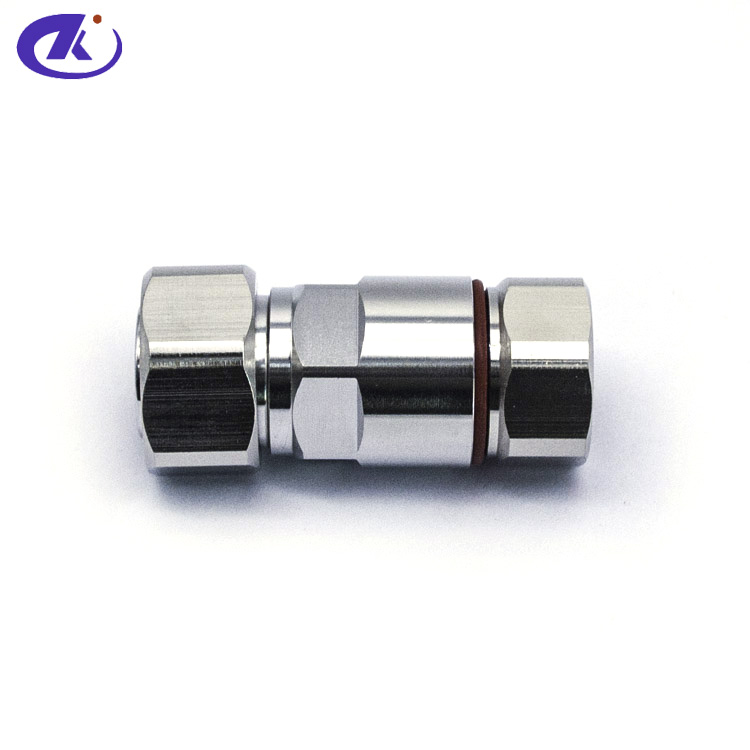

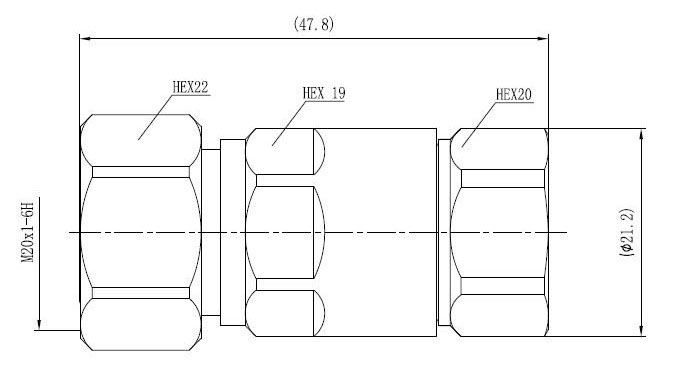

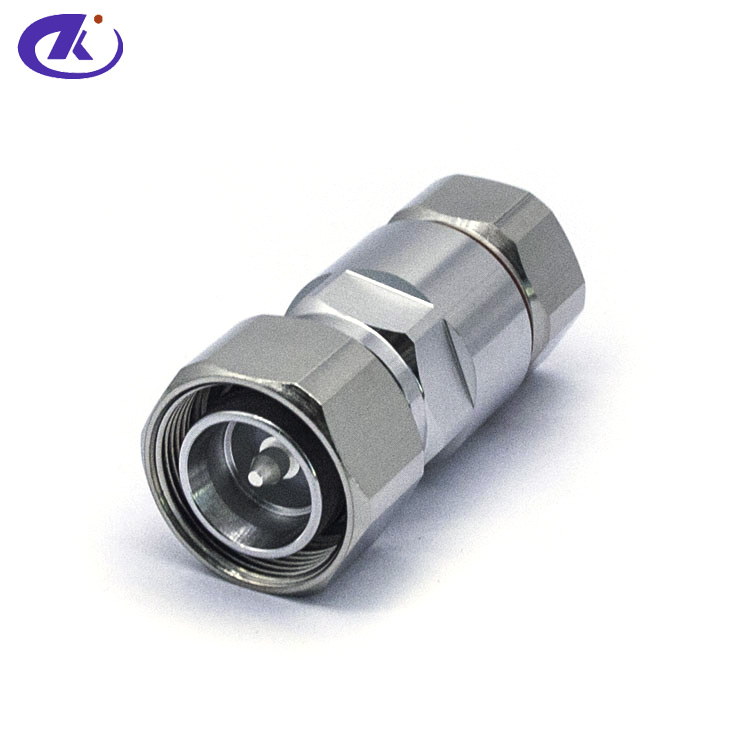

4.3/10 Male Straight Connector for 1/2 Feeder Cable
(4.3/10-J1/2-2A)
| Interface According to：IEC 61169-54 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-6GHz VSWR： (DC-4GHz)≤1.10 (4-6GHz)≤1.2 PIM3：≤-160dBc Dielectric Withstanding Voltage： ≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-alloy plating Insulator：PTFE, NATURAL Contact PIN：Phosphor bronze,Ag plating
Environmental Temperature Range：-40℃～+85℃ Watertightness(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
