SPECIFICATION

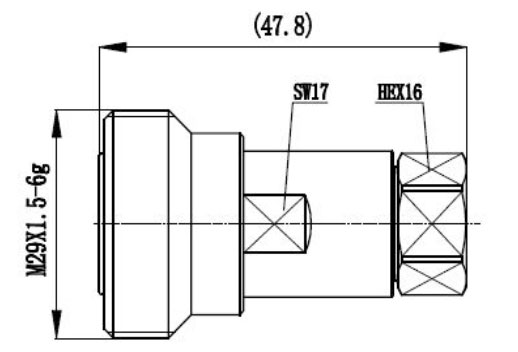

7/16 DIN Female Straight Connector Clamp for 3/8” Superflex Cable
(7/16-K3/8S)
| Interface According to：IEC 60169-4 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-6GHz VSWR：≤1.15(DC-3GHz), PIM3： ≤-158dBc Dielectric Withstanding Voltage：≥4000V RMS,50Hz,at sea level Dielectric Resistance：≥10000MΩ Contact Resistance：Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ Durability：Mating cycles ≥500 | Material and plating Body：Brass, Tri-Alloy plating Insulator：PTFE, NATURAL Contact PIN：Phosphor Bronze,Ag plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
