EIA(IF45/70/110)

EIA7-8-N-K

SPECIFICATION

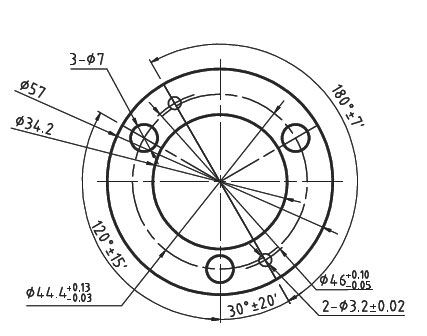

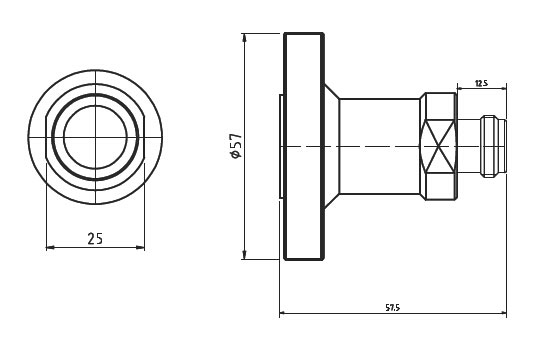

Adaptor 7/8 EIA Flange to N Female (EIA7/8-N-K)

Interface

According to：IEC339-2/IEC 60169-16

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-1GHz

VSWR：≤1.15

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Bronze,Ag plating

Environmental

Temperature Range：-40℃～+85℃

Watertightness(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
