SPECIFICATION

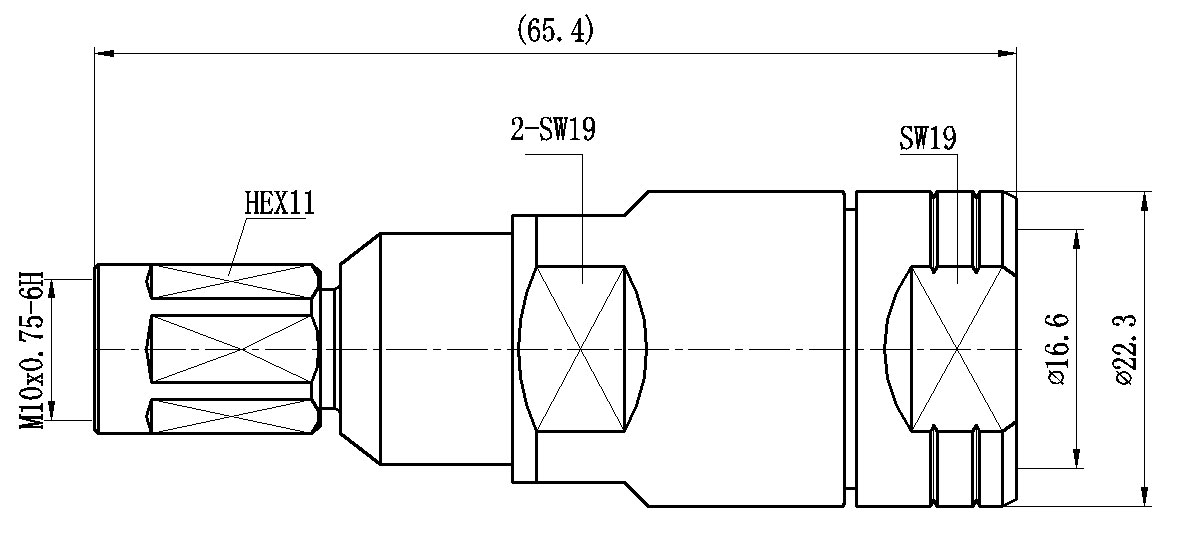

NEX10 Male Straight Connector Clamp for 1/2” Feeder Cable
(ZX-J1/2)
Interface According to:NEX10 | |
Electrical Performance Characteristic Impedance:50 ohm Frequency Range:DC-3GHz VSWR:≤1.15 PIM3:≤-160dBc Dielectric Withstanding Voltage:≥1000V RMS,50Hz,at sea level Dielectric Resistance:≥5000MΩ Durability:Mating cycles ≥500 | Material and plating Body:Brass, Tri-Alloy plating Insulator:PTFE, NATURAL Contact PIN:Brass,Ag plating
Environmental Temperature Range:-40℃~+85℃ Waterproof(1m water depth, 24hours):IP68 RoHS:Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
