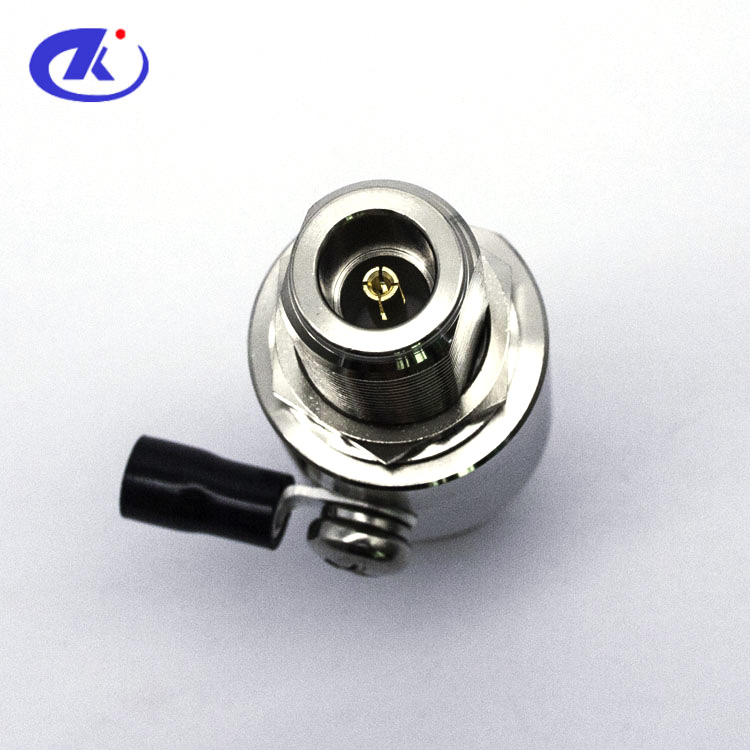

N type surge arrester Male to Female lightning arrester gas tube(N-JKYPT-4)

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.15

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ  Outer Contact ≤1.0mΩ

Peak Discharge Current(KA)：20

Initial Discharge Voltage(V)：230

Peak Power(W)：200

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Ni plating

Insulator：PTFE, NATURAL

Contact PIN：Brass/Tin-Phosphor Bronze ,Au plating

Environmental

Temperature Range： -40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS ：Full RoHS-Compliance
