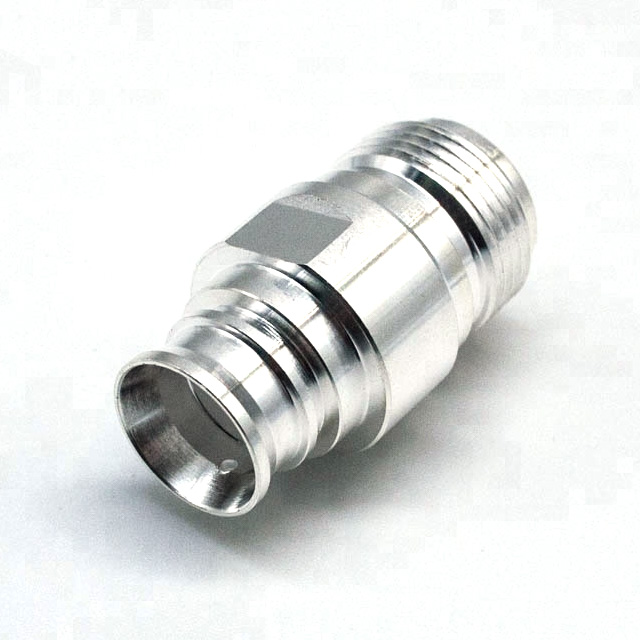

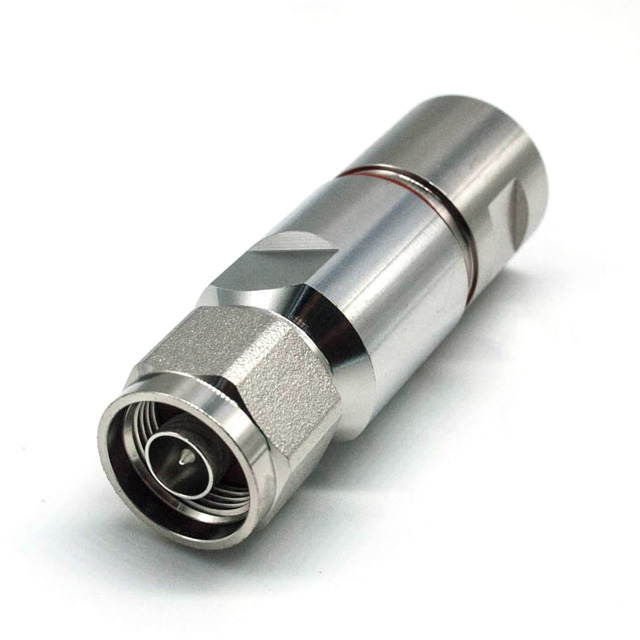

N

N connectors are available with 50 Ω and 75 Ω impedance. The frequency range extends to 11 GHz, depending on the connector and cable type. The screw-type coupling mechanism provides a sturdy and reliable connection. Connector styles are available for flexible, conformable, semi-rigid and corrugated cable types. Both crimp and clamp cable termination processes are used for this series. Special design techniques for this series of connectors have resulted in excellent levels of performance with regard go return loss (VSWR) and intermodulation distortion.







Standards:IEC60169-16

Electrical Characteristics


Contact resistance inner conductor:1.0 mΩ

Contact resistance outer conductor:1.0 mΩ

Insulation resistance : 5.0 GΩ

Voltage proof :2.5KV/50Hz

Impedance :50Ω

Return loss: Straight style :30.5 dB/1GHz; 23.1dB/6GHz

Return loss: Angle style :30.5 dB/1GHz; 20.8dB/6GHz

Working voltage :KV/50Hz

Frequency range up to:11GHz

Mechanical Characteristics


Recommended coupling torque:4-6Nm

Durability (mating cycles) :500

Material: spring contacts :Brass

Material: outer conductor:Brass

Material: other metal parts:Brass

Material: insulators:PTFE

Material: gaskets:Silicone

Plating: Inner conductor:Ag/Au

Plating: Outer conductor:Ni/Tri-alloy

Plating: Other metal parts:Ni/Tri-alloy
