1/2" Superflex Jumper, 7/16 DIN male straight to 4.3-10 Male Right Angle(7/16-H-J1/2-3-4.3/10-H-10-JW1/2-3M)

SPECIFICATION

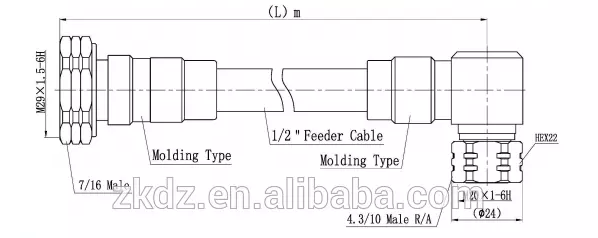

1/2" Superflex Jumper, 7/16 DIN male straight to 4.3-10 Male Right Angle

(7/16-H-J1/2-3-4.3/10-H-10-JW1/2-3M)

Interface

According to：IEC 60169-4/IEC 61169-54

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-3GHz

VSWR：≤1.15(DC-3GHz)

PIM3：≤-155dBc

Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Tri-Alloy plating

Insulator：PTFE, NATURAL

Contact PIN：Phosphor Bronze,Ag plating

Environmental

Temperature Range： -40℃～+85℃

Waterproof(1m water depth, 24hours)：IP68

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
