SPECIFICATION

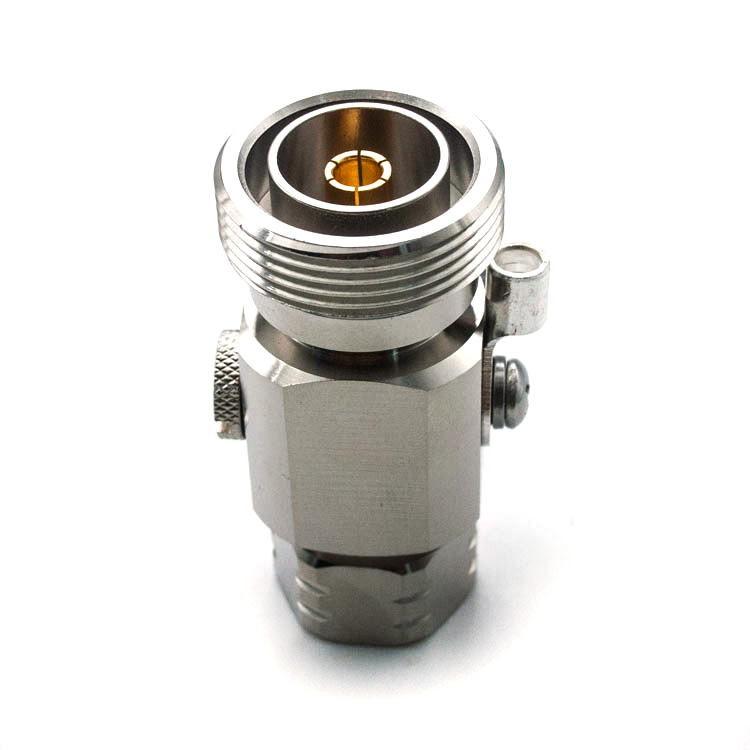

Lightning arrester DIN female to 4.3/10 male
(7/16/4.3/10-JKPT)
| Interface According to：IEC 61169-54/60169-4 | |
Electrical Performance Characteristic Impedance：50 ohm Frequency Range：DC-3GHz VSWR：≤1.25 Dielectric Withstanding Voltage：≥2500V RMS,50Hz,at sea level Dielectric Resistance：≥5000MΩ Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ Peak Discharge Current(KA)：10/20 Initial Discharge Voltage(V) ：230 Peak Power(W)：200 Durability：Mating cycles ≥500 | Material and plating Body：Brass, Ni plating Insulator：PTFE, NATURAL Contact PIN：Phosphor Bronze ,Au plating
Environmental Temperature Range：-40℃～+85℃ Waterproof(1m water depth, 24hours)：IP68 RoHS：Full RoHS-Compliance |
All products appearance, technical performance and electroplating can be customized according to customer requirements.
