N Female Straight Connector Clamp for 1/2” Superflex Cable(NF-1-2HR-2)

N Female Straight Connector Clamp for 1/2” Superflex Cable(NF-1-2HR-2)

SPECIFICATION

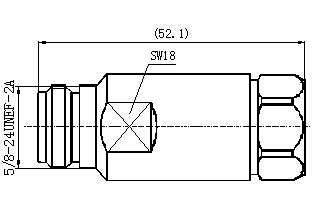

N Female Straight Connector Clamp for 1/2” Superflex Cable

(NF-1/2HR-1)




Interface

According to:IEC 60169-16

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-3GHz

VSWR:1.15

PIM3:-155dBc

Dielectric Withstanding Voltage:2500V RMS,50Hz,at sea level

Dielectric Resistance:5000MΩ

Contact Resistance:Center Contact 1.0mΩ Outer Contact 1.0mΩ

Durability:Mating cycles 500

Material and plating

Body:Brass, Tri-Alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor Bronze,Ag plating





Environmental

Temperature Range:-40℃+85℃

Waterproof(1m water depth, 24hours)P68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
